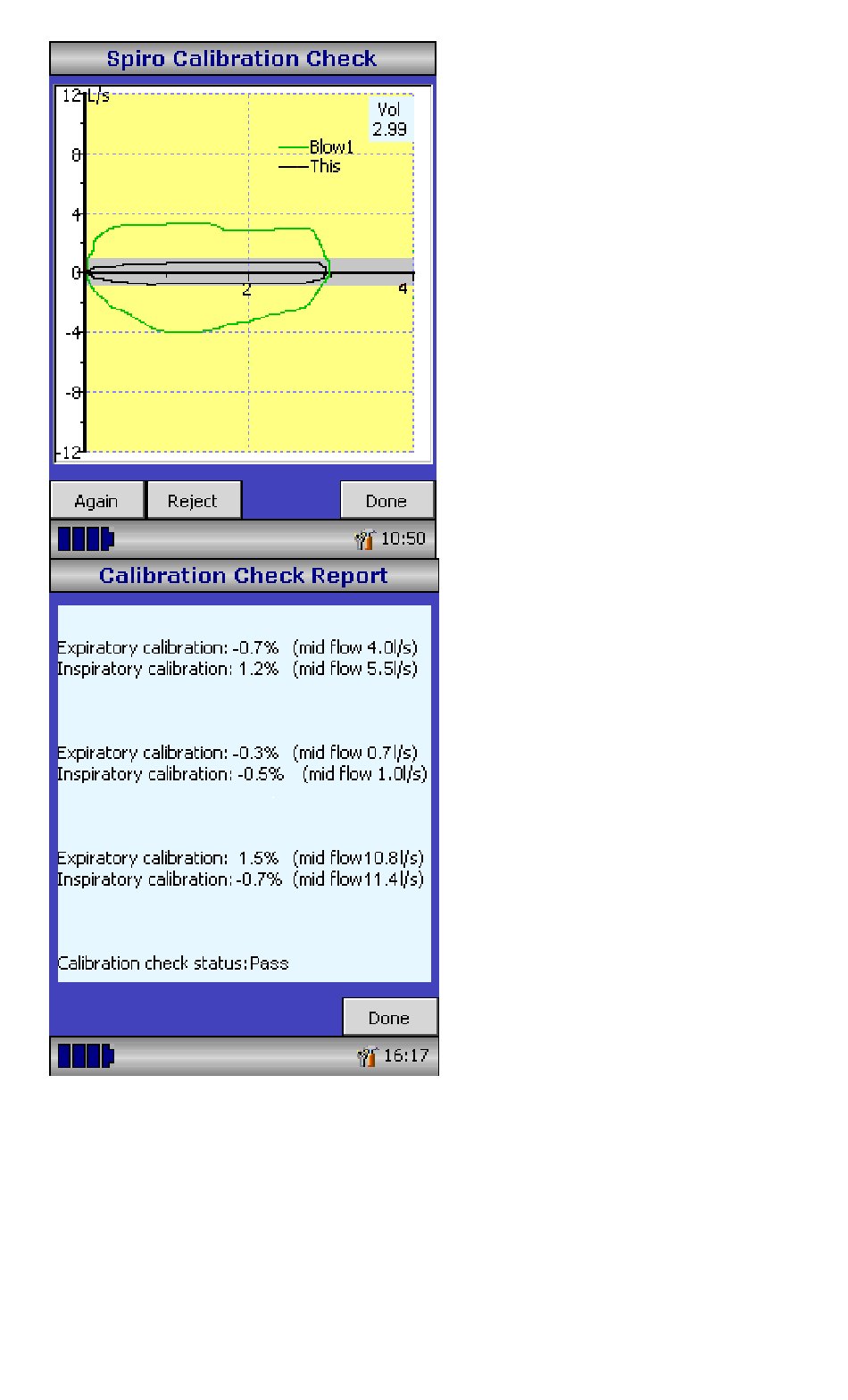

Select 'Again' to repeat the
calibration check (verification) at
a low flow rate.
Select 'Again' to repeat the
calibration check (verification) at
a high flow rate.
When a
(verification) at all three flow
rates has been completed select
'Done' to view the calibration
check
screen.
The calibration
expiration and inspiration at
each flow rate are displayed.
The calibration error should be
less than 3.5% (3% percent for
the MicroLoop and .5 percent
for the syringe).
error is shown, repeat the
procedure ensuring that the
syringe is emptied and filled in a
smooth manner without jerking
the handle. If an error greater
than 3.5% is still shown, inspect
the turbine
clean if necessary.
17
calibration
(verification)
error
If a greater
transducer
check
report
for
and
