Micro Direct MicroLoop Operating Manual page 13

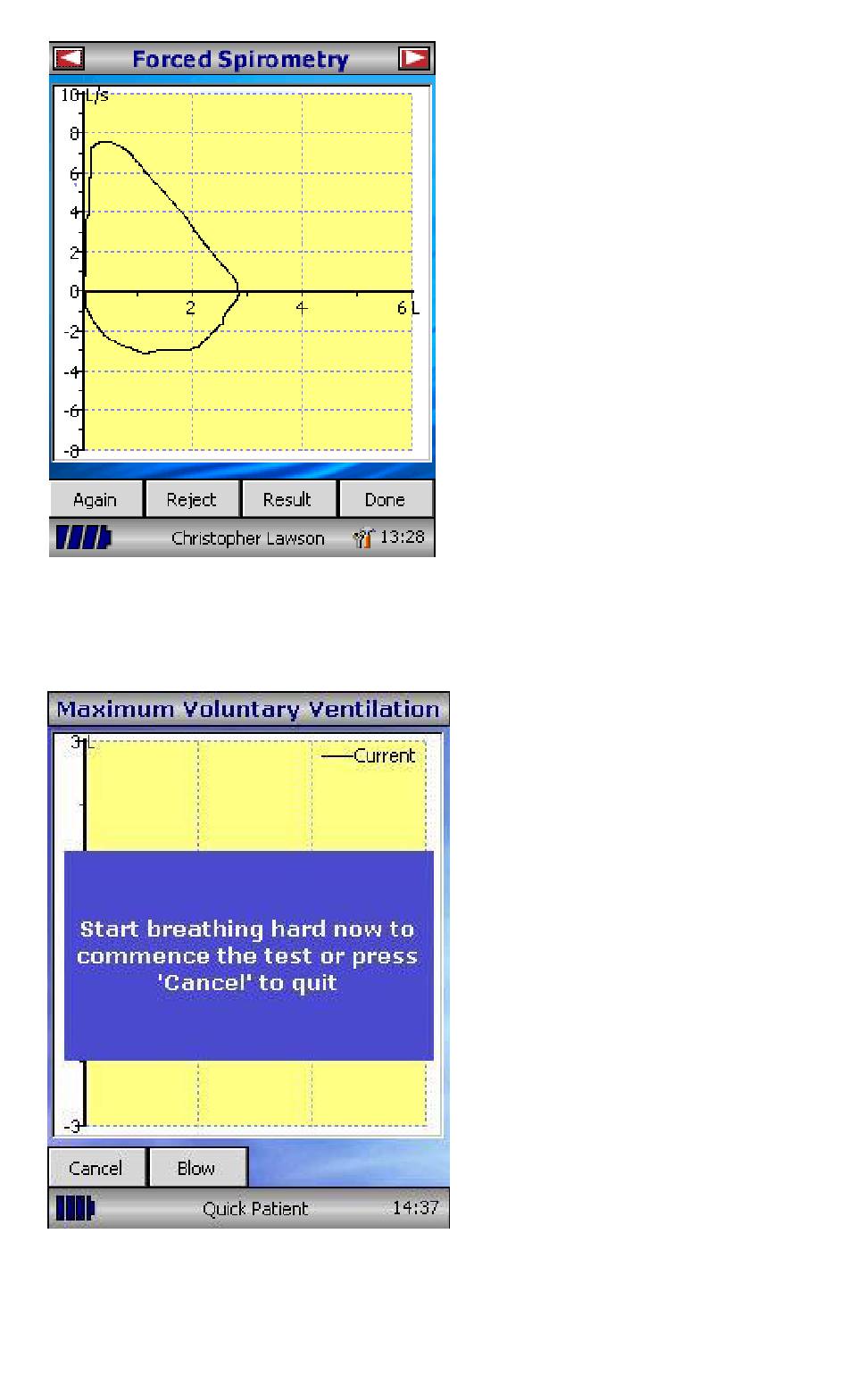

If forced spirometry is selected
the default
displayed.
changed by touching the arrows
at the
Flow/Volume, Volume/time or
child incentive default displays
may be selected using the
customize option from the main
menu.
When the spirometry maneuver
has been completed options to
repeat the test, reject the test,
and view
available.
At the end of the test options to
view results, save results, print
results, and to add notes will be
available from the spirometry
main menu.
Select the MVV icon to
select this mode of testing
and the display will instruct
the patient to start breathing
hard to commence the test.
It is recommended that the
patient perform 3 tidal
breathing maneuvers prior to
performing hard and fast
rapid breathing (required for
the MVV maneuver).
The patient should be
instructed to tidal breath.
The tidal breaths are
automatically detected prior
to commencing the MVV
maneuver.
10
graph
This may
top of the screen.
results will
will be
be
be
