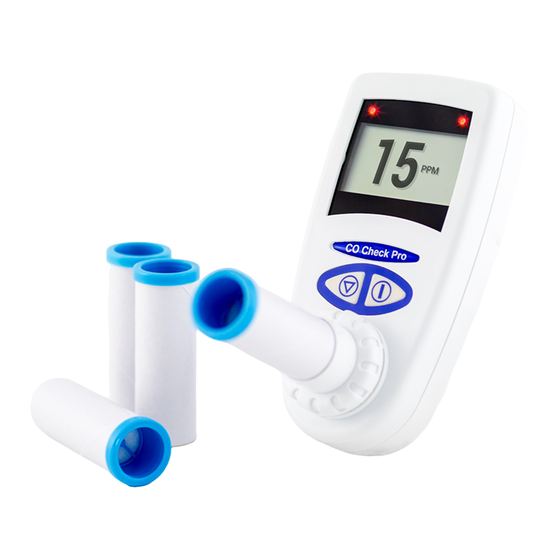

- Page 1 CO Check Pro Operating Manual Micro Direct, Inc 803 Webster Street Lewiston, ME 04240 800-588-3381 sales@mdspiro.com www.mdspiro.com Revision 10.1 January 2018...
-
Page 2: Table Of Contents
Table of Contents Package Contents ................2 Overview ....................3 Intended Use ..................4 Warning/Cautions ................. 6 User Menu .................... 7 Calibration ..................... 8 Set Environment Mode ............... 10 Set Breath Hold Time ................. 11 Set Light colors ................... 12 Battery Life.................. -
Page 3: Package Contents
Package Contents The CO Check Pro device is supplied with: 1. CO Check Pro (#CO20) 2. 22 mm plastic mouthpiece adapter* (#PSA1800) 3. 22 mm reducing connector for calibration (#MEC1007) 4. 9 Volt Battery 5. 5 Disposable cardboard mouthpieces (#3301) 6. -
Page 4: Overview
(CO) in the breath and calculating the percentage of carboxyhemoglobin (%COHb) in the blood. The CO Check Pro is designed to be used primarily as a screening tool for smoking cessation but it can also be used in physicians’ offices, emergency departments and fire-fighting services. -
Page 5: Intended Use
Intended Use The CO Check Pro is used for the monitoring of carbon monoxide (CO) in an adult’s exhaled breath. The CO Check Pro is for use in smoking cessation programs and can be used for the screening of CO poisoning and smoke inhalation. - Page 6 The maximum reading the CO Check Pro can measure is 99 PPM. Any reading above that will be displayed as - - (which means it’s over the range). Colored lights are there to represent and provide a visual display of the resulting PPM reading.
-
Page 7: Warning/Cautions
CO is collected in the last portion of the breath (alveolar breath). The CO Check Pro will beep and display the final reading in PPM (parts million). By pressing the Select Function key , the reading scrolls to %COHb (carboxyhemoglobin). -
Page 8: User Menu
Please only use accessories supplied by Micro Direct, Inc. to ensure the device performs as intended. The CO Check Pro is a screening device. Blood tests and examinations are required to validate possible CO poisoning. The CO Check does not protect property or persons, and should not be used for industrial or domestic purposes (heating, faulty fireplace). -
Page 9: Calibration
3 seconds to confirm. Calibration The device should be recalibrated at least once every six months. Calibration gas can be purchased from Micro Direct, Inc. (See Supplies for full ordering details on page 15). To calibrate the device, perform the following steps:... - Page 10 5. The device will countdown from 15 to 0 and then will display the calibration icon. 6. Attach the reducing connector to the CO Check Pro and turn the regulator knob fully counter-clockwise until knob will not turn any further. This will supply gas to the CO Check Pro at approximately 0.25 L/min.
-
Page 11: Set Environment Mode
It is advisable to accept the calibration even though it displays 20 ppm (i.e. the ideal reading). This will reset the ‘calibration due’ timer. Turn OFF the device if the calibration was incorrectly performed. Do not press the Select Function key To prevent incorrect calibration, only the readings within the range of 16-24 can be calibrated. -
Page 12: Set Breath Hold Time
The first option is highlighted. To select ‘Environment Mode’, press the until ‘Environment Mode’ is highlighted. To select, press Function key the Select Function key for at least 3 seconds to confirm. The ‘Environment Mode’ screen will appear and the options are ‘On’, ‘Off’ and ‘Exit’. -
Page 13: Set Light Colors
seconds to confirm the required time and the display will go back to the ‘User Menu’ screen. None 5 Seconds 10 Seconds 15 Seconds 20 Seconds 25 Seconds 30 Seconds Set Light colors To enter the ‘User Menu’, press the ON/OFF Power key and the Select Function Key simultaneously. -
Page 14: Battery Life
Battery Life The 9V battery should provide at least 30 hours of continuous use. When the battery is low, the battery low icon will be displayed for three seconds when the device is switched on. The device can still be used, but it is advisable to replace the battery. It is recommended to use an Alkaline battery. -
Page 15: Cleaning
Cleaning with products that contain alcohol may result in permanent contamination of the sensor. Servicing If your device requires servicing or repair, please contact Micro Direct, Inc. directly. The CO Sensor should be replaced every two years. Email: service@mdspiro.com... -
Page 16: Supplies
Mouthpiece Adapter w/valve 48-70 Protex Disinfectant Wipe CS100 Replacement of Fuel Cell and Battery GC01 CO Guide chart (CO Check Pro only) * Calibration kit contains tank of CO calibration gas, regulator and tubing. Specifications Gas Detected Carbon Monoxide Concentration Range... -
Page 17: Symbols
Symbols In accordance with Directive 93/42/EEC 0120 Type B Device To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. -
Page 18: Important Information Regarding Electromagnetic Compatibility
Important information regarding Electromagnetic Compatibility Medical devices may be susceptible to electromagnetic interference from other devices such as PC’s and mobile telephones. Electromagnetic interference may impair the operation of the medical device and could create a potentially unsafe situation. In order to regulate the requirements for EMC, to limit unsafe product situations, BS EN 60601-1-2 standard has been implemented. - Page 19 customer or the user should assure that it is used in such an environment Emissions Test Compliance Electromagnetic environment guidance level RF Emissions CISPR 11 Group 1 The CO Check uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
- Page 20 Radiated RF 3 V/m 80 MHz to 2.5 ] V/m IEC 61000-4-3 d = [3.5 ] √ P 80 MHz to 800 MHz d = [ 7 ] √ P 800 MHz to 2.5 GHz ……E Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d...
-
Page 21: Appendix A - Co Check And Smoking Cessation
One single breath of expiration into the CO Check Pro will give instant results in PPM and %COHB. Built-in color light indicators will also give an instant visual display.
