601PDTAP Power Drive

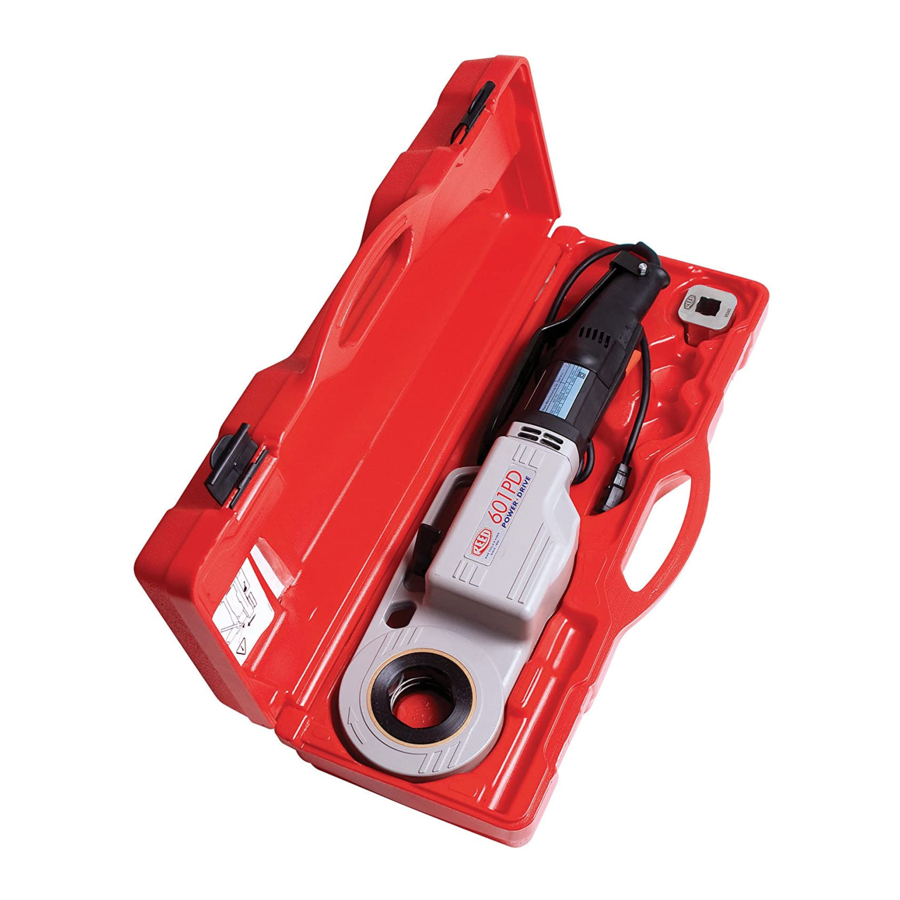

REED 601PDTAP Power Drive is a hand-held, porta-
ble, electric, heavy-duty power drive which provides
power for drilling and tapping machines — specifical-
ly the Reed TM1100, DM1100, DM2100, CDTM1100,
and CDTM2100.
Machine made in Spain. Handle and adapter made in USA.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO FOLLOW ALL INSTRUCTION LISTED
INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE,
AND/OR SERIOUS PERSONAL INJURY.
PHONE: 800-666-3691 or +1-814-452-3691
1120-50512
REED MANUFACTURING
1425 West Eighth St. Erie, PA 16502 USA
www.reedmfgco.com
• Add power to drilling and tapping jobs, and save
hours of hand-cranking
• Power drive with custom 13/16" adapter to fit
REED and other tapping/drilling machines
• Durable, lightweight unit includes carrying case for
tool protection
• Electric powered, 110-120V, 50-60 Hz
SAVE THESE
INSTRUCTIONS!
reedsales@reedmfgco.com
601PDTAP
1
Advertisement
Related Manuals for REED 601PDTAP
Summary of Contents for REED 601PDTAP
- Page 1 601PDTAP 601PDTAP Power Drive REED 601PDTAP Power Drive is a hand-held, porta- • Add power to drilling and tapping jobs, and save hours of hand-cranking ble, electric, heavy-duty power drive which provides • Power drive with custom 13/16” adapter to fit power for drilling and tapping machines — specifical- REED and other tapping/drilling machines ly the Reed TM1100, DM1100, DM2100, CDTM1100, • Durable, lightweight unit includes carrying case for and CDTM2100. tool protection • Electric powered, 110-120V, 50-60 Hz Machine made in Spain. Handle and adapter made in USA. WARNING! SAVE THESE READ AND UNDERSTAND ALL INSTRUCTIONS. INSTRUCTIONS! FAILURE TO FOLLOW ALL INSTRUCTION LISTED INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE, AND/OR SERIOUS PERSONAL INJURY.
- Page 2 601PDTAP Power Drive Reed Manufacturing WORK AREA SAFETY 5. Do not overreach. Keep proper footing and balance at all 1. Keep your work area clean and well lit. Cluttered benches times. Proper footing and balance enable better control of the and dark areas invite accidents. tool in unexpected situations. 2. Do not operate power tools in explosive atmospheres, 6.
- Page 3 601PDTAP Power Drive Reed Manufacturing • Gear case is cast aluminum. Motor housing and handle Read and follow the safety labels on the machine. are plastic. Know the location and functions of all controls before using the • Handle support is steel. tool. • Machine weight: 17 lbs (8 kg) Switch Safety OPERATING INSTRUCTIONS The MOMENTARY CONTACT SWITCH is for your safety. It lets WARNING: OPERATOR SHOULD BE THOROUGHLY FAMIL- you shut off the motor by removing your finger. If clothing should IAR WITH SAFETY INFORMATION BEFORE ATTEMPTING TO become caught in the tool, it will continue to wind up. Because this OPERATE THIS EQUIPMENT.
- Page 4 REED factory. All warranty claims are limited to repair or replacement, at the option of REED, at no charge to the customer. REED is not liable for any damage of any sort, including incidental and consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary by state, province or country.
