700PD Power Drive

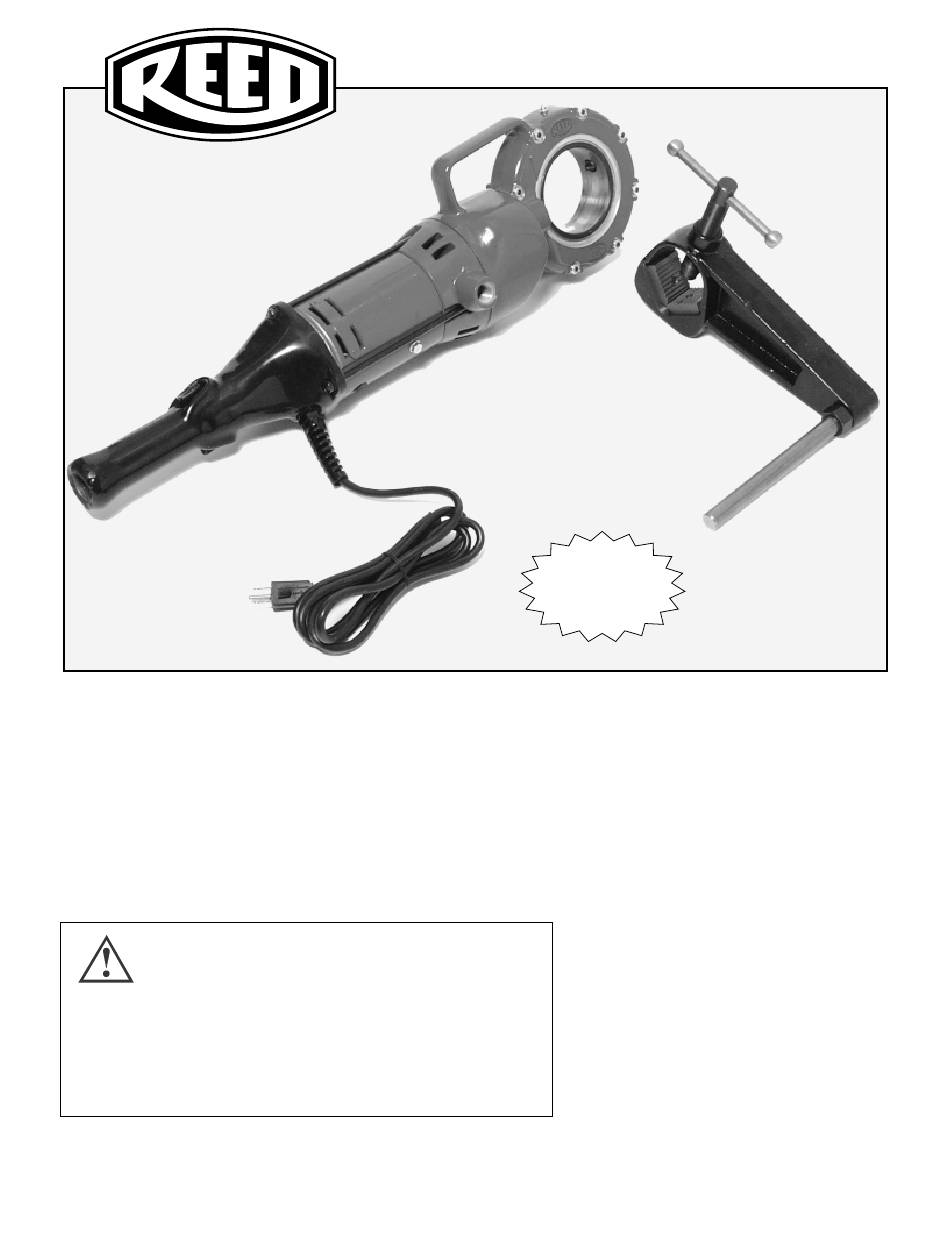

The REED 700PD Power Drive is a portable,
electric-motor-driven, heavy-duty power drive
which provides power for threading pipe and
conduit up to 2" (50 mm) in diameter.
700V Safety Arm (#05275) included
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO FOLLOW ALL INSTRUCTION LISTED
INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE,
AND/OR SERIOUS PERSONAL INJURY.
PHONE: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
REED MANUFACTURING COMPANY
1425 West Eighth St.
www.reedmfgco.com
CSA
approved for
the United States
and Canada
• Automate the pipe threading process
• Dropheads available separately in sizes
from 1/2" to 2".
SAVE THESE
INSTRUCTIONS!
Erie, PA 16502 USA
Catalog No. - 700PD
Item Code #05270
1208-58887
1
Advertisement
Related Manuals for REED 700PD Power Drive
Summary of Contents for REED 700PD Power Drive
- Page 1 Canada Catalog No. - 700PD 700PD Power Drive Item Code #05270 The REED 700PD Power Drive is a portable, • Automate the pipe threading process electric-motor-driven, heavy-duty power drive • Dropheads available separately in sizes which provides power for threading pipe and from 1/2”...
- Page 2 Reed Manufacturing Co. 700PD Power Drive WORK AREA 4. Remove adjusting keys or switches before turning the tool 1. Keep your work area clean and well lit. Cluttered benches on. A wrench or a key that is left attached to a rotating part of and dark areas invite accidents.
- Page 3 • 120 Volts, AC (50 - 60 Hz), 1/2 horsepower, double insulated. NOTE: If any maintenance is required other than brush replacement, • Momentary contact switch, spring return to OFF position. take power drive to an authorized REED warranty repair center or return • Mechanical forward/reverse switch: 25 RPM. to factory.
- Page 4 R12DNPSM1 1/2 05684 1 1/2” NPSM DHR122NPSM 05695 2” NPSM R12DNPSM2 05685 2” NPSM R12+ THREADER SETS Wiring Diagram (115/230V) Find R12+ Threader Sets in the Reed catalog or www.reedmfgco.com. Standard Color Code Green Yellow Line Blue Black Motor White White European Color Code Green &...
-
Page 5: Replacement Parts
Replacement Parts 700PD Parts List Ref. No. Description Item Code Qty. Used Ref. No. Description Item Code Qty. Used Gear Case 98800 Name Plate 98833 Fan Housing 98801 Fastener, Drive Pin 30133 Motor Housing 98802 Field Screw 98848 Handle 98803 Field 98825 Coverplate... - Page 6 Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY DAMAGE OF ANY SORT, INCLUDING INCIDENTAL AND CON- SEQUENTIAL DAMAGES.
