REED 5401TMSO Operator's Manual

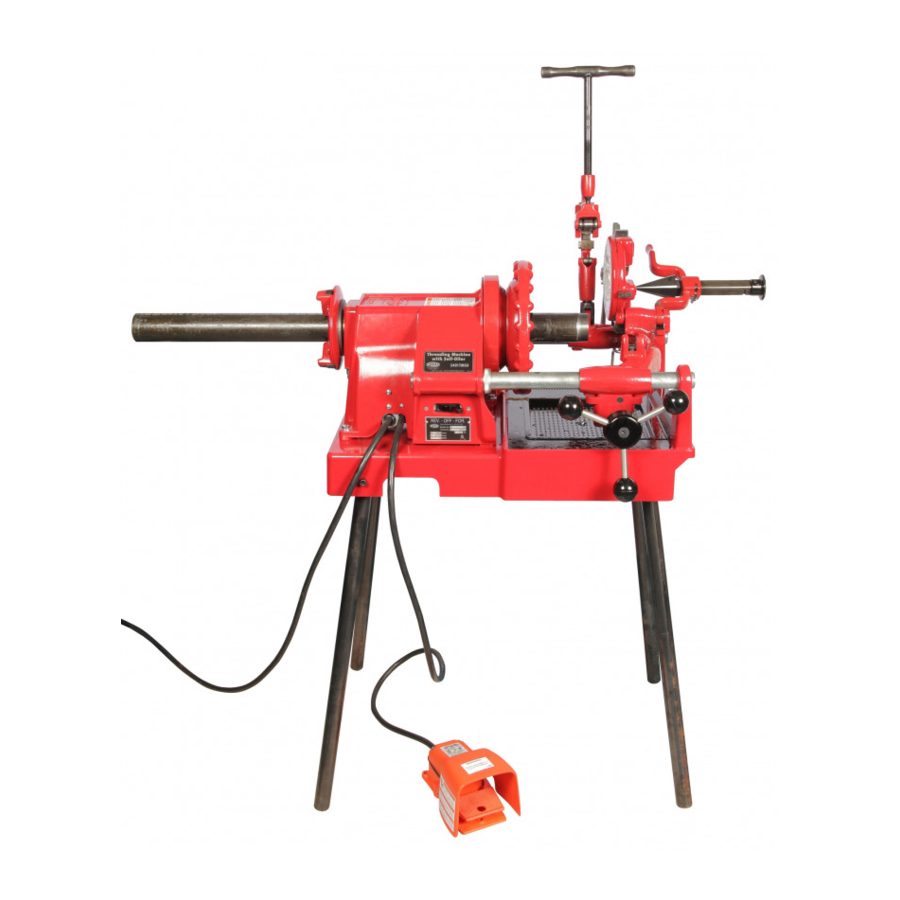

Threading machine with self-oiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5401TMSO Threading Machine
with Self-Oiler
OPERATOR'S MANUAL
The electric-motor-driven REED 5401TMSO Threading Machine with
Self Oiler centers and chucks pipe and conduit and rotates it while
cutting, threading, and reaming operations are performed.
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED
INSIDE MAY RESULT IN ELECTRIC SHOCK, FIRE,
AND/OR SERIOUS PERSONAL INJURY.
1425 West 8th St.
0419-55401
5401TMSO Threading Machine with Self-Oiler
REED MANUFACTURING COMPANY
P.O. Box 1321, Erie, Pa 16512 USA
• Covers 120V and 240V models.
• Includes Footswitch.
• Footswitch cord is 5' 6" (1676 mm) long.
Phone: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
Operator's Manual
The 120V models
are approved to the
latest United States
and CSA Canadian
standards.
SAVE THESE
INSTRUCTIONS!
1
0419-55401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5401TMSO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED 5401TMSO

Summary of Contents for REED 5401TMSO

  • Page 1 5401TMSO Threading Machine with Self-Oiler OPERATOR’S MANUAL • Covers 120V and 240V models. The electric-motor-driven REED 5401TMSO Threading Machine with Self Oiler centers and chucks pipe and conduit and rotates it while • Includes Footswitch. cutting, threading, and reaming operations are performed.

  • Page 2: Table Of Contents

    5401TMSO Carriage With Handwheel ...............14 5401TMSO Pipe Cutter ..................15 5401TMSO Reamer ....................16 5401TMSO (120V) Electrical Assembly...............17 5401TMSO (120V) Wiring Schematic and Wiring Diagram ........17 5401TMSO (240V) Electrical Assembly...............18 5401TMSO (240V) Wiring Schematic and Wiring Diagram .........18 REED Warranty ....................18 0419-55401...

  • Page 3: General Safety Information

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual GENERAL SAFETY INFORMATION 6. Connect the tool to an AC power supply that matches the name plate specification. Incorrect voltage WARNING: READ AND UNDERSTAND ALL INSTRUC- supply can cause electrical shock or burns.

  • Page 4: Tool Use And Care

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual SPECIFIC SAFETY INFORMATION TOOL USE AND CARE 1. Use clamp or other practical way to secure and The Operator’s Manual contains specific safety information support the workpiece to a stable platform. Holding and instructions for your protection against serious injuries...

  • Page 5: Threading Machine Safety

    DESCRIPTION Follow instructions in Operator’s Manual on machine uses. Do not use threading machine for other jobs including hole The REED 5401TMSO Threading Machine with Self-Oiler drilling, winch turning, and making/breaking fittings. Other is an electric-motor-driven threading machine which centers uses may increase the risk of injury.

  • Page 6: Operation Using Threading Machine Mounted Tools

    A clockwise rotation snap Foot spin releases jaws. Switch Figure 1 5401TMSO Threading machine with Self Oiler Cutting Pipe with 05366 Cutter 1. Swing reamer and threader back to out-of-way position. Cutter 2. Move pipe cutter down onto pipe and move carriage...

  • Page 7: Reaming Pipe With 05308 Reamer

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual Reaming Pipe with 05308 Reamer 1. Swing die head and cutter back to out-of-the-way position (Figure 3). 2. Move reamer arm down into reaming position. Reamer in position 3. Extend reamer by pressing latch and sliding knob toward pipe until latch engages bar.

  • Page 8: Installing Dies In R811 Universal Die Head

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual Lubrication Installing Dies in the R811 Universal Proper lubrication is essential to trouble-free operation and Die Head long life of power drive. The Universal Die Head requires one set of 4 Universal Dies to thread pipe ranging from 1/8"...

  • Page 9: Self-Oiling System

    Insert each of the 4 legs into the leg pocket on the bottom of the 5401TMSO. After inserting each leg, snug the bolt to 7. Unplug the motor plug 95454 from the switch box.

  • Page 10: Parts Diagrams

    BODY BEARINGS AND HARDWARE INCLUDES: HAND WHEEL 95403 89150 89150 35450 GREASE FITTING 9, 10, 11, 14, 39, 40, 41, 45, 46, 95569 RIDGID is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company ® 0419-55401...

  • Page 11: 5401Tmso Threading Machine Base

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual 5401TMSO Threading Machine Base Parts List Ref. No. Description Item Code Qty. Used Oiler Base 95395 Top Chip Collection Tray 45392 3 Bottom Chip Collection Tray 45391 Poly Tubing 95380 Hose Assembly 45376...

  • Page 12: 5401Tmso (120V) Motor Assembly

    95563 PIPE NIPPLE 45373 45370 48816 90° ELBOW (POLY/PIPE) 45372 — NAME PLATE 95456 OIL SEAL 45596 85920 5/Pk DRIVE SCREW 30133 RIDGID is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company ® 0419-55401...

  • Page 13: 5401Tmso (240V) Motor Assembly

    45374 48816 45370 PIPE NIPPLE 45373 — NAME PLATE 95582 90° ELBOW (POLY/PIPE) 45372 DRIVE SCREW 85920 5/Pk 30133 OIL SEAL 45596 RIDGID is a registered trademark of RIDGID, Inc. and is not associated with Reed Manufacturing Company ® 0419-55401...

  • Page 14: 5401Tmso Carriage With Handwheel

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual CARRIAGE #05367 5401TMSO Carriage with Handwheel Parts List Ref. No. Description Item Code Qty. Used Carriage Body 95381 Stop Bolt Assembly 95881 Ball Retainer Kit 95883 Handwheel Bracket 95394 Idler Shaft 95387 Handwheel Shaft...

  • Page 15: 5401Tmso Pipe Cutter

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual 5401TMSOCUTTER #05366 5401TMSO Pipe Cutter Parts List Ref. No. Description Item Code Qty. Used Body 95488 Screw Assembly 95383 Slide 95489 Roller 95490 Cutter Wheel 03612* 95491 Cutter Wheel Pin 93310 Yoke 95468...

  • Page 16: 5401Tmso Reamer

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual Reamer #05308 Parts List Ref. No. Description Item Code Qty. Used 95487 Reamer 95492 95493 Knob 95494 95495 Hinge Pin 95496 Latch 95497 1/4 x 3/4” Pin 30004 Spring 95451 0419-55401...

  • Page 17: 5401Tmso (120V) Electrical Assembly

    5401TMSO Threading Machine with Self-Oiler Operator’s Manual 5401TMSO (120 Volt) Electrical Assembly Parts List Item Code Qty. Ridgid # Ref. No. Description — SWITCH BOX 95430 SWITCH 95557 44505 — SCREW 30106 — 95556 OUTLET JUMPER ASSY. — RING TONGUE TERMINAL 98859 —...

  • Page 18: 5401Tmso (240V) Electrical Assembly

    REED Limited Warranty REED will repair or replace tools with any defects due to faulty materials or workmanship for one (1) year or five (5) years from the date of purchase, as applicable. This warranty does not cover part failure due to tool abuse, misuse, or damage caused where repairs or modifications have been made or attempted by non REED authorized repair techni cians.
