Summary of Contents for Palmer PGA-05

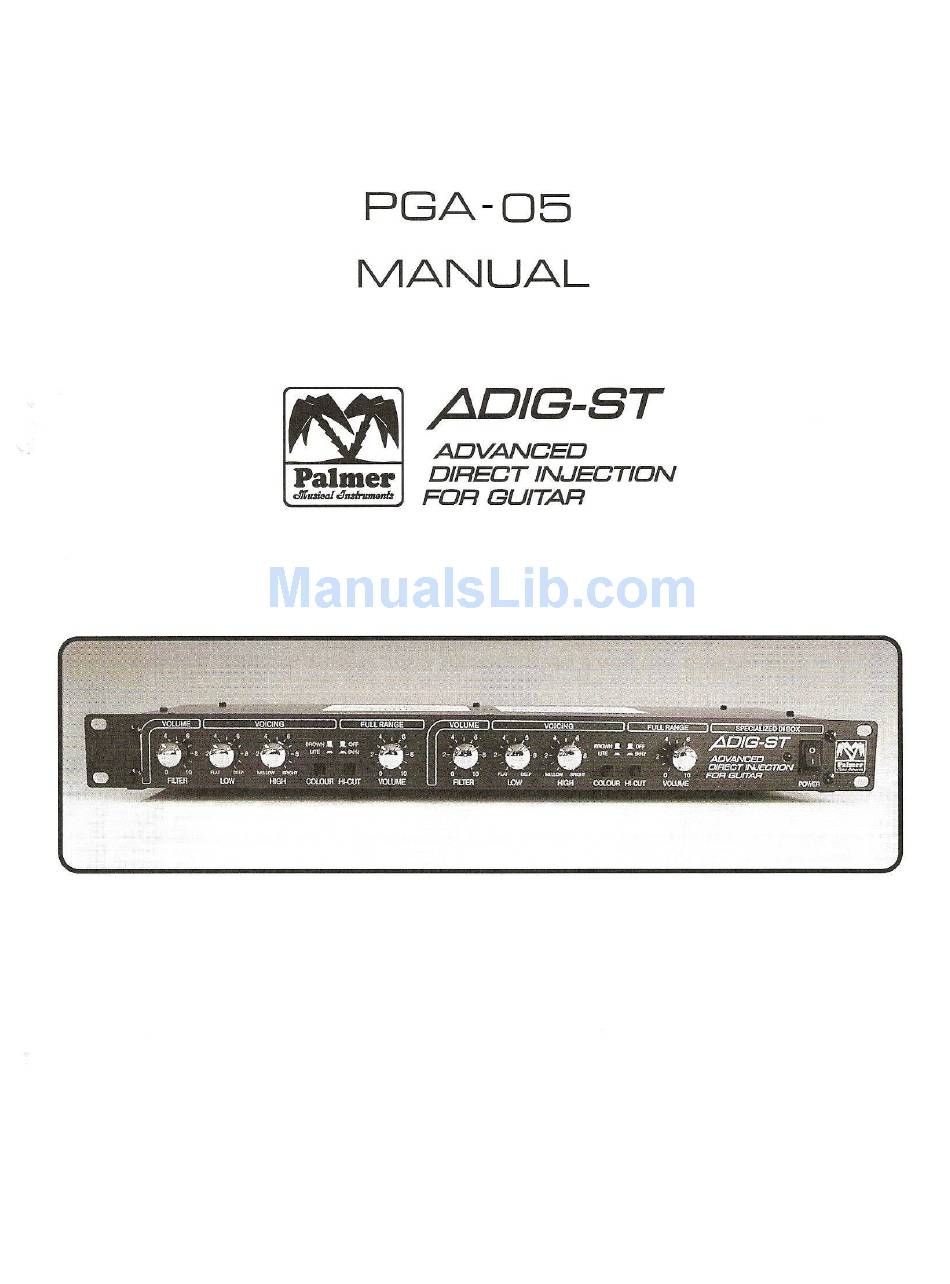

- Page 1 Warning! The PGA-05 does not contain a Load Box. When used with a tube amplifier, there MUST be a load connected to the amplifier output. See section - Guitar Amplifier and PGA-05.

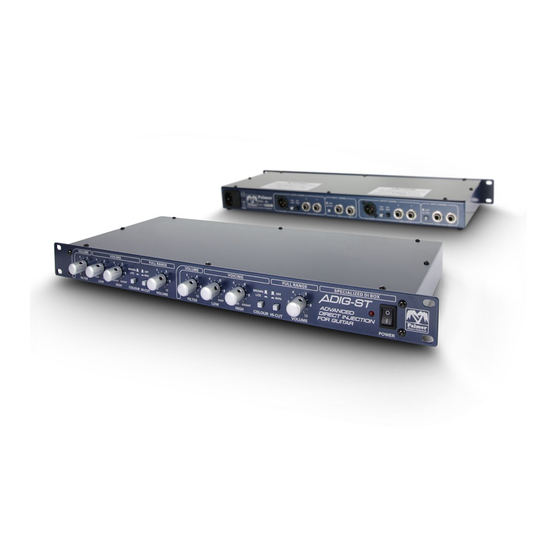

- Page 2 ADIG-ST Advanced Direct Injection for Guitar-Stereo BACKGROUND The PGA-05 is one of a special series devoted to the direct injection of guitar amplification. A DI box should normally transfer a linear signal through its circuitry. The guitar amplifier’s loudspeaker, however plays a very important role in forming the electrified sound, and therefore must be taken into account when replacing the miked-up sound.
- Page 3 Connect a speaker cable (NOT an instrument cable) from the speaker output of the amplifier to the INPUT of the PGA-05. The switch beside the input socket should now be set to SPKS. A tube amplifier must only be operated with an output load resistance. This means a loudspeaker box must be hooked up to the THRU jack.
- Page 4 PGA-05 is so high that it not affect the normal amplified sound in any way. Tip! If you are not using both channels of the PGA-05, link the THRU-CHANNEL 1 socket to the INPUT- CHANNEL 2, then you can use the controls of both channels to optimize the separate “clean” and “distorted”...
- Page 5 Copyrighted & Manufactured by: Palmer, a Division of Adam Hall GmBH Rudolf Diesel-Strasse 5, D61267 Neu-Anspach, Germany Tel.: +49 (0) 6081 94190 Fax: +49 (0) 6081 43280 Email: palmer@adamhall.com USA and CANADA Distributor: JAMS Audio, NASHVILLE, TN. www.PALMERGEAR.com PHONE: TOLL FREE 1-866-380-5267, FAX: 1-866 -389-5267 E-MAIL: jamsaudio@palmergear.com...
