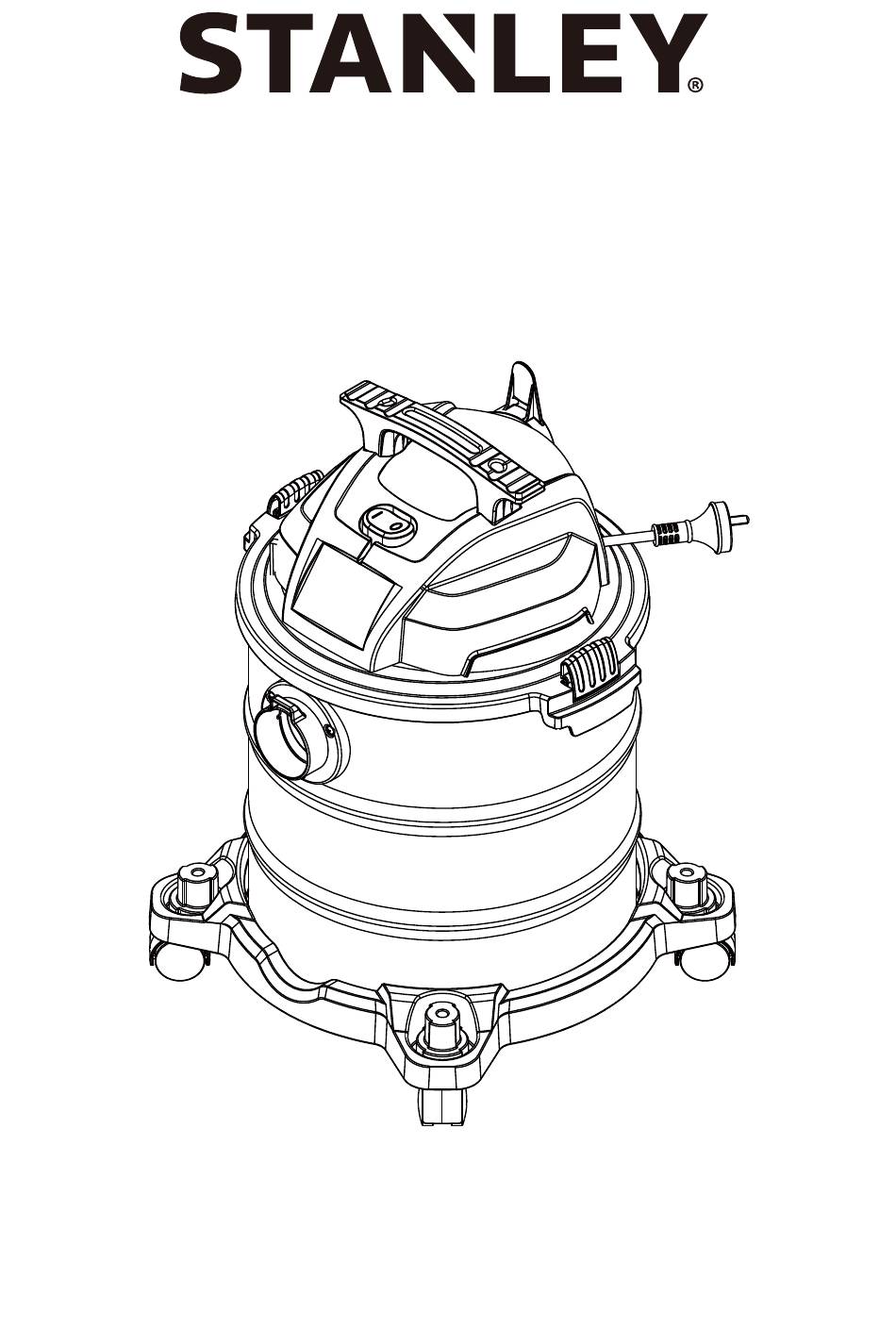

- Page 1 23 LITRE WET/DRY VACUUM OWNER'S MANUAL IMPORTANT: READ THIS OPERATOR’S MANUAL BEFORE USING! Alton Industry Ltd. Group - All Rights Reserved...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications------------------------------------------------------------------------------------------------------------3 Package Contents------------------------------------------------------------------------------------------------------4 Safety Information------------------------------------------------------------------------------------------------------5 Operating Instructions-------------------------------------------------------------------------------------------------7 Care and Maintenance ----------------------------------------------------------------------------------------------10 Troubleshooting--------------------------------------------------------------------------------------------------------10 Exploded View and Parts List--------------------------------------------------------------------------------------11 Warranty-----------------------------------------------------------------------------------------------------------------12 To order replacement bag, filters or parts contact; Customer Service AUS 1300 660 457 NZ 0800 474 876 email: service.group@smga.com.au INTRODUCTION Dear Customer, Thank you for purchasing this wet/dry vacuum which has passed through our extensive... -
Page 3: Specifications
PRODUCT SPECIFICATIONS Power 240 V / 50 Hz / 1200W Motor By-Pass, Single Stage Tank Capacity 23 Litre Hose 1.8 m x 3.2 cm Power cord HVV05-F 2Cx0.75mm² / 3m WARNING: Use only extension cords that are rated for outdoor use. Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards. -
Page 4: Package Contents
PACKAGE CONTENTS Part Description Part Description Part No. Qty Handle 1.8 m x 3.2 cm hose 13-3300 Power switch Extension wand 13-1502A Lid latches Floor nozzle 13-1570 Vacuum port Crevice nozzle 13-1508 Dust tank Gulper nozzle 13-1588 Base Foam filter 19-1600 Blowing port Disposable filter bag... -
Page 5: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS & GROUNDING INSTRUCTIONS When using an electrical appliance, basic precautions should be always followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. ATTENTION: Read all safety rules carefully before attempting to operate. Retain for future reference. DANGER: Never operate this unit when flammable materials or vapors are present because electrical devices produce arcs or sparks that can cause a fire or explosion. - Page 6 SAFETY INFORMATION 24. This appliance is provided with double insulation. Use only identical replacement parts. See instructions for servicing double insulated appliances. 25. Unplug before connecting the hose, nozzle and the like. WARNING SERVICING OF DOUBLE-INSULATED WET/DRY VAC In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added.
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS UNPACKING & SET-UP SUMMARY 1. Pull lid latches in an outward motion, remove power head and some accessories that may have been shipped in the tank. 2. Attach the casters according to the instruction in this manual. 3. Before replacing power head, refer to this manual to ensure you have the proper filters installed for your cleaning operation. - Page 8 OPERATING INSTRUCTIONS DRY PICK-UP 1. The filter must always be in correct position to reduce the risk of leaks and possible damage to vac. Make sure that the filter is completely covering the filter cage. Make sure there are no gaps between the filter and the lid.
- Page 9 OPERATING INSTRUCTIONS EMPTY THE TANK WARNING: To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank. 1. Remove the power head assembly of the wet/dry vac by pulling outward on the lid clips located on each side of the vac.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE FILTER REPLACEMENT WARNING: To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter. The filter should be cleaned often to maintain peak vac performance. IMPORTANT: To avoid damage to the blower wheel and motor, always reinstall the reusable filter before using the vac for dry pickups and always reinstall the foam filter before using the vac for wet pickups. -
Page 11: Exploded View And Parts List
EXPLODED VIEW / PARTS LIST PART DESCRIPTION PART DESCRIPTION Handle Middle frame Pallet components Power switch Dust tank Top cover Vacuum port assembly Thermal baffle Motor Base Caster Power cord Lid latches... -
Page 12: Warranty
WARRANTY EXPRESS WARRANTY STATEMENT WET/DRY VACUUM You are not required to do anything to register the wet/dry vacuum purchase. Please attach the purchase receipt to this manual and ensure both are kept safe. We hope you enjoy the new wet/dry vacuum , and if you have any problems call customer service on the above phone numbers. - Page 13 WARRANTY COMPLETE WARRANTY STATEMENT – WET/DRY VACUUM As soon as you have purchased the wet/dry vacuum, we recommend that you check to make sure it is intact and that you read the operating instructions carefully before using it. The purchase receipt for this product is to be retained and must be presented if making a claim under the terms of the Smart Marketing Group (SMG) warranty.
- Page 14 33-35 Lionel Road, Mt. Waverley Victoria 3149, Australia. Stanley® and are trademarks of Stanley Black & Decker, Inc., or its affiliates and are used under license by Alton Industry Ltd. Group The Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A http://www.stanleyblackanddecker.com...
