PRE-INSTALLATION GUIDE
QPix™ 400 Series
Welcome to the family of Molecular
Devices® QPix™ 420, QPix™ 450 and QPix™
460 System users. This document provides
you with the necessary information to
prepare your facility for the installation of
your new QPix 400 Series system.
This document will cover the
following topics:
• Environment requirements
• Space and table requirements
• Power requirements
• Facility receiving requirements
• Utility, Water, Other Service, and
Safety Precautions and Hazard
Identification sections
• Service and Support
Environment requirements
Indoor use only
Temperature 10°C to 40°C
Humidity 20 to 80% non-condensing
Altitude Up to 2000M
Mains supply +/- 10% Rated Voltage
Transient Installation Category
overvoltage (Overvoltage category) II
Rated pollution Pollution degree 2
Space and table requirements
The size and weight for the instrument
portion of the QPix 400 Series are provided
below. The instrument should be accessible
on the front, sides, and back of the
instrument to allow service access to the
filters and other preventative maintenance
replacement parts.
The QPix 450 or 460 comes with its own
table, but the QPix 420 is optional. It is highly
recommended to use the Molecular Device
table designated for the QPix 420. 3rd party

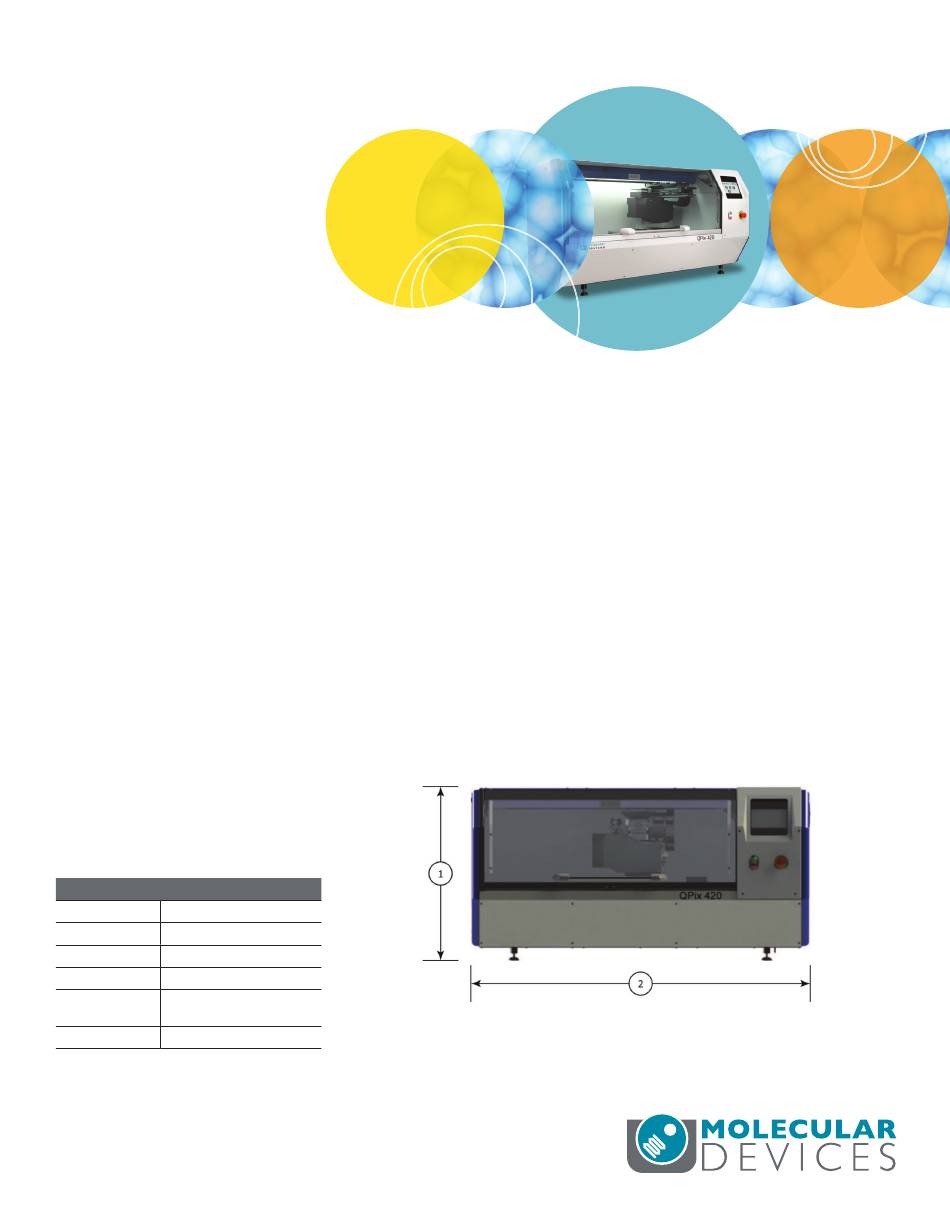

Front view of the QPix 420 Colony Picking Systems with dimensions. (1) Height of instrument: 78 cm
(30.7 in.). (2) Width of instrument: 144 cm (56.7 in.).
tables will have to be at least as sturdy
and have the appropriate clamps in order
to prevent the instrument from excessive
shaking.
• QPix 420 instrument Weight: 184 kg
(405.7 lbs)
• QPix 450/460Instrument Weight: 250 kg
(551.2 lbs)
In the following drawings, the dimensions
are show in centimeters and inches.
