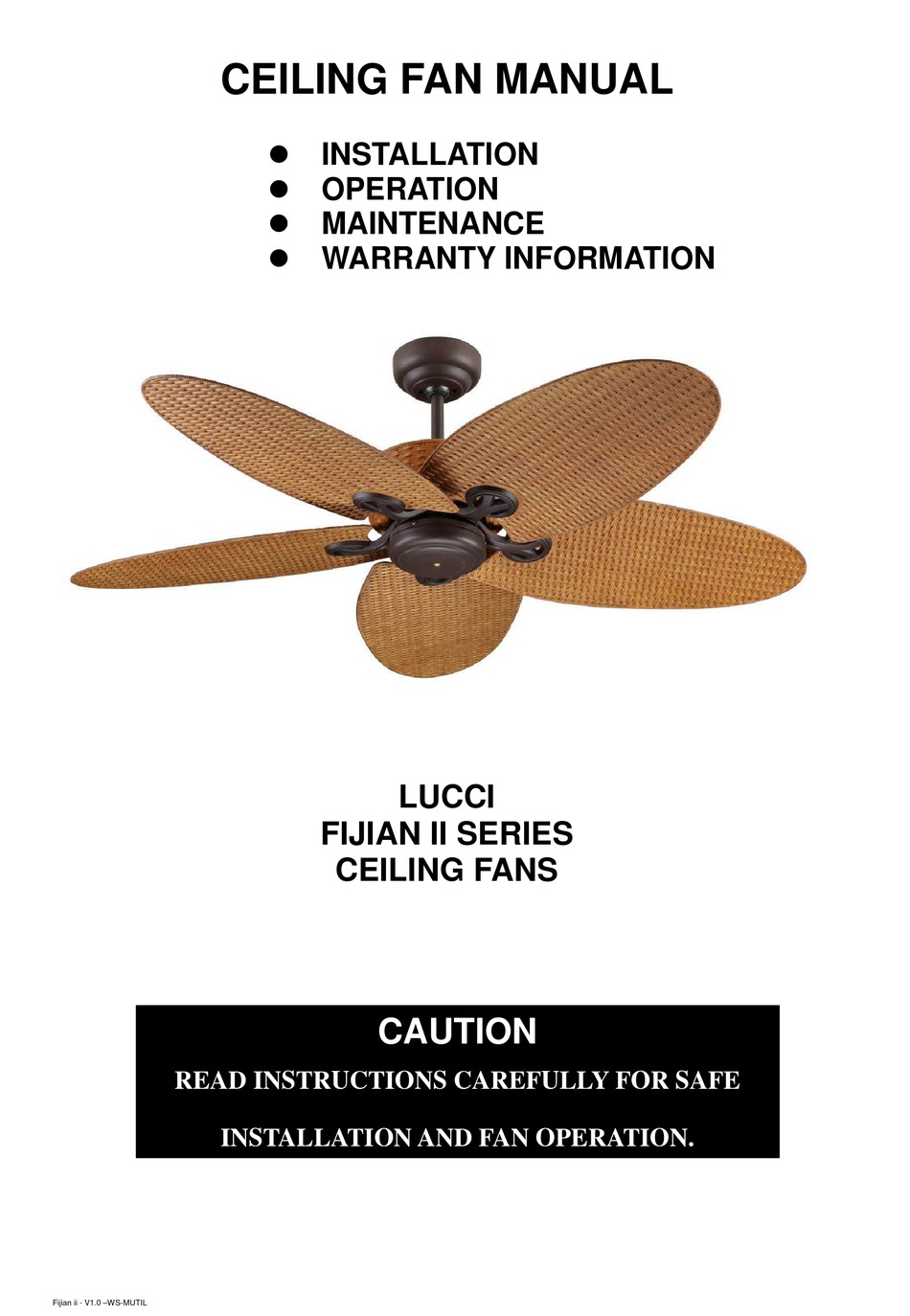

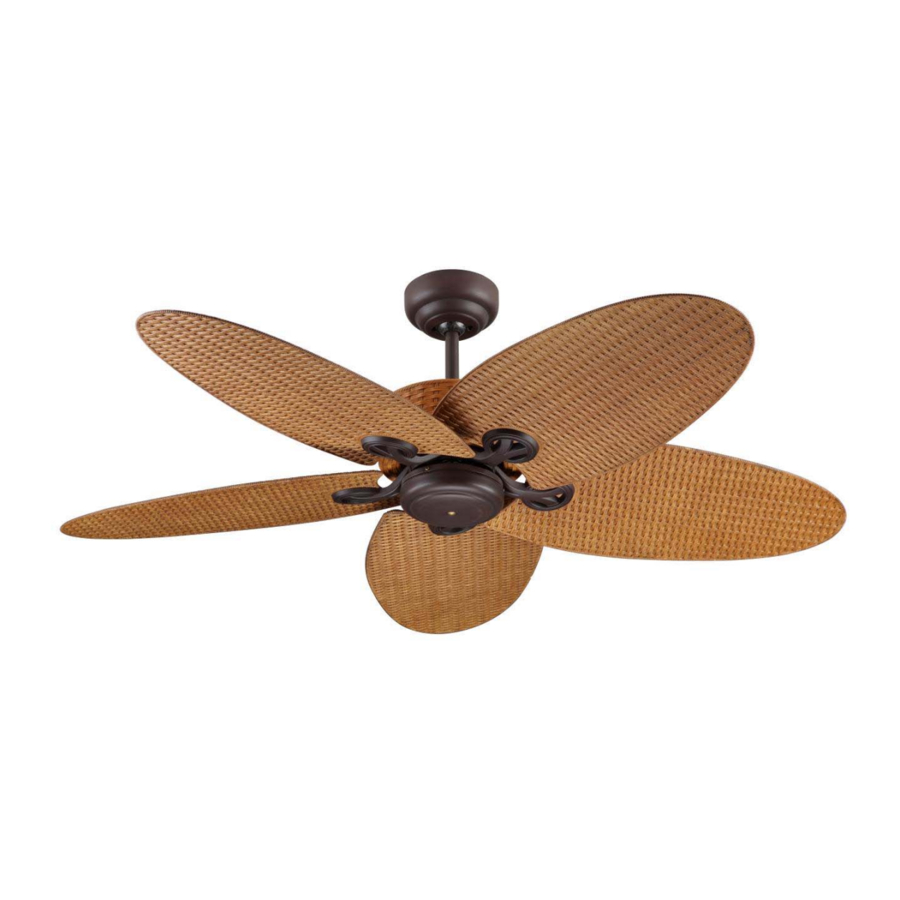

- Page 1 CEILING FAN MANUAL INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION LUCCI FIJIAN II SERIES CEILING FANS CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. Fijian ii - V1.0 –WS-MUTIL...
- Page 2 CONTENTS Installation Instruction Manual ..................3...
-
Page 3: Congratulations On Your Purchase
CONGRATULATIONS ON YOUR PURCHASE Congratulations on purchasing this quality Lucci product. To ensure correct function and safety, please read and save all instructions carefully before using the product. SAFETY PRECAUTIONS The information contained in the following pages has been prepared to ensure you of trouble-free operation of your Ceiling Fan . -
Page 4: Before Installation
BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer to Fig 1. Fig. 1 Down rod x 1 Blade screws x 16 Blade holder x 5 Motor screws x 11 Blade x 5 Wooden screws x 2 Mounting bracket x 1 Wall plugs for screw x 2 Canopy x 1... -
Page 5: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest objects or walls. Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 40KG, with two long screws provided. -
Page 6: Hanging The Fan
HANGING THE FAN Install the down rod 1. Loose ball joint. 2. Feed down rod through ceiling canopy. 3. Insert the motor wires through down rod, and then secure ball joint back to down rod. 4. Insert down rod to hanger (see Fig.4), line up hanger holes with down rod holes and insert bolt. -
Page 7: Electrical Wiring Diagram
ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. Fig. 8 NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is use with the ceiling fan. -
Page 8: Finishing The Installation
FINISHING THE INSTALLATION After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that they are not damaged during this step. -
Page 9: Using Your Ceiling Fan
USING YOUR CEILING FAN FAN WALL CONTROL Your ceiling fan is controlled via the rotary switch (fan) and rocker switch (light) via the wall controller. Refer to below figures: SWITCH POSITION DESCRIPTION (ARROW POINTING) OFF – FAN IS OFF 1 – FAN IS “ON”, SPEED = HIGH 2 –... -
Page 10: After Installation
REVERSING SWITCH Your ceiling can operate either summer or winter mode. SUMMER Mode: The reverse switch shall be in the “down” (SUMMER) position to make the fan rotate in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. WINTER Mode: The reverse switch shall be in the “up”... -
Page 11: Technical Information
and frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. This is normal. Please allow a 24-hour “breaking -in” period, most noises associated with a new fan disappear during the time. The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as hearing the motor run –...
