WARNING Failure to read and follow the operator's
manual and all operating instructions can
result in death, bodily injury, and/or property
damage.
WARNING Fuel and its vapors are flammable and
explosive. Turn off engine and wait at least
2 minutes before refueling. Let spilled fuel
evaporate before starting engine. Always allow
space for fuel expansion.
WARNING High pressure water spray can cut
through skin. Never spray people or animals,
as injury can result. Spray gun traps high
water pressure, even when engine is stopped
and water is disconnected. ALWAYS point spray gun in
safe direction, press red button and squeeze spray gun
trigger, to release high pressure, every time you stop
engine.
You will need:
• Utility knife
• Unleaded fuel
• Garden hose, 50 ft. (15 m) or less
Unpack pressure washer
1.
Remove everything from carton except pressure washer.
2.
Open carton completely by cutting each corner from top to bottom.
3.
Ensure you have all included items prior to assembly.
If items are damaged or missing, call 1-800-743-4115.
Assemble pressure washer
1.
Place handle (A) onto handle supports (B) connected to main
unit. Make sure holes (C) in handle align with holes (C) on handle
supports.
1
NOTICE It may be necessary to move the handle supports from side to
side in order to align the handle so it will slide over the handle supports.
2.
Insert carriage bolts (D) through holes from back of unit and attach a
plastic knob (E) from front of unit. Tighten by hand.
3.
Place accessory tray (F) over holes (G) on handle (viewing from
front of unit). Push the tree clips (H) into the holes until they sit flat
against the accessory tray.
3
® nozzles and other supplied
4.
Insert multi–colored Project Pro
accessories in spaces provided in accessory tray. See Operator's
Manual, How to Use Accessory Tray.
Add engine oil and fuel
NOTICE You MUST properly fill engine with oil before attempting to
start pressure washer.
NOTICE DO NOT use E85 fuel.
NOTICE DO NOT mix oil with fuel.
1.
Move pressure washer outdoors to a flat, level surface.
2.
Clean area around oil fill and remove oil fill cap/dipstick (J).
3.
Using oil funnel (optional), slowly pour contents of provided bottle
of oil into oil fill opening.
4.
Replace and fully tighten oil fill cap/dipstick.
5.
Clean area around fuel fill cap, remove fuel cap (K).
6.
Slowly add regular unleaded fuel to fuel tank. Be careful not
to overfill. Allow about 1.5 in. (4 cm) (L) of tank space for fuel
expansion.
5
7.
Replace fuel cap. Let any spilled fuel evaporate before starting
engine.
Copyright © 2009. All rights reserved. No part of this material may be reproduced or transmitted in any form without the express written permission of Briggs & Stratton Power Products Group, LLC.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
*This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

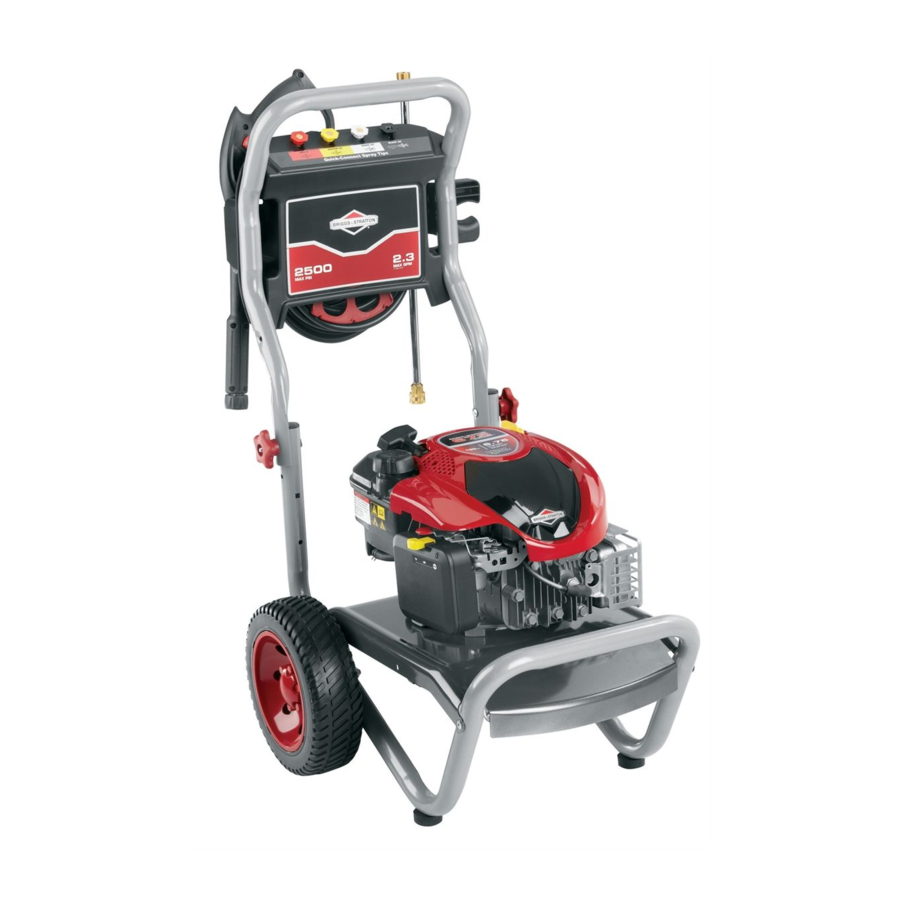

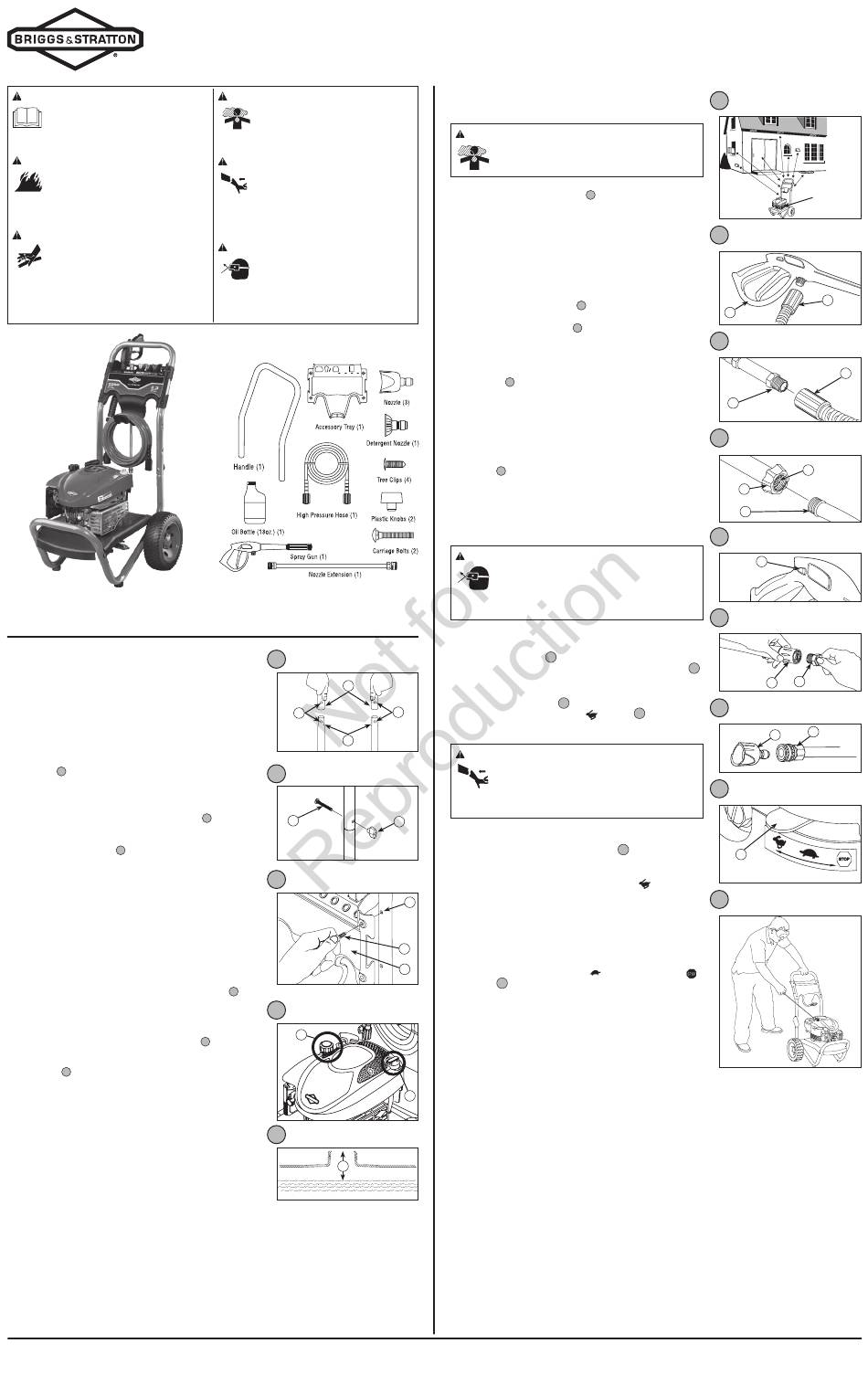

Quick Start Guide
2500 MAX PSI* Pressure Washer
WARNING Outdoor use ONLY. DO NOT start or run
engine indoors or in an enclosed area, even
if windows and doors are open. Running
engines give off carbon monoxide, an
odorless, poison gas that can cause nausea, fainting or
death.
WARNING Starter cord kickback (rapid retraction)
can result in bodily injury. NEVER pull
starter cord without first relieving spray
gun pressure. Pull starter cord slowly until
resistance is felt, then pull rapidly. Kickback will pull
hand and arm toward engine faster than you can let go.
High pressure can cause spray gun to kickback. Hold
spray gun with both hands during use.
WARNING Risk of eye injury. Spray can splash
back or propel objects. Always wear indirect
vented (chemical splash) safety goggles,
marked to comply with ANSI Z87.1 when
using or in vicinity of this equipment. NEVER substitute
safety glasses or dry-condition goggles for indirect
vented safety goggles.
Items Included:
Operator's Manual (not shown)
• Safety goggles (indirect vented type)
1
A
C
B
2
2
D
3
4
4
K
4
5
L
Move pressure washer
to safe operating location
WARNING Outdoor use ONLY. DO NOT start or run engine indoors
or in an enclosed area, even if windows and doors are open.
Running engines give off carbon monoxide, an odorless,
poison gas that can cause nausea, fainting or death.
1.
Move pressure washer outdoors to a flat, level surface. Running
engines give off carbon monoxide.
2.
Keep at least 5 ft. (1.5 m) clearance on all sides of pressure washer
including overhead to reduce the risk of exhaust heat or exhaust
gases igniting nearby combustible material.
Connect spray gun
NOTICE Remove and discard the shipping caps from the pump's high
pressure outlet and water inlet before attaching hoses.
1.
Uncoil high pressure hose (M) and attach one end of hose to base of
spray gun (N). Tighten by hand.
2.
Attach other end of high pressure hose (M) to high pressure outlet
(P) on pump. Tighten by hand.
Connect water supply
1.
Before connecting garden hose to water inlet, inspect inlet
screen (Q).
9
NOTICE If inlet screen is damaged or missing, DO NOT use pressure
washer, call 1-800-743-4115.
2.
Clean screen if it contains debris or have it replaced if damaged. DO
NOT run pressure washer if inlet screen is damaged.
3.
Run cold water through garden hose for 30 seconds to clean out any
debris. Garden hose length must not exceed 50 ft. (15 m). Turn off
water supply and attach garden hose (R) to water inlet (S). Tighten
by hand.
9
Start pressure washer
NOTICE You MUST connect and turn on water supply fully before
starting engine.
1.
Put on safety goggles.
WARNING Risk of eye injury. Spray can splash back or propel
objects. Always wear indirect vented (chemical splash)
safety goggles, marked to comply with ANSI Z87.1 when
using or in vicinity of this equipment. NEVER substitute
safety glasses or dry-condition goggles for indirect vented safety
goggles.
2.
Turn on water supply.
3.
Press red button (T) on spray gun and pull trigger until water comes
out in a steady stream.
10
4.
Attach quick connect wand (U) to spray gun (N). Tighten by hand.
5.
Choose nozzle (V) you want to use, pull back on collar nozzle
extension (U), insert nozzle and release collar. Tug on nozzle to make
sure it is securely in place.
C
6.
Move throttle lever (W) to "FAST" (
NOTICE This unit is equipped with a ReadyStart ® engine. A
ReadyStart ® engine means there is no priming or choking required.
WARNING Starter cord kickback (rapid retraction) can result in
bodily injury. NEVER pull starter cord without first relieving
spray gun pressure. Pull starter cord slowly until resistance
is felt, then pull rapidly. Kickback will pull hand and arm
toward engine faster than you can let go. High pressure can cause
spray gun to kickback. Hold spray gun with both hands during use.
E
7.
When starting engine, position yourself as recommended below
and grasp starter grip handle and pull slowly until you feel some
resistance. Then pull rapidly to start engine.
8.
Return starter grip handle slowly. DO NOT let rope "snap back"
against starter.
NOTICE Always keep the throttle lever in the "FAST" (
operating the pressure washer.
G
9.
Point gun toward surface to be cleaned. Press red button and pull
trigger to begin spraying.
Stop pressure washer
H
1.
Let engine idle for 2 minutes.
F
2.
Move throttle lever (W) to "SLOW" (
position.
13
3.
Turn off water supply.
4.
Point spray gun in safe direction, push trigger lock, and squeeze
spray gun trigger to relieve retained high water pressure.
5.
Disconnect garden hose from pump.
6.
Disconnect high pressure hose from pump and gun for storage. For
long term storage instructions, see operator's manual.
7.
Remove safety goggles.
J
Have Questions?
Do not return to store. We can help.
Call Customer Service Toll-Free 1-800-743-4115
Or visit our website BRIGGSandSTRATTON.COM
6
6
7
7
8
8
9
10
11
11
12
12
) position.
13
13
14
) position when
14
) position, then "STOP" ( )
Exhaust Port
Pointed away from
dwelling openings
M
N
M
P
Q
S
R
T
U
N
U
V
w
