Children shall not play with the appliance. Cleaning and user maintenance

shall not be made by children without supervision.

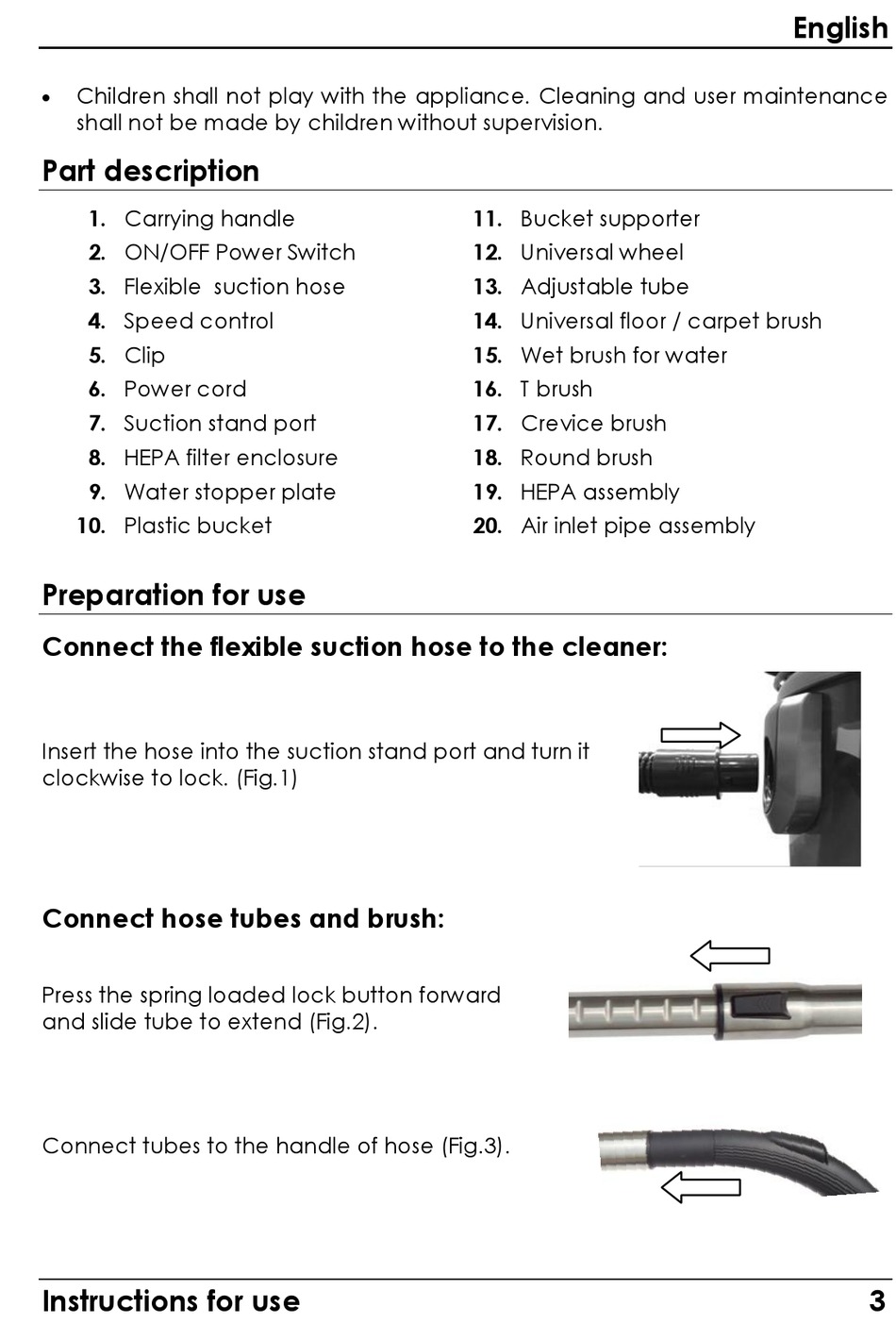

Part description

1. Carrying handle
2. ON/OFF Power Switch
3. Flexible suction hose
4. Speed control
5. Clip
6. Power cord
7. Suction stand port
8. HEPA filter enclosure
9. Water stopper plate
10. Plastic bucket

Preparation for use

Connect the flexible suction hose to the cleaner:
Insert the hose into the suction stand port and turn it
clockwise to lock. (Fig.1)
Connect hose tubes and brush:
Press the spring loaded lock button forward
and slide tube to extend (Fig.2).
Connect tubes to the handle of hose (Fig.3).
Instructions for use
11. Bucket supporter
12. Universal wheel
13. Adjustable tube
14. Universal floor / carpet brush
15. Wet brush for water
16. T brush
17. Crevice brush
18. Round brush
19. HEPA assembly
20. Air inlet pipe assembly
English
3
