Summary of Contents for Behringer UL2000M

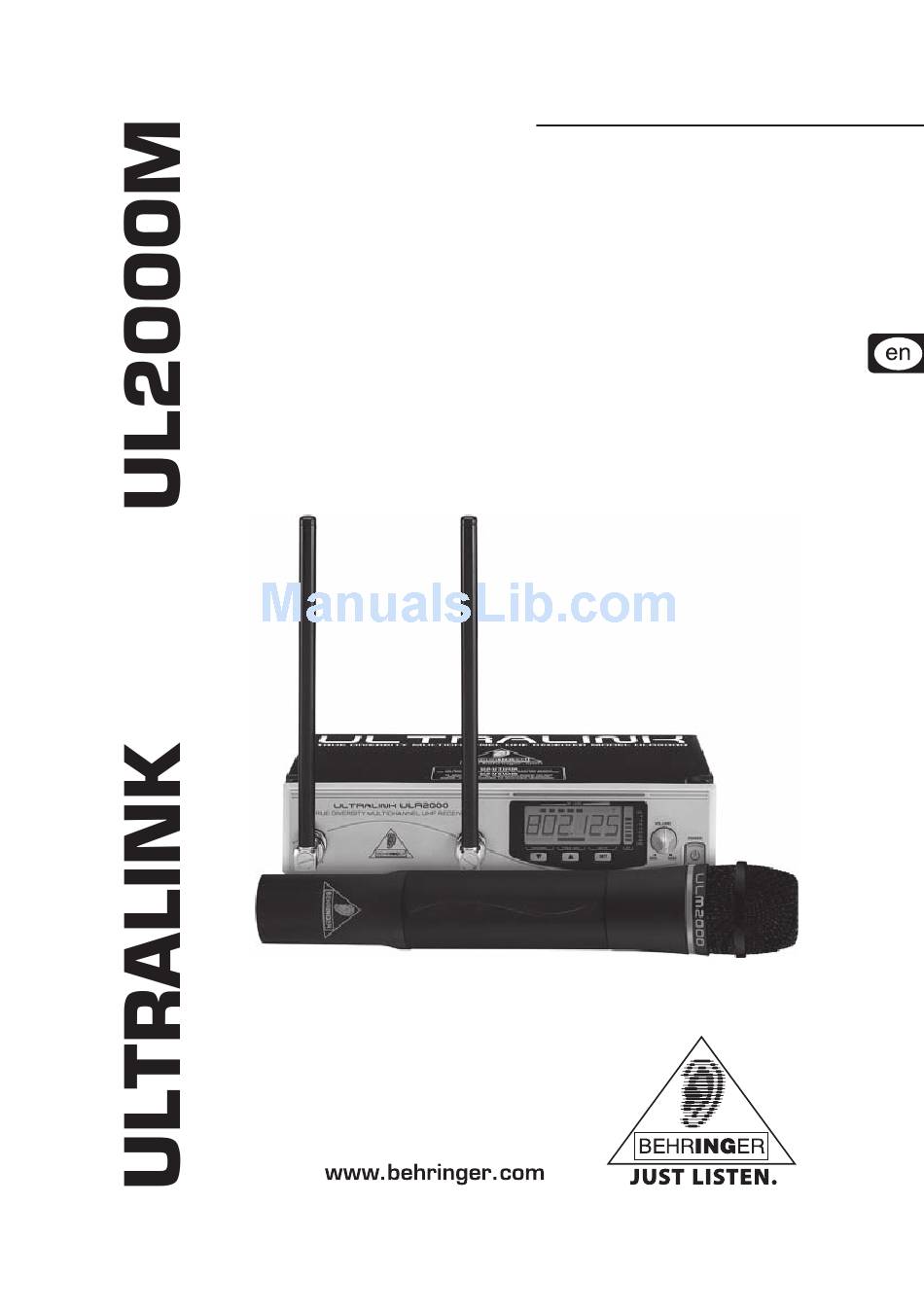

- Page 1 User’s manual A50-13413-00005...
-
Page 2: Important Safety Instructions
ULTRALINK UL2000M IMPORTANT SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. -
Page 3: Table Of Contents
5.2 Installation in a rack ... 19 5.3 Audio connections ... 20 6. SPECIFICATIONS ... 21 6.1 ULR2000 receiver ... 21 6.2 ULM2000 microphone ... 22 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION ... 23 MICROPHONE QUICK START GUIDE ... 24 ULTRALINK UL2000M... -
Page 4: Introduction
With the UL2000M from BEHRINGER, you have acquired a modern, high-performance wireless transmission system. Thanks to its amazing set of features, you can use the UL2000M in all situations in which the highest sound quality and mobility are a must, e.g. live concerts, events and video productions. -
Page 5: Initial Operation Of The Microphone
To arrange for warranty service, please contact the retailer from whom the equipment was purchased. Should your BEHRINGER dealer not be located in your vicinity, you may directly contact one of our subsidiaries. Corresponding contact information is included in the original equipment packaging (Global Contact Information/European Contact Information). -
Page 6: Ulr2000 Receiver
ULTRALINK UL2000M 2. ULR2000 RECEIVER 2.1 Control elements and connections In this chapter, different control elements of your ULR2000 will be described, explained in detail, and you will get useful information on how to use them. POWER To power the ULR2000 on or off, keep the POWER button pressed for at least 2 seconds. To disconnect the unit from the mains, please unplug the power supply. -
Page 7: Display
COLOR CODE Each BEHRINGER ULTRALINK transmitter can be color-coded using a color ring; this way you can easily differentiate between multiple transmitters (set to different frequencies). To easily match a transmitter to a receiver, you can also attach color-coded strips to each receiver. -
Page 8: The Back
ULTRALINK UL2000M MUTE MUTE indicates that the ULR2000 If the received and demodulated AF starts getting weaker, the noise increases; the signal-to-noise ratio gets smaller. The SQUELCH menu item lets you enter a threshold value (in dB) for the signal-to-noise ratio. If this ratio gets smaller than the threshold value, the receiver automatically mutes the signal (ch. -
Page 9: Scan
If a squelch value of 0 dB is set, the receiver will not mute the signal no matter how noise- saturated the incoming signal is. Press the SET button to store your dB value. The procedure is now over, and the basic settings are shown in the display again. ULTRALINK UL2000M UP or DOWN buttons. 2.2.2 SCAN UP or DOWN buttons. -
Page 10: Auto Mute
ULTRALINK UL2000M If the transmitter is turned on, off, or is switched to another channel without first muting the receiver, or if the transmission drops out due to weak batteries, audible noise will result. Even if the noise limiter is enabled on the receiver (ch. 2.2.3), it still requires some time to react, and such noise can not be suppressed safely. -
Page 11: Preset
DOWN buttons to select the desired preset. The display shows PSET 1 (2, 3 or 4). Press the SET button to load up the preset you selected. The procedure is now over, and the basic setting is shown in the display again. ULTRALINK UL2000M 2.2.7 PRESET PRESET 2... -
Page 12: Ulm2000 Microphone
ULTRALINK UL2000M 3. ULM2000 MICROPHONE In this chapter, different control elements of your ULM2000 will be described, explained in detail, and you will get useful information on how to use them. POWER To power the hand-held transmitter on or off, keep the POWER button pressed for at least 2 seconds. -
Page 13: Setting Your Own Frequency
LED blinks quickly 5 times and the unit is no longer in the programming mode. In this case, start anew with step 2. After a brief interruption, a second blink code is given: the LED blinks corresponding to the value selected (in this case, 2 times) with medium tempo. ULTRALINK UL2000M 3.2.3 Setting your own frequency 3. ULM2000 MICROPHONE... -
Page 14: Preset
ULTRALINK UL2000M After a second blink pause, an additional blink code is given as a confirmation: A successfully stored frequency is signaled with 2 slow blinks. The transmitter leaves the programming mode. If the LED blinks quickly 5 times, the frequency was not stored. In this case, start anew with step 2. -
Page 15: Mic Gain
The ULR2000 recognizes this signal and automatically mutes the output before the transmitter is actually turned off, switched to another channel or before it powers down on its own due to battery charge being too low. ULTRALINK UL2000M 3.2.5 Mic Gain 3.2.6 Auto Mute... -
Page 16: Turning The Microphone Off
ULTRALINK UL2000M For the Auto Mute function to work, it has to be activated on both the transmitter and the receiver! Activating/deactivating the Auto Mute function Engage MUTE. The transmitter can now be switched into the programming mode. Turn the selection switch to 0 and confirm your selection by keeping the POWER switch pressed for 2 seconds. -
Page 17: Transmission Frequency
Only when the desired basic sound has been achieved should you start to use equalizers and signal processors, if any at all (remember: less is often more!) 3.3.2 Transmission frequency 3.3.3 Preset 3.3.4 Mic Gain 3.3.5 Auto Mute 3.5 ULM2000 level setting 3. ULM2000 MICROPHONE ULTRALINK UL2000M... -
Page 18: Application Example
ULTRALINK UL2000M 4. APPLICATION EXAMPLE Fig. 4.1 shows how easy it is to use the products from the BEHRINGER ULTRALINK Series. Simply connect the balanced XLR output on the ULR2000 to the XLR input on your mixing console. Of course, you can use the receiver’s TRS output to connect to the next device in the signal path. -
Page 19: Installation In A Rack
Fig. 5.1: Arrangement of multiple ULR2000s when installed on top of each other ULTRALINK UL2000M 5.2 Installation in a rack . This allows unproblematic installation 5. -
Page 20: Audio Connections
ULTRALINK UL2000M 5.3 Audio connections The audio connections on the ULR2000 are laid out electronically balanced. Of course, you can connect unbalanced equipment to the balanced connectors. Fig. 5.2: XLR connections Fig. 5.3: 1/4 " TS connector " Fig. 5.4: 1/4 TRS connector Unlike other microphones, the ULM2000 hand-held transmitter can not be connected using a cable. -
Page 21: Specifications
Power supply Adapter Mains voltage Rated Current Dimensions/Weight Dimensions (W x H x D) Weight ULTRALINK UL2000M 6. SPECIFICATIONS 6.1 ULR2000 receiver True Diversity wideband FM 794 - 810 MHz 320 frequencies, between 798.1 - 805.9 MHz, adjustable in 25-kHz increments 8, freely programmable and switchable <... -
Page 22: Ulm2000 Microphone
Their use neither constitutes a claim of the trademarks by BEHRINGER nor affiliation of the trademark owners with BEHRINGER. BEHRINGER accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 23: Federal Communications Commission Compliance Information
Notice: Changes or modifications made to this equipment not expressly approved by BEHRINGER International GmbH may void the FCC/ IC authorization to operate this equipment. Operation of this device is subject to the following two conditions:... -
Page 24: Microphone Quick Start Guide
ULTRALINK UL2000M MICROPHONE QUICK START GUIDE MICROPHONE QUICK START GUIDE...
