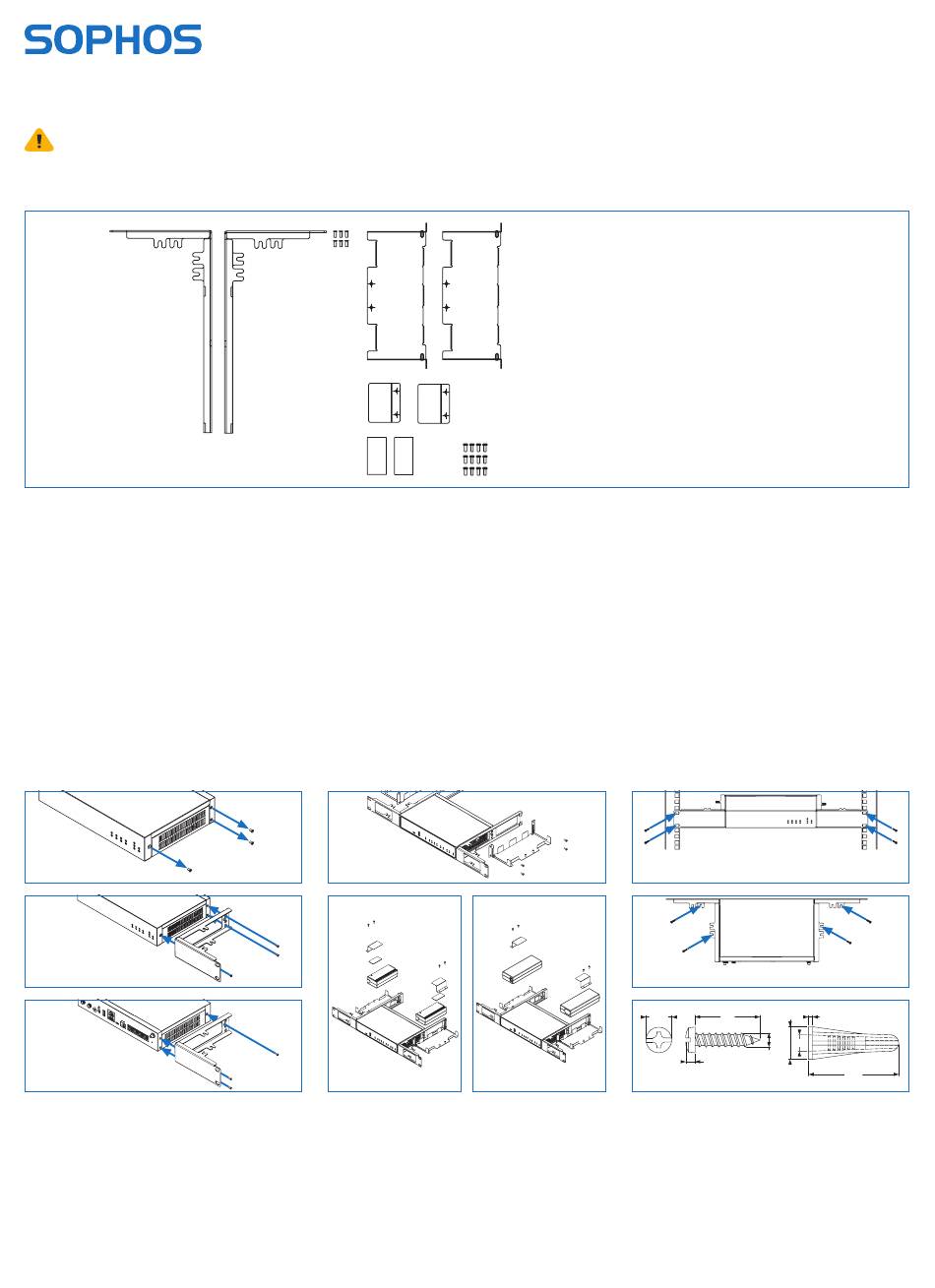

Sophos SG 105 Mounting Instructions

Rackmount Kit Mounting Instructions
Please note
This Rackmount kit can only be used with SG 105(w)/115(w) rev.3 and SD-RED 60 models.
What is included in the box
1. Remove existing screws from the
chassis
Remove the three screws from each side of
the chassis.
2. Install the Rackmounting Kit Device
Holder to the Chassis
Please note
You can mount the unit into a rack either with
the front or with the back side facing to you
(see figures below). Secure one device holder
to each side of the appliance using three of
the screws included with the box.
1.
LEDs
2a.
Front facing installation
Ports
2b.
Back facing installation
United Kingdom and Worldwide Sales
Tel: +44 (0)8447 671131
Email: sales@sophos.com
© Copyright 2018. Sophos Ltd. All rights reserved.
Sophos is the registered trademark of Sophos Ltd.
19-08-13 (PC)
SG 105(w)/115(w)
3. Install the Adapter Bracket
Attach the power adapter bracket either to
the left or right side of the rack mounting kit
by using four of the supplied screws. If you
are using redundant power supplies fix the
second adapter bracket on the other side.
4. Install the Power Adapter
Place the adapter(s) on the bracket(s).
For SG 105/115 models place one of the
supplied PADs on top of each power adapter
(4a) and secure the position of the adapter
with one of the supplied bevels by using two
screws.
3.
4a.
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
SD-RED 60
Rev. 3,
• 2 device holders (left, right)
• 2 bevels
• 2 adapter brackets
• 2 PADs (for use with SG Power adapters)
• 18 flat head M3 screws
In addition to the rack mounting kit contents, you will
need a long-handed Phillips-head screwdriver
For SD-RED 60 models a PAD is not required
(4b).
5. Install the unit
You can either install the unit into a rack (5a)
or you can hang the unit to a wall (5b).
Please use appropriate screws (not supplied
with this kit) for this purpose.
For wallmount installation we recommend
using wall plugs and screws with dimensions
shown below (5c).
5a.
5b.
ø6.3
4b. 5c.
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
Rackmount installation
Wallmount installation
16 ø8 1.0
ø4
ø3.5
2.3
Asia Sales
Tel: +65 62244168
Email: salesasia@sophos.com
22.2
