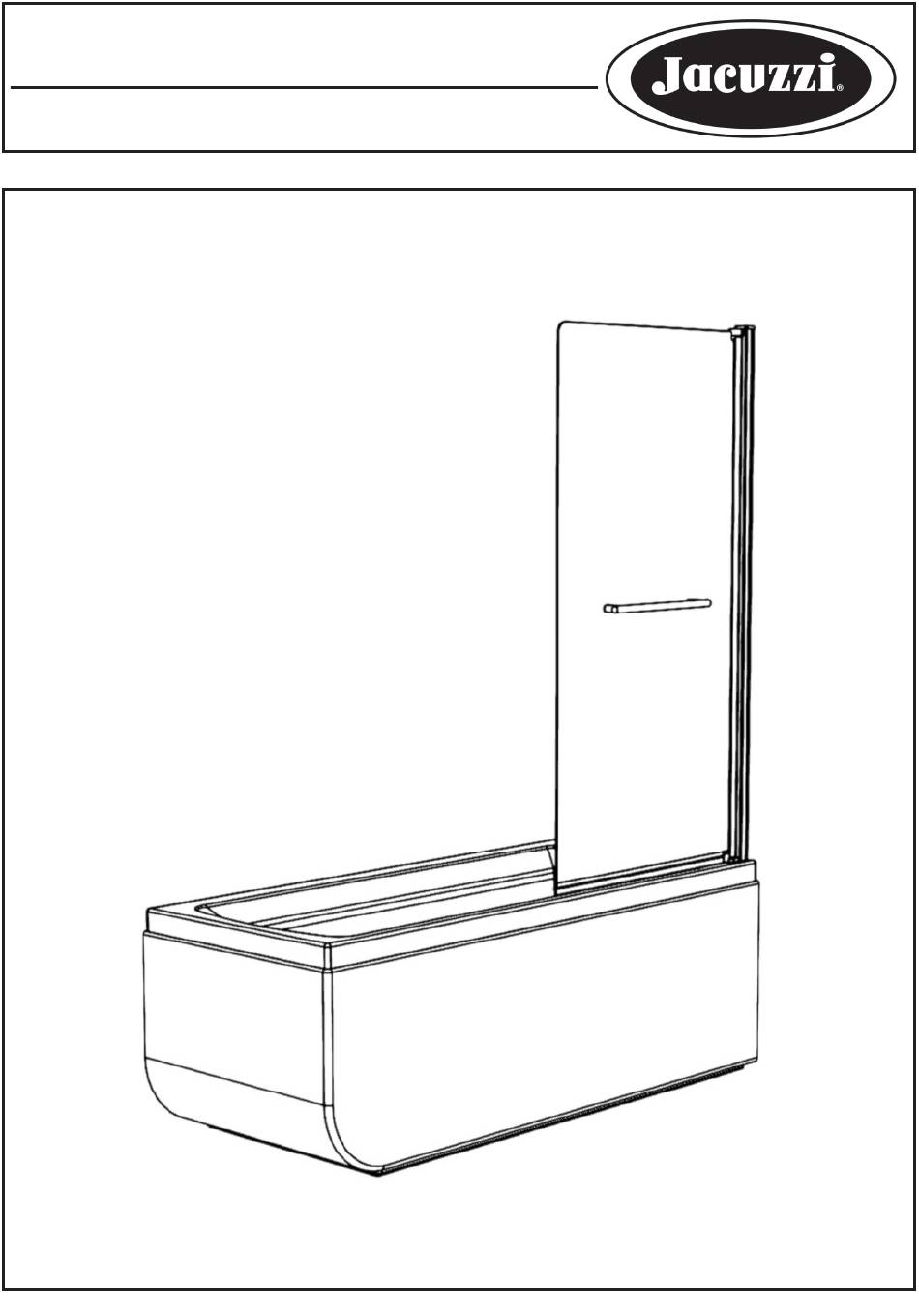

- Page 1 Installation instructions Notice d'installation SPRAY GUARD™ OVER BATH SCREEN INSTALLATION INSTRUCTIONS INSTRUCTIONS DE MONTAGE POUR ECRAN DE BAIGNOIRE JINS0077 iss.2...
- Page 2 Installation instructions Notice d'installation Bath Installation Installation de la baignoire The bath must be sited against a structural wall. Water proof walling or tiling should be fitted so that it sits on the top of the bath roll. Fixing against a pre-tiled wall may not allow enough wall post adjustment. La baignoire doit être installée contre un mur non-carrelé...
- Page 3 Installation instructions Notice d'installation Box contents Contenu du carton Fixing Pack Handle Pack Paquet de fixations Paquet de poignéee (If applicable)
- Page 4 Installation instructions Notice d'installation N.B. The handle may not be part of your selected product. 815mm...
-
Page 5: Installation
Installation instructions Notice d'installation Screen use, care and maintenance General Information Please inspect the product immediately upon receipt for transit damage or manufacturing fault. Damage reported later may not be accepted. Please handle the product with care avoiding knocks and shock loading to all sides and edges. Note. - Page 6 To ensure the correct installation of the screen the wall post must be placed in the correct position on the bath rim. Position the screen wall post ensuring the face is set back 35mm from the flat of the outside edge of the bath. Afin d'assurer une installation correcte, le profilé...
- Page 7 Use a 22mm thick wooden block between the screen and bath rim to achieve the correct spacing, leave the block in position to carry out step 5. Note : Take care not to damage your bath rim whilst positioning the block. Utiliser une pièce en bois de 22mm pour bloquer l'écran à...
- Page 8 Silicone seal to the outside and inside of the vertical wall post where it meets the tiled surface, and ¸ between the wallpost and barrel post on the inside of the screen, and around the base of the hinge mouldings as shown.
- Page 9 For further information please contact: Customer Service Jacuzzi UK Woodlands,Roydsdale way, Euroway Trading Estate, Jacuzzi UK Bradford, West Yorkshire, BD4 6SE,UK Telephone: +44 (0)1274 654 808 Fax: +44 (0)1274 475 174 E-mail: aftersales@jacuzziuk.com www.jacuzzi.co.uk Pour informations ultérieures veuillez contacter: Jacuzzi France...
