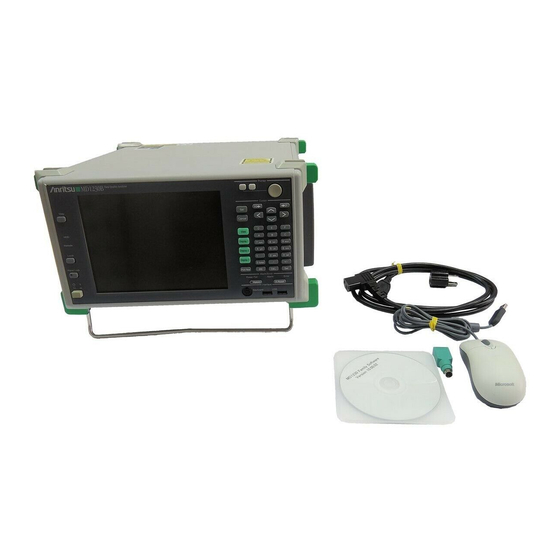

Application Traffic Monitor
Operation Manual
Eighth Edition
This is an operation manual of MD1230B-20,
MD1230B-29, MP1590B-20, and MP1590B-29.
For safety and warning information, please read this
manual before attempting to use the equipment.
Additional safety and warning information is provid-
ed in MD1230B Data Quality Analyzer Operation
Manual, and MP1590B Network Performance Tester
Operation Manual. Please also refer to one of these
documents before using the equipment.
Keep this manual with the equipment.
ANRITSU CORPORATION
Document No.: M-W2134AE-8.0
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anritsu MD1230B-20
Summary of Contents for Anritsu MD1230B-20
- Page 1 Application Traffic Monitor Operation Manual Eighth Edition This is an operation manual of MD1230B-20, MD1230B-29, MP1590B-20, and MP1590B-29. For safety and warning information, please read this manual before attempting to use the equipment. Additional safety and warning information is provid-...
- Page 2 Insure that you clearly understand the meanings of the symbols BEFORE using the equipment. Some or all of the following five symbols may not be used on all Anritsu equipment. In addition, there may be other labels attached to products which are not shown in the diagrams in this manual.
- Page 3 In addition, this warranty is valid only for the original equipment purchaser. It is not transferable if the equipment is resold. Anritsu Corporation shall assume no liability for injury or financial loss of the customer due to the use of or a failure to be able to use this equipment.
- Page 4 Notes On Export Management This product and its manuals may require an Export License/Approval by the Government of the product's country of origin for re-export from your country. Before re-exporting the product or manuals, please contact us to confirm whether they are export-controlled items or not. When you dispose of export-controlled items, the products/manuals are needed to be broken/shredded so as not to be unlawfully used for military purpose.
- Page 5 Anritsu electronic equipment). By reading this EULA and using this software, you are agreeing to be bound by the terms of its contents and Anritsu Corporation (hereafter Anritsu) hereby grants you the right to use this Software with the Anritsu-specified equipment (hereaf- ter Equipment) for the purposes set out in this EULA.
- Page 6 Department's list of Specially Designat- 6. Reparations ed Nationals or the US Department of If Anritsu suffers any loss, financial or oth- Commerce Denied Persons List or Entity erwise, due to your violation of the terms of List. By using this Software, you warrant...
- Page 7 CE Conformity marking Anritsu affixes the CE Conformity marking on the following product (s) in ac- cordance with the Council Directive 93/68/EEC to indicate that they conform to the EMC and LVD directive of the European Union (EU). CE marking 1.
- Page 8 C-tick Conformity marking Anritsu affixes the C-tick marking on the following product (s) in accordance with the regulation to indicate that they conform to the EMC framework of Australia/New Zealand. C-tick marking 1. Product Model Option: MD1230B-20 Application Traffic Monitor,...
-
Page 9: About This Manual
About This Manual This operation manual contains those of the MD1230 family and MP1590B. Note: The MD1230 family is the generic name of the MD1230B Data Quality Analyzer and its modules. The MD1230 family Operation Manual contains those of the main unit, control software, modules, remote control and options as shown below. - Page 10 Expert Analysis Module Operation Manual Explains basic operation for the Expert Analysis Module. Application Traffic Monitor Operation Manual Explains operation for the software that monitors traffics on Ethernet. MD1230B-26 PPPoE Operation Manual Describes how to operate the software for measuring traffic on PPPoE.
- Page 11 MP1590B Network Performance Tester operation manual consists of the main unit, control software, modules, remote control and options shown below. MP1590B Network Performance Tester Operation Manual Explains MP1590B basic operations MX159001B Network Performance Tester Control Software Operation Manual SDH Edition Explains operations for the MP1590B control software (SDH Edition).
- Page 12 Ethernet Module Operation Manual Explains basic operations for each Ethernet module. MP1590B Network Performance Tester Remote Control Operation Manual Explains the remote control via RS-232C, GPIB and Ethernet Interfaces. MP1590A/B-30 High Precision Jitter Analysis Operation Manual Explains specification for MP1590A/B-30. Application Traffic Monitor Operation Manual Explains operation for the software that monitors...
- Page 13 This operation manual covers the following equipment and software: Model Name Product Name Option Name of Corre- sponding Application Traffic Monitor MD1230B Data quality analyzer MD1230B-20 MD1230B-29 MP1590B Network performance tester MP1590B-20 MP1590B-29 MX123001A Data quality analyzer control software ...
-
Page 14: Table Of Contents
Table of Contents About This Manual........Section 1 Overview ........Product Overview ............Features ................ Restrictions on Use ............Section 2 Installation and Activation ..Updating Firmware and Activating Application Traffic Monitor ............... Opening Application Traffic Monitor Screen ....Section 3 Operation ........ -
Page 15: Overview
Chapter 1 Overview This chapter provides a function overview and features of the Application Traffic Monitor. Product Overview ............1-2 Features ................ 1-3 Restrictions on Use ............1-5... -
Page 16: Product Overview
Chapter 1 Overview 1.1 Product Overview The application traffic monitor targets control of the MU120112A/21A/22A/ 31A/32A/38A module installed in the main unit, and monitors the traffic intensity of packet flowing through on Ethernet interface at a resolution of 1 ms, and displays a fluctuation of counted values on the graph. As shown in Figure 1.1-1, a traffic that seems to be stable at 100 Mbit/s may include sudden large fluctuation when measuring at a higher resolution. -
Page 17: Features
Features 1.2 Features Real-time monitoring The main unit can monitor the rate of traffic (up to 4 flows ) transferred on a network, with high-resolution and in real-time *1: The maximum number of flows per port that can be measured is 2 for the MU120112A module, and 4 for the MU120121A/22A/31A/32A/38A module. - Page 18 Chapter 1 Overview Multiuser/multiunit The multiuser function allows up to four users including a user who operates the main unit itself to control the main unit simultaneously. MD1230B User1 Network Control Control Control MD1230B User2 User3 User4 Figure 1.2-2 Multiuser control The multiunit function allows a user to control up to two main units including the main unit itself simultaneously.
-
Page 19: Restrictions On Use
Restrictions on Use 1.3 Restrictions on Use The application traffic monitor can be used by switching the settings of the main unit using the Setup Utility, which can be executed from the menu that appears immediately after the startup of the main unit. Note that the application traffic monitor is exclusive to normal measurement functions. - Page 20 Chapter 1 Overview When the Application Traffic Monitor screen is opened, the keys available for the front panel of the main unit are limited to a part of them. For the MD1230B, 0 Symbol to 9 wxyz, A to F, ./: , +/, BS, Del, Set, Cancel, | F, R |, , ,,...
- Page 21 Restrictions on Use When nodes that actively cause a loss of packets exist in the LAN on which the main unit is connect- Countermeasure: The LAN that contains the main unit must be a closed configuration, in which there are hubs, but not nodes.
- Page 22 Section 1 Overview 1-8.
-
Page 23: Installation And Activation
Chapter 2 Installation and Activation This chapter provides activation procedures. Updating Firmware and Activating Application Traffic Monitor ................2-2 Opening Application Traffic Monitor Screen ....2-5... -
Page 24: Updating Firmware And Activating Application Traffic Monitor
Chapter 2 Installation and Activation 2.1 Updating Firmware and Activating Application Traffic Monitor To use the application traffic monitor, the operation mode of the main unit must be set to the application traffic monitor mode. Once the operation mode is set, it does not need to be set for each time of startup of the main unit, since the setting of the operation mode is maintained even when the main unit is turned off. - Page 25 Updating Firmware and Activating Application Traffic Monitor Open the {Firmware Functionality} tab and select [Application Traffic Monitor] from the Unit pull-down list. A checkbox appears for each module that can be used by the application traffic monitor. Select a checkbox for the module (s) to be used.
- Page 26 Chapter 2 Installation and Activation Notes: 1. To return the main unit from the application traffic monitor mode to the normal mode, select [Default] from the Unit pull-down list and then click the [Apply] button. 2. Do not insert/remove a module in the application traffic monitor mode.
-
Page 27: Opening Application Traffic Monitor Screen
Opening Application Traffic Monitor Screen 2.2 Opening Application Traffic Monitor Screen When the main unit is in the application traffic monitor mode, activating the Main Application adds an icon to the upper left position on the Tree View (shown in the figure below). Click the icon to open the Application Traffic Monitor screen. - Page 28 Section 2 Installation and Activation 2-6.
-
Page 29: Operation
Chapter 3 Operation This chapter describes the operation on the Application Traffic Monitor. MX123001A Data Quality Analyzer Refer to corresponding sections in Control Software Operation Manual MX159001B Network Performance Tester Operation Manual for the operation on other screens. Application Traffic Monitor Screen ........ 3-2 Setting Flow to Be Measured ........ -
Page 30: Application Traffic Monitor Screen
Chapter 3 Operation 3.1 Application Traffic Monitor Screen The Application Traffic Monitor screen is the main screen for the application traffic monitor. The settings of the application traffic monitor, control and the measurement results are displayed. [1] [2] [3] [4] [5] [6] [7] [10] [11] [12]... - Page 31 Application Traffic Monitor Screen Opens the Counter/Capture Filter/Trigger Setting screen for filter setting. Settings can be performed independently for each post. This button cannot be operated during measurement. For details, refer to Section 3.2.2 “Counter/Capture Filter/Trigger Setting screen”. Clears the displayed graph. It does not affect the Log file being obtained.
- Page 32 Chapter 3 Operation Starts/stops capturing as targeting the port set in [13] . However, it is required to be in the Reserved state. When analyzing captured frames, close the Application Traffic Monitor screen and open the Capture screen. Select this check box before starting measurement to record log during measurement.
- Page 33 Application Traffic Monitor Screen [13] Opens the Flow Select screen, in which the color displayed in a graph, identification label, measurement port, and applicable filter for the flow to be measured can be set. This button is disabled during measurement. For details, refer to Section 3.2.1 “Flow Select screen”.
- Page 34 Chapter 3 Operation [17] Switch unit for the vertical axis of the graph. The following units are available: (1K=1000, 1M=1000K) bit/s Kbit/s Mbit/s byte/s Kbyte/s Mbyte/s [18] [19] Set the display range for the vertical axis of the graph. One above the graph ( [18] ) sets the upper limit of the range, and one under the graph ( [19] ) sets the lower limit.
- Page 35 Application Traffic Monitor Screen [21] Set the width for the horizontal axis (time axis) of the monitor. The scale of the horizontal axis is changed according to the width set here. The setting range varies depending on the measurement resolution. Correspondence between Resolution and the setting range is shown below.
- Page 36 Chapter 3 Operation [24] Sets MAX/MIN/AVE described in [23] . Clicking it opens the Max/Min/Average Setting screen shown below. Figure 3.1-4 Max/Min/Average Setting screen Max / Min Calculation Set the calculation method for Max/Min. Select “Use 1msec Resolution” to perform a calculation with 1-ms resolution. Select “Depend on Resolution Setting”...
- Page 37 Application Traffic Monitor Screen [26] These are LED lamps indicating the communication status. Link : Indicates the Link status at the port to be measured. Lights in green when normal. Shown with Logical-AND condition when multiple ports are to be measured. Err : Lights in red when the error counter for the port to be measured counts up.
- Page 38 Chapter 3 Operation [27] Peak Marker Marker 1 Marker 2 Flow Data Figure 3.1-5 Graph display of measured results Real-time graph display of the measured results. A delay of about 5 s from measurement to display is accompanied depending on buffering. The vertical axis on the monitor shows the traffic intensity per unit time.
- Page 39 Application Traffic Monitor Screen Note: Do not take the graph out of the screen by moving the window. This causes the graph image being distorted. 3-11...
-
Page 40: Setting Flow To Be Measured
Chapter 3 Operation 3.2 Setting Flow to Be Measured This section describes the setting procedures of count condition, filter and trigger. The application traffic monitor function enables up to four flows of traffics to be displayed and logged in real time simultaneously. Perform the settings shown below before starting measurement. -
Page 41: Flow Select Screen
Setting Flow to Be Measured 3.2.1 Flow Select screen Click the button [13] on the Application Traffic Monitor screen (see Section 3.1) to open the Flow Select screen. The traffic monitor counters to be monitored/logged can be selected in this screen. Figure 3.2.1-1 Flow Select screen Displays the color currently set to be displayed in the graph. - Page 42 Chapter 3 Operation Select the port to be measured. A list of ports that can be measured is displayed in the format of the unit name, slot number, and port number, divided by colon. “None” is also included in the list. When “None” is selected, the corresponding item will not be measured.
-
Page 43: Counter/Capture Filter/Trigger Setting Screen
Setting Flow to Be Measured 3.2.2 Counter/Capture Filter/Trigger Setting screen Click the button [3] on the Application Traffic Monitor screen (see Section 3.1 “Application Traffic Monitor Screen”) to open the Counter/Capture Filter/Setting screen. The filter conditions for traffic monitor counter and capture filter/trigger can be set in this screen. - Page 44 Chapter 3 Operation Select the port for which filter setting is performed. For a port that you are not the owner, [Not Owner] is displayed and setting cannot be performed. Set each filter for the traffic monitor counters on the selected port. Switch tabs among [Counter 1], [Counter 2], [Filter] and [Trigger] to perform settings individually.
- Page 45 Setting Flow to Be Measured Set the capture filter condition. Select a matching condition for each parameter from Match , Not Match and Don't care . Click the Filter/Trigger Condition Setting button ( [12] ) to set pattern or And/Or condition. Enables/disables the capture trigger.
-
Page 46: Recording Log
Chapter 3 Operation 3.3 Recording Log 3.3.1 Overview The measured results can be recorded in a log file. When a log file is read using the replay software, the measured results can be replayed and verified in detail. Since log files are saved in the text format, the user can analyze a log file directly. - Page 47 Recording Log If a part of the log data has been lost, the following screen is displayed after the log conversion progress indication screen shown above is closed, to report the data missing (lost). Figure 3.3.1-2 Notes: 1. Removable media cannot be set as the output destination of the log file.
-
Page 48: Necessary Free Disk Space
Chapter 3 Operation 3.3.2 Necessary free disk space The free disk space necessary to record logs can be calculated from the recording time and number of flows to be logged. A guide for necessary disk space is shown in the table below. Table 3.3.2-1 Necessary free disk space Recording Number of flows to be recorded... -
Page 49: Log File Record Format
Recording Log 3.3.3 Log file record format <Configuration> 1st line: Title, measurement start date/time, measurement stop date/time 2nd line: Version 3rd line: Enable/disable of flows. Flow Map: F (When Flow X is enabled, F =1 . When disabled, F =0 .) 4th line: Label of Flow 1, physical port identifier 5th line:... - Page 50 The maximum and minimum values of Flow 2 Last line are recorded. (ex.: 00000000000,00000000000 ) <Format> Title Anritsu Application Traffic Monitor Date Depends on the localization settings Time stamp HH:MM'SS.*** Each of hour, minute, second and milli-second digits are right-aligned with zero-suppression...
- Page 51 Recording Log <Example of output> Anritsu Application Traffic Monitor,2002.09.01 10:00’30,2002.09.01 22:00’20 Version: 5.00.00 Flow Map: 1,1,1,1 <User-allocated label is output as flow name> Traffic 1:UNIT1:2:1:1 Module Type: MU120112A Source MAC:00.11.22.33.44.55,don't care Destination MAC:66.77.88.99.00.AA,don't care Pattern1:0001 0000 0000 0000 0000 0000 0000 0000,Matched...
- Page 52 Section 3 Operation 3-24.
-
Page 53: Replay Software
Chapter 4 Replay Software This chapter explains how to use the replay software. Activation Procedures ........... 4-2 Operation ..............4-3 4.2.1 Main screen ............4-3 4.2.2 Operation screen ..........4-11... -
Page 54: Activation Procedures
Chapter 4 Replay Software 4.1 Activation Procedures The replay software is installed into PCs as standard. It replays and displays measured log files on the Application Traffic Monitor. Activate the replay software by selecting the “Traffic Player” icon from the Windows Start menu. It is registered to the [Start] menu on the main unit. -
Page 55: Operation
Operation 4.2 Operation 4.2.1 Main screen [1] [2] [3] [4] [5] [6] [10] [11] [12] [13] [14] [15] [19] [18] [17] [22] [20] [21] [16] Figure 4.2.1-1 Replay software screen Terminates the replay software. Opens the file dialog box to open the log file to be replayed. Replays/temporally stops/stops the log file. - Page 56 Chapter 4 Replay Software Opens the Operation screen. Search for the peak time of traffic intensity and calculation of traffic intensity at any period in the specific flow can be performed in this screen. For details on the Operation screen, refer to Section 4.2.2 “Operation screen”.
- Page 57 Operation [10] Opens the Flow Setting screen for setting graph display color for the flow to be measured. Figure 4.2.1-2 Flow Setting screen [11] Set whether to show/hide Marker 1/2, as well as the marker value. When selected, the horizontal line corresponding to the rate set here appears on the graph.
- Page 58 Chapter 4 Replay Software [13] Checking the check box switches to the Logarithm graph display. The vertical axis (traffic intensity per time) in the graph is switched to the Logarithm display. [14] Switch unit for the vertical axis of the monitor. The following units are available: (1K=1000, 1M=1000K) bit/s K bit/s...
- Page 59 Operation [18] Set the width for the horizontal axis (time axis) of the monitor. The scale of the horizontal axis is changed according to the width set here. The setting range varies depending on [17] Resolution. Correspondence between Resolution and the setting range is shown below. 1 ms: 100 ms 2,000 ms...
- Page 60 Chapter 4 Replay Software [21] Sets MAX/MIN/AVE described in [20] above. Clicking it opens the Max/Min/Average Setting screen shown below. Figure 4.2.1-4 Max/Min/Average Setting screen Max / Min Calculation Set the calculation method for Max/Min. Select “Use 1msec Resolution” to perform calculation with 1-ms resolution. Select “Depend on Resolution Setting”...
- Page 61 Operation [22] Start Marker Peak Search Marker End Marker Peak Marker Marker 1 Marker 2 Flow Data Figure. 4.2.1-5 Graph display of measured results in log Measured results in the log file are monitored in graph. The vertical axis on the graph shows the traffic intensity per unit time. The horizontal axis shows time.
- Page 62 Chapter 4 Replay Software Marker 1, Marker 2 When it is enabled in [11] , the position of the specified traffic value is indicated. Start Marker, End Marker Indicates the target range of Peak Search/Traffic Calculation function in Section 4.2.2 “Operation screen”. Peak Search Marker Indicates the peak position searched on the Peak Search function in Section 4.2.2 “Operation screen”.
-
Page 63: Operation Screen
Operation 4.2.2 Operation screen [1] [2] [3] [4] [6] [7] [9] [11] [10] [12] Figure 4.2.2-1 Operation screen When the ALL radio button is selected, Start Marker and End Marker are set at the start time and stop time of measurement, respectively. When the User defined radio button is selected, Start Marker and End Marker are set according to settings in [2] and [5] . - Page 64 Section 4 Replay Software Sets Range so that End Marker is set to the rightmost position in the current screen. Sets Range so that End Marker is set at the measurement stop time. Shows current position of Peak Search Marker and traffic intensity at the position.
