Behringer DW400 User Manual

Thank you for showing your confidence in us by purchasing the BEHRINGER DYNAMIC WAH
DW400. This effects pedal delivers a variety of wah effects including a Human Voice mode
creating an unbelievable "talking" sound. Experience exciting new sounds!
Select the effect mode via the MODE switch:
UP: Creates a Wah effect. The filter moves
upwards (from low to high frequencies).
DOWN: Creates a Wah effect. The filter
moves downwards.
SYNTH: A stronger upward Wah effect with
a synth-like resonance filter sound.
HUMAN VOICE: Turns your instrument
signal into the sound of a human voice. The
sound alters between 2 selectable vowel
sounds and adds slight overdrive.
TEMPO: Auto Wah. Tap in the tempo via foot
switch or external foot switch.
SENS determines the effect sensitivity,
depending on the input level. In HUMAN
VOICE mode, it selects the first vowel. In
TEMPO mode, this control has no function.
The MANUAL control determines the wah
effects' lowest frequency. In HUMAN
VOICE mode, it selects the second vowel.
In TEMPO mode, this control has no function.
The DECAY control determines how quickly
the filter is shifted. In TEMPO mode, you
can shape the LFO waveform from Sine
(MIN) to Square wave (MAX).
UP, DOWN, SYNTH
effect sensitivity,
SENS
depending on input level
starting frequency
MANUAL
of Wah effect
Envelope
DECAY
Response Time
Wah pedal (SENS, MANUAL
EXP/CTL*
and DECAY disabled)
*Connect an expression pedal (e.g. the FCV100) to the EXP/CTL connector
The ¼" TRS EXP/CTL connector can be used to connect two different types of pedals:
Use an expression pedal for Wah pedal functionality (for all modes).
Use an external foot switch instead of the pedal foot switch (
(in TEMPO mode only).
Use the ¼" TS GTR IN connector to plug in a guitar. Use either input
Use the ¼" TS BASS IN connector to plug in a bass guitar. If you use this input, the filter
parameters are optimized for bass signals. With a cable in input
The ¼" TS OUT connector sends the signal to your amp or other effects devices.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level
indicator. If the Tap function is active, the LED flashes.
Use the foot switch to activate/deactivate the effect. When pressing the foot switch 2 seconds
or longer, you can tap in the Auto Wah effect time (ON/BATT LED flashes).
Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V
battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful
not to scratch the unit.

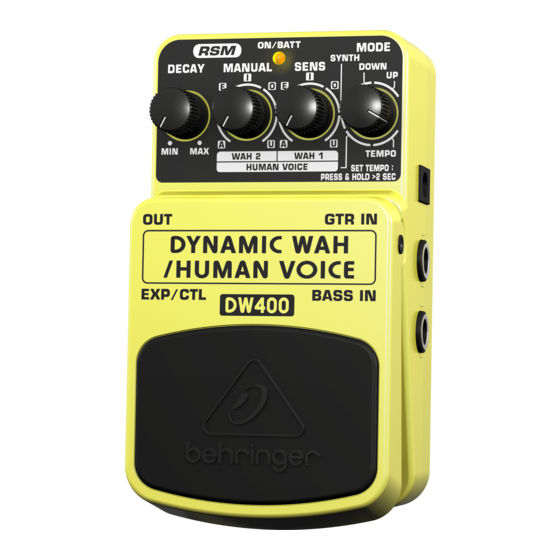

DYNAMIC WAH DW400
1. CONTROLS
HUMAN VOICE
Wah 1:
Selects the first vowel
Wah 2:
Selects the second vowel
Selects the Time used to
move from Wah 1 to Wah 2
Fades between Wah 1 and
Wah 2 (DECAY disabled)
Top view
TEMPO
no function
no function
LFO waveform shape:
Sine (Min) > Square (Max)
Wah pedal
(DECAY disabled)
) to tap in the effect time
or .
, this input has no function.
