Behringer WARP DISTORTION WD300 User Manual

Thank you for showing your confidence in us by purchasing the BEHRINGER WARP
DISTORTION WD300. This high-quality effects pedal enables you to produce super thick,
tube-like distortion plus endless sustain. Thanks to its high-performance features you
can achieve the typical hard rock or heavy metal distortion sounds.
The SUB switch activates a low-frequency boost at around 90 Hz to simulate the
resonance frequency of a 4 x 12" cabinet.
CAUTION: The SUB filter is not suitable for all speakers and combos!
The LEVEL control adjusts the output level.
The WARP control adjusts the mid-frequency range. It boosts the mids from 250 Hz
to 1 kHz at minimum position. In maximum position it cuts mids at 500 Hz with a
presence boost at 3 kHz.
The GAIN control adjusts the input sensitivity and the amount of resulting distortion.
The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this 1/4" TS IN connector to plug in the instrument cable.
The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or
replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove
the pedal cover. Be careful not to scratch the unit.
The WD300 has no on/off switch. As soon as you insert the plug into the IN
connector, the WD300 is on. When not in use, remove the plug from the IN
connector. This extends the life of the battery.
WARP DISTORTION WD300
1. CONTROLS

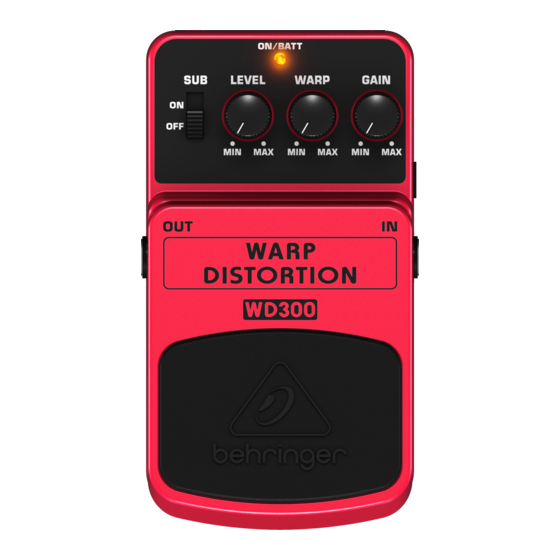

Top view
