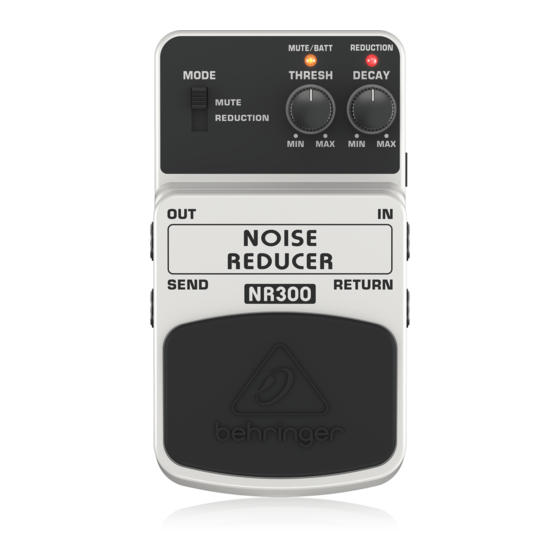

NOISE REDUCER NR300
Ultimate Noise Reduction Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER NOISE REDUCER NR300.
This ultimate effects pedal is specifically designed to eliminate unwanted noise and hum without
altering your tone. Thanks to its high-performance features it preserves the original attack and
envelope while leaving your playing and dynamics intact.

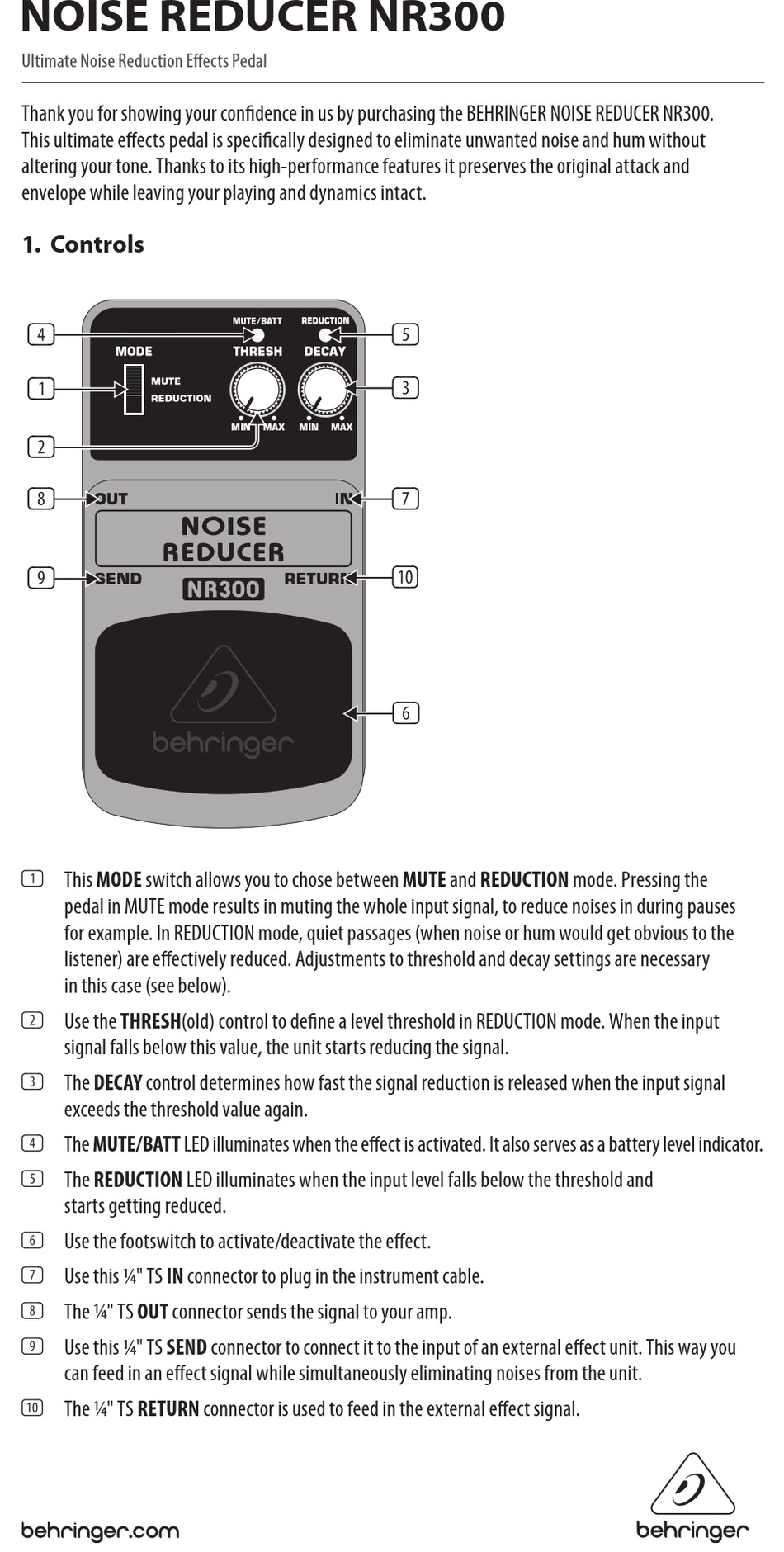

1. Controls

(4)
(1)
(2)
(8)
(9)
(1) This MODE switch allows you to chose between MUTE and REDUCTION mode. Pressing the
pedal in MUTE mode results in muting the whole input signal, to reduce noises in during pauses
for example. In REDUCTION mode, quiet passages (when noise or hum would get obvious to the
listener) are effectively reduced. Adjustments to threshold and decay settings are necessary
in this case (see below).
(2) Use the THRESH(old) control to define a level threshold in REDUCTION mode. When the input
signal falls below this value, the unit starts reducing the signal.
(3) The DECAY control determines how fast the signal reduction is released when the input signal
exceeds the threshold value again.
(4) The MUTE/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
(5) The REDUCTION LED illuminates when the input level falls below the threshold and
starts getting reduced.
(6) Use the footswitch to activate/deactivate the effect.
(7) Use this 1/4" TS IN connector to plug in the instrument cable.
(8) The 1/4" TS OUT connector sends the signal to your amp.
(9) Use this 1/4" TS SEND connector to connect it to the input of an external effect unit. This way you
can feed in an effect signal while simultaneously eliminating noises from the unit.
(10) The 1/4" TS RETURN connector is used to feed in the external effect signal.
(5)
(3)
(7)
(10)
(6)
