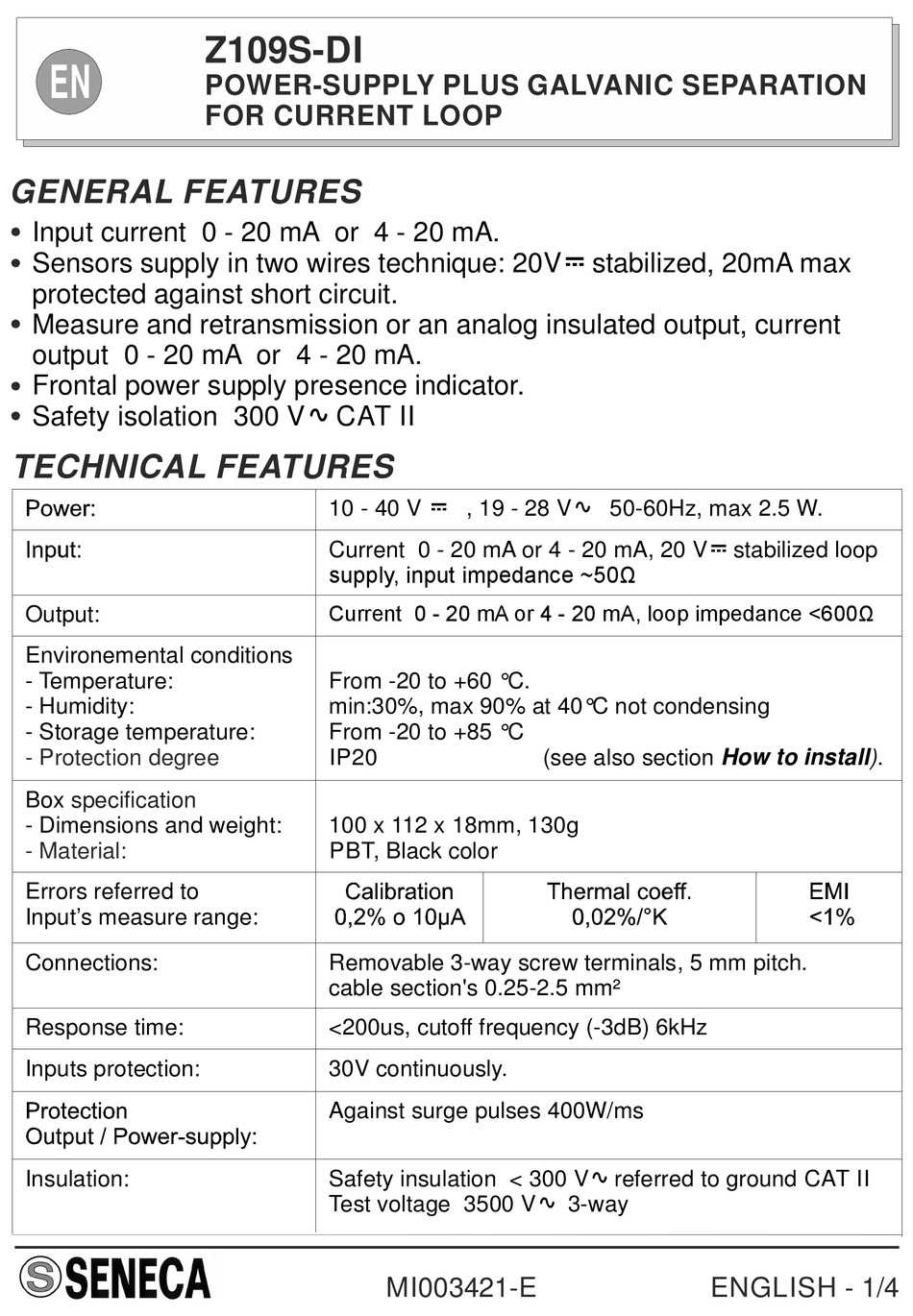

Seneca Z109S-DI Manual

EN

GENERAL FEATURES

Input current 0 - 20 mA or 4 - 20 mA.
Sensors supply in two wires technique: 20V
protected against short circuit.
Measure and retransmission or an analog insulated output, current
Output 0 - 20 mA or 4 - 20 mA.
Frontal power supply presence indicator.
Safety isolation 300 V

TECHNICAL FEATURES

Output:
Environemental conditions
- Temperature:
- Humidity:
- Storage temperature:
- Protection degree
Box specification
- Dimensions and weight:
- Material:
Errors referred to
Input's measure range:
Connections:
Response time:
Inputs protection:
Insulation:
Z109S-DI
Power-SUPPLY PLUS GALVANIC SEPARATION
FOR CURRENT LOOP

CAT II
10 - 40 V
Current 0 - 20 mA or 4 - 20 mA, 20 V
supply, input impedance ~50Ω
Current 0 - 20 mA or 4 - 20 mA, loop impedance <600Ω
From -20 to +60 °C.
min:30%, max 90% at 40°C not condensing
From -20 to +85 °C
IP20
100 x 112 x 18mm, 130g
PBT, Black color
Removable 3-way screw terminals, 5 mm pitch.
cable section's 0.25-2.5 mm²
<200us, cutoff frequency (-3dB) 6kHz
30V continuously.
Against surge pulses 400W/ms
Safety insulation < 300 V
Test voltage 3500 V
, 19 - 28 V

(see also section

MI003421-E
 stabilized, 20mA max
 50-60Hz, max 2.5 W.
 stabilized loop
How To Install)

referred to ground CAT II
3-way
ENGLISH - 1/4
.
