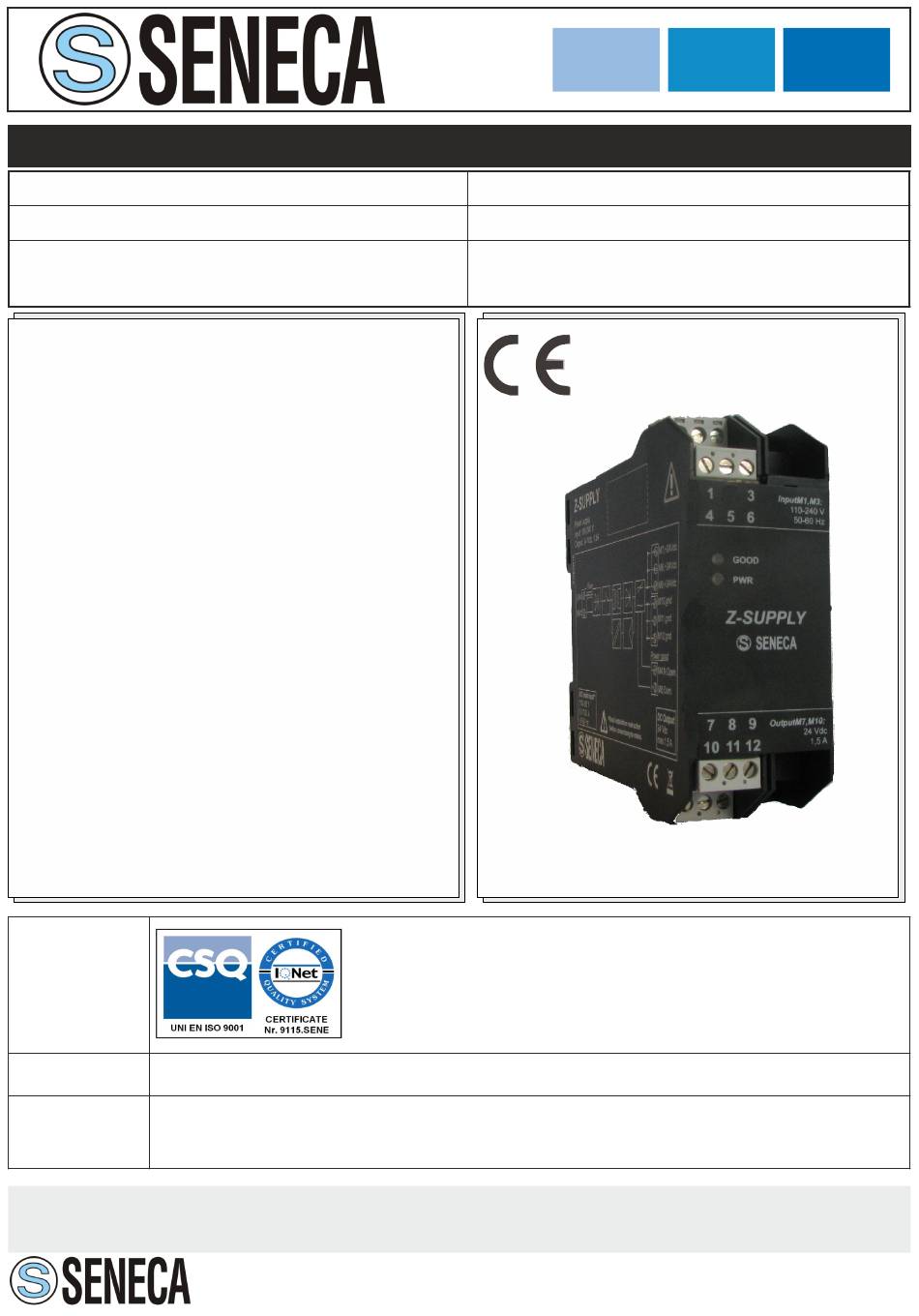

Single-phase switching
power supply: 24V @ 1.5A
Seneca s.r.l.
35127 - PADOVA - ITALIA
www.seneca.it
English
Z-SUPPLY
Via Austria, 26
ENGLISH 1/8
Advertisement
Table of Contents
Related Manuals for Seneca Z-SUPPLY
Summary of Contents for Seneca Z-SUPPLY
- Page 1 Mail Product information: sales@seneca.it This document is property of SENECA srl. Duplication and reprodution are forbidden, if not authorized. Contents of the present documentation refers to products and technologies described in it. All technical data contained in the document may be modified without prior notice Content of this documentation is subject to periodical revision.
- Page 2 DC input rated voltage from 110 Vdc to 315 Vdc @ 0.7 A Output voltage: 24 Vdc ± 2% (it is possible the redundancy between two Z-SUPPLY through connection in parallel of their respective output, ONLY by IDC10 connector) Output maximum-current: 1.5 A...
- Page 3 ~90Vac 3.3 Output voltage Output voltage 24 Vdc ± 2 % Output redundancy (more Z-SUPPLY The output of a Z-SUPPLY can be parallel-connected with the output of another Z-SUPPLY(only by IDC10);see fig.6 modules) Max output current 1.5 A Over-load limit current 1.7 A...
- Page 4 It is reccomended that the use and installation operations are performed by an electrical-skilled technician because it is possible to be exposed to risk of electrocution. Z-SUPPLY module can achieve a very high temperature, so it is important to be careful when using it. ENGLISH 4/8...
- Page 5 5.0 INSTALLATION Power off the module before cabling. To install/remove the Z-SUPPLY on/from DIN 46277 rail, execute the following operations (Fig.1a and Fig.1b) 5.1 Installation on/removal from DIN 46277 rail Fig. 1b Fig. 1a Z - S 0 . .
- Page 6 The electrical connections should only be carried out on a disconnected module and under ESD safe conditions. Make sure that the Z-SUPPLY is power off before executing any operations. Before powering the Z-SUPPLY, it is necessary to cable phase (P) and neutral (N) of the single-phase network, through the screw terminals 3 and 1.
- Page 7 6.3 24 Vdc-output by IDC10 for Seneca modules Before using 24 Vdc output through IDC10 connector, see Fig.1d and in Fig.1c. Through IDC10 connector, Z-SUPPLY can power up to 15 modules. 1 2 3 1 2 3 1 2 3...
- Page 8 8.0 ACCESSORIES DESCRIPTION CODE AL1-35 DIN rail support with screw terminals P=35 mm Z-PC-DIN AL2-17,5 DIN rail support with screw terminals P=17,5 mm 1-35 DIN 1 slot support for rear connector P=35 mm 2-17,5 DIN 2 slot support for rear connector P=17,5 mm Z-PC-DIN 4-35 DIN 4 slot support for rear connector P=35 mm...
