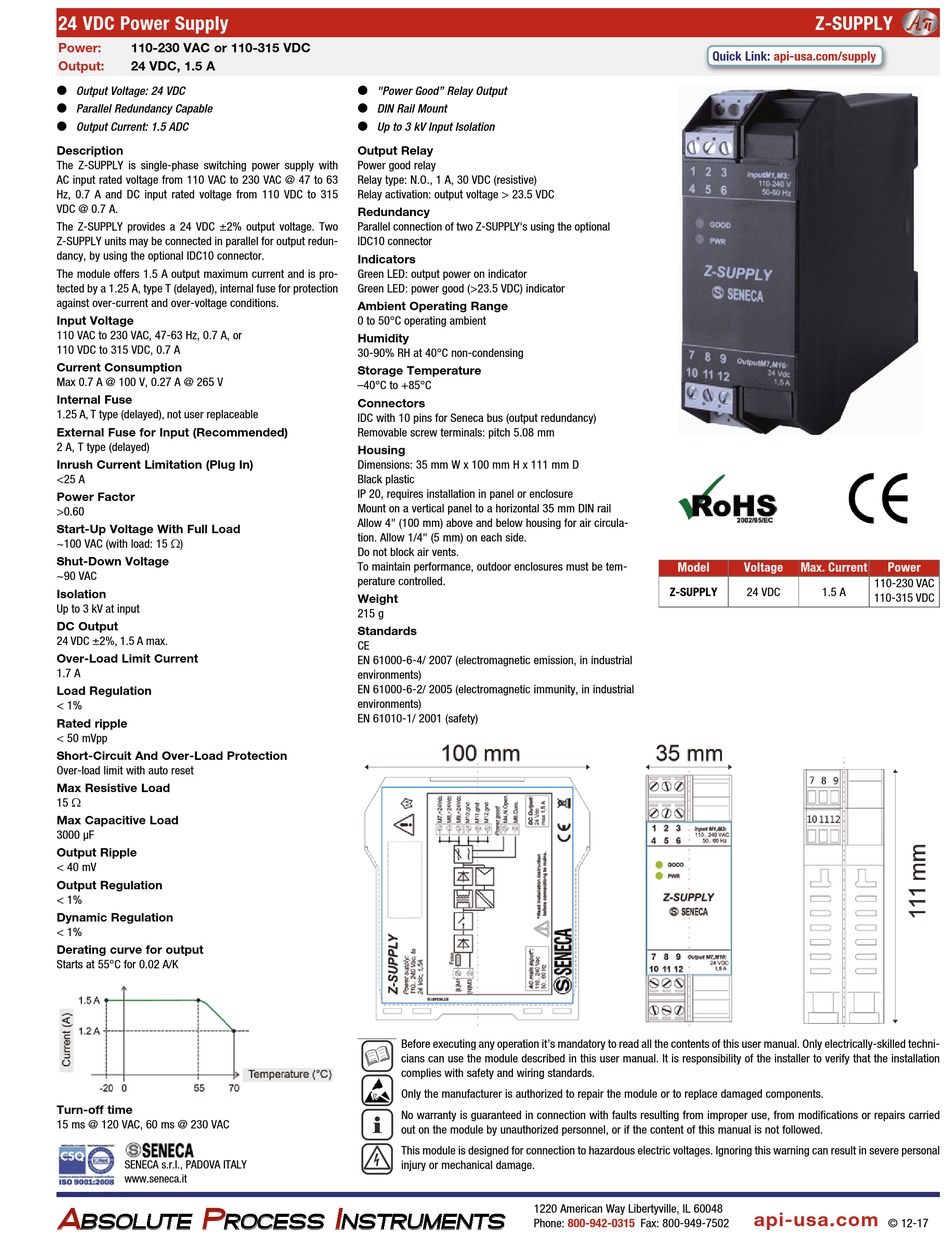

Seneca Z-SUPPLY Quick Start Manual

24 VDC Power Supply
Power: 110-230 VAC or 110-315 VDC
Output: 24 VDC, 1.5 A
Output Voltage: 24 VDC
O
Parallel Redundancy Capable
O
Output Current: 1.5 ADC
O
Description
The Z-SUPPLY is single-phase switching power supply with
AC input rated voltage from 110 VAC to 230 VAC @ 47 to 63
Hz, 0.7 A and DC input rated voltage from 110 VDC to 315
VDC @ 0.7 A.
The Z-SUPPLY provides a 24 VDC ±2% output voltage. Two
Z-SUPPLY units may be connected in parallel for output redun-
dancy, by using the optional IDC10 connector.
The module offers 1.5 A output maximum current and is pro-
tected by a 1.25 A, type T (delayed), internal fuse for protection
against over-current and over-voltage conditions.
Input Voltage
110 VAC to 230 VAC, 47-63 Hz, 0.7 A, or
110 VDC to 315 VDC, 0.7 A
Current Consumption
Max 0.7 A @ 100 V, 0.27 A @ 265 V
Internal Fuse
1.25 A, T type (delayed), not user replaceable
External Fuse for Input (Recommended)
2 A, T type (delayed)
Inrush Current Limitation (Plug In)
<25 A
Power Factor
>0.60
Start-Up Voltage With Full Load
~100 VAC (with load: 15 Ω)
Shut-Down Voltage
~90 VAC
Isolation
Up to 3 kV at input
DC Output
24 VDC ±2%, 1.5 A max.
Over-Load Limit Current
1.7 A
Load Regulation
< 1%
Rated ripple
< 50 mVpp
Short-Circuit And Over-Load Protection
Over-load limit with auto reset
Max Resistive Load
15 Ω
Max Capacitive Load
3000 μF
Output Ripple
< 40 mV
Output Regulation
< 1%
Dynamic Regulation
< 1%
Derating curve for output
Starts at 55°C for 0.02 A/K
Turn-off time
15 ms @ 120 VAC, 60 ms @ 230 VAC
SENECA s.r.l., PADOVA ITALY
www.seneca.it
A P
BSOLUTE ROCESS
"Power Good" Relay Output
O
DIN Rail Mount
O
Up to 3 kV Input Isolation
O
Output Relay
Power good relay
Relay type: N.O., 1 A, 30 VDC (resistive)
Relay activation: output voltage > 23.5 VDC
Redundancy
Parallel connection of two Z-SUPPLY's using the optional
IDC10 connector
Indicators
Green LED: output power on indicator
Green LED: power good (>23.5 VDC) indicator
Ambient Operating Range
0 to 50°C operating ambient
Humidity
30-90% RH at 40°C non-condensing
Storage Temperature
–40°C to +85°C
Connectors
IDC with 10 pins for Seneca bus (output redundancy)
Removable screw terminals: pitch 5.08 mm
Housing
Dimensions: 35 mm W x 100 mm H x 111 mm D
Black plastic
IP 20, requires installation in panel or enclosure
Mount on a vertical panel to a horizontal 35 mm DIN rail
Allow 4" (100 mm) above and below housing for air circula-
tion. Allow 1/4" (5 mm) on each side.
Do not block air vents.
To maintain performance, outdoor enclosures must be tem-
perature controlled.
Weight
215 g
Standards
CE
EN 61000-6-4/ 2007 (electromagnetic emission, in industrial
environments)
EN 61000-6-2/ 2005 (electromagnetic immunity, in industrial
environments)
EN 61010-1/ 2001 (safety)
1.0 DISCLAIMER
Before executing any operation it's mandatory to read all the contents of this user manual. Only electrically-skilled techni-
Before executing any operation it's mandatory to read all the contents of this
user manual. Only electrically-skilled technicians can use the module cians can use the module described in this user manual. It is responsibility of the installer to verify that the installation
described in this user manual. It is responsibility of the installer to verify that
complies with safety and wiring standards.
the installation complies with safety and wiring standards.
Only the manufacturer is authorized to repair the module or to replace
Only the manufacturer is authorized to repair the module or to replace damaged components.
damaged components.
No warranty is guaranteed in connection with faults resulting from
No warranty is guaranteed in connection with faults resulting from improper use, from modifications or repairs carried
improper use, from modifications or repairs carried out on the module by
unauthorized personnel, or if the content of this manual is not followed. out on the module by unauthorized personnel, or if the content of this manual is not followed.
This module is designed for connection to hazardous electric voltages. Ignoring
This module is designed for connection to hazardous electric voltages. Ignoring this warning can result in severe personal
this warning can result in severe personal injury or mechanical damage.
injury or mechanical damage.
2.0 DESCRIPTION AND GENERAL FEATURES
I
NSTRUMENTS
Single-phase switching power supply for Seneca modules: it can be installed on DIN
46277 rail. Input voltage range: 100-260 VAC @ 47 - 63 Hz; output: 24 VDC @ 1.5 A.
AC input rated voltage from 110 VAC to 230 VAC @ 47-63 Hz, 0.7 A

Quick Link:
Model
Z-SUPPLY
2.1 Description
1220 American Way Libertyville, IL 60048
Phone: 800-942-0315 Fax: 800-949-7502
2.2 General features
Z-SUPPLY
api-usa.com/supply
Voltage Max. Current Power
110-230 VAC
24 VDC 1.5 A
110-315 VDC
