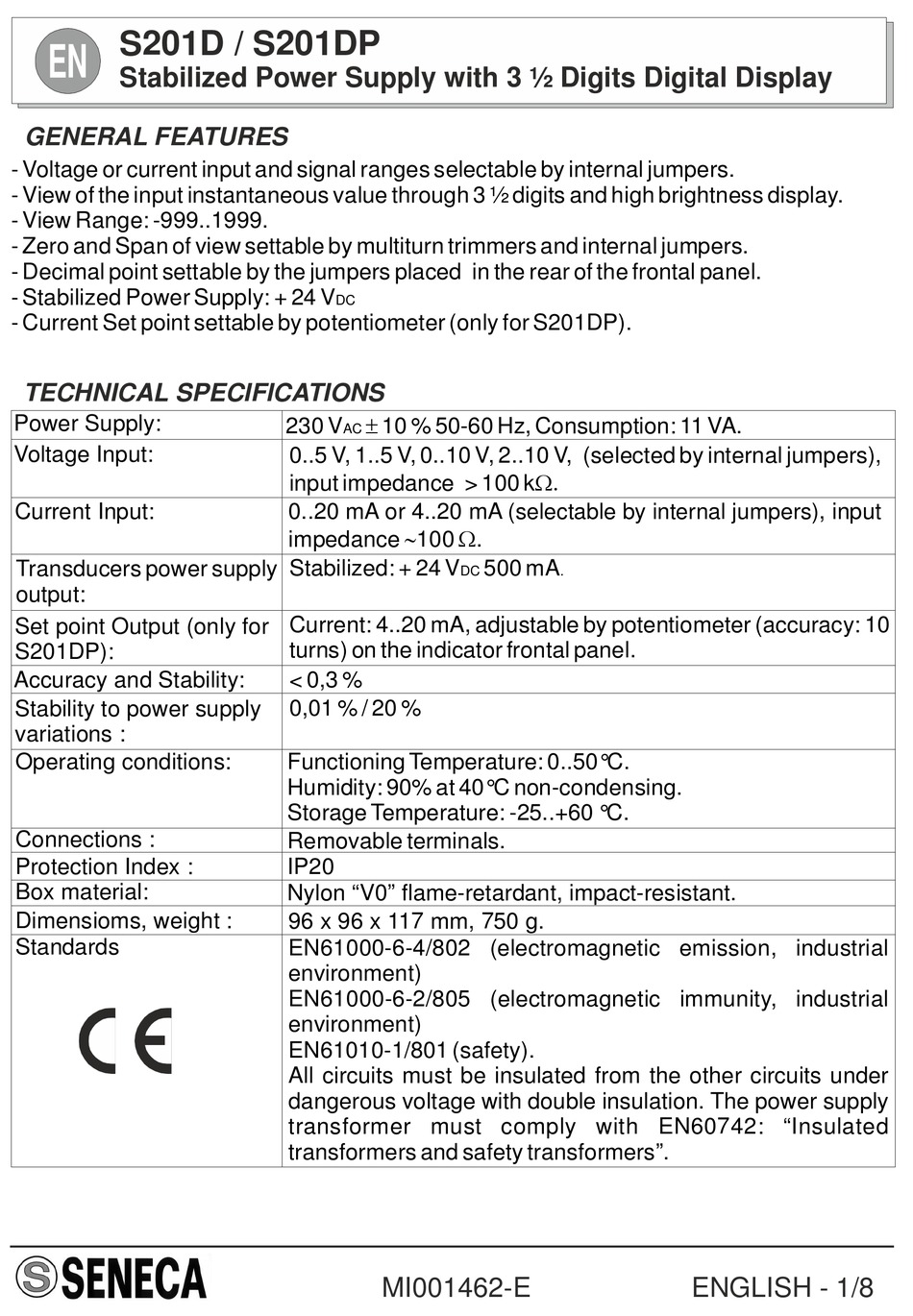

Seneca S201D Manual

S201D / S201DP
EN
Stabilized Power Supply with 3 ½ Digits Digital Display
General Features
- Voltage or current input and signal ranges selectable by internal jumpers.
- View of the input instantaneous value through 3 ½ digits and high brightness display.
- View Range: -999..1999.
- Zero and Span of view settable by multiturn trimmers and internal jumpers.
- Decimal point settable by the jumpers placed in the rear of the frontal panel.
- Stabilized Power Supply: + 24 V
- Current Set point settable by potentiometer (only for S201DP).
Technical Specifications
Power Supply:
Voltage Input:
Current Input:
Transducers power supply
output:
Set point Output (only for
S201DP):
Accuracy and Stability:
Stability to power supply
variations :
Operating conditions:
Connections :
Protection Index :
Box material:
Dimensioms, weight :
Standards
DC
230 V 10 % 50-60 Hz, Consumption: 11 VA.

AC
0..5 V, 1..5 V, 0..10 V, 2..10 V, (selected by internal jumpers),
input impedance > 100 k
0..20 mA or 4..20 mA
impedance 100 . 
Stabilized: + 24 V 500 mA
Current: 4..20 mA, adjustable by potentiometer (accuracy: 10
turns) on the indicator frontal panel.
< 0,3 %
0,01 % / 20 %
Functioning Temperature: 0..50°C.
Humidity: 90% at 40°C non-condensing.
Storage Temperature: -25..+60 °C.
Removable terminals.
IP20
Nylon "V0" flame-retardant, impact-resistant.
96 x 96 x 117 mm, 750 g.
EN61000-6-4 02 (electromagnetic emission, industrial /8
environment)
EN61000-6-2 05 (electromagnetic immunity, industrial /8
environment)
EN61010-1 01 (safety). /8
All circuits must be insulated from the other circuits under
dangerous voltage with double insulation. The power supply
transformer must comply with EN60742: "Insulated
transformers and safety transformers".
