ENCLOSURE
Tamper resistant zinc die-cast
front door
LCD DISPLAY
Sunlight readable display (for
greeting, help and other messages)
SIDE LEDs
For goose neck nighttime
visibility
HELP BUTTON
To display help messages &
play audio messages
RS-485 COMM PORT
• To connect to Max Cell Hub
POWER IN: 12 VDC / VAC
STATUS LEDs
• Each port has indicator LEDs
for easy troubleshooting

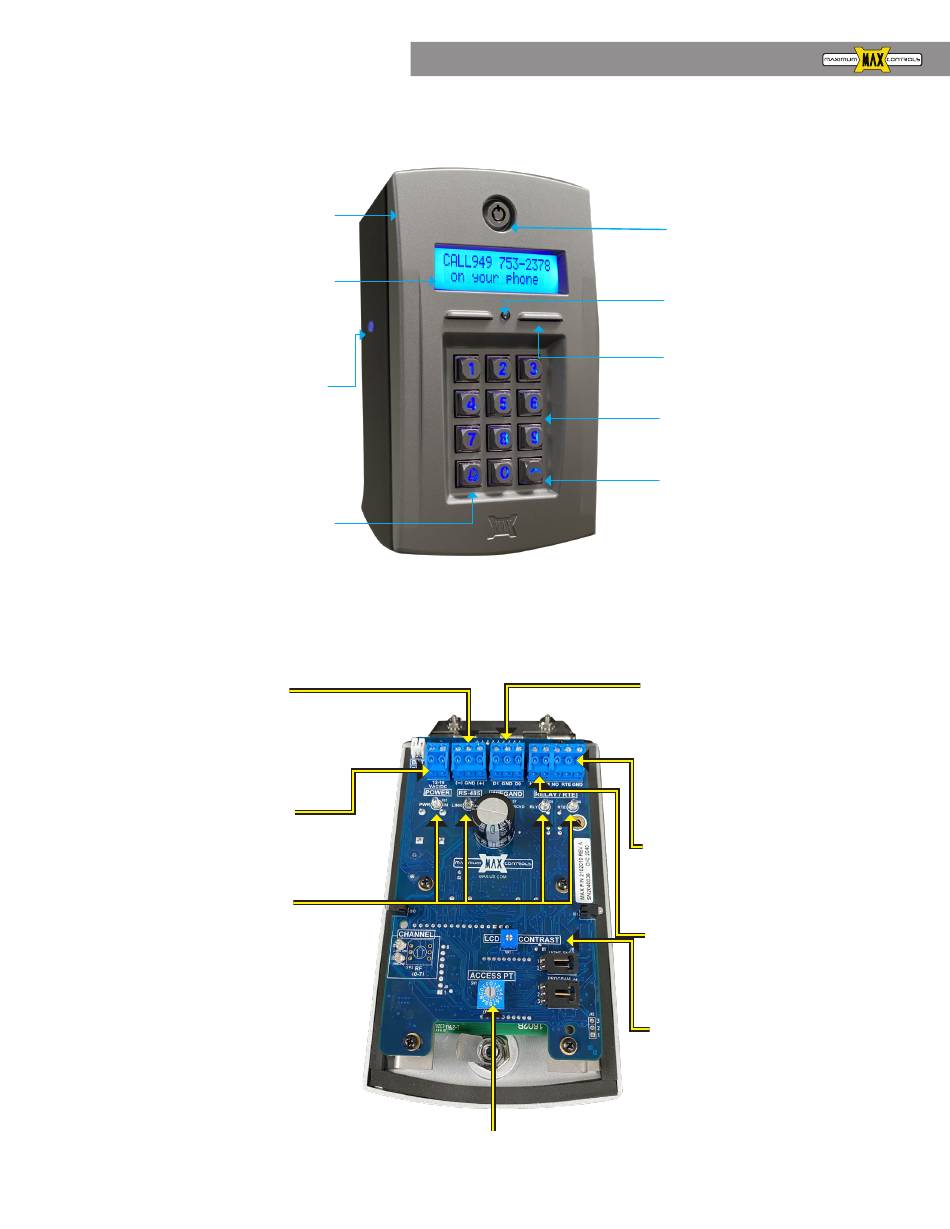

MAX KEYPAD OVERVIEW
MAX Keypad
MAX Keypad
ACCESS PT
Rotary switch to select access point #
KEY LOCK
Vandal proof
LIGHT SENSOR
For solar power management
SPEAKERS
For audio messages
KEYPAD
Back lit & vandal proof
CALL button for visitors
Displays phone # for visitor to
call using their own phone
WIEGAND PORT
• To support 26-bit card readers, radio
receivers & RFID transponders
• Program cards/keyfob, radio transmitters
& transponder tags via Max Cloud App and
assign optional time restrictions
• Track wiegand device activity in event log
REQUEST TO EXIT (RTE) PORT
• Supports exit switch request on pedestrian
gates
RELAY PORT
• Control access point with dedicated relay
LCD CONTRAST
for display contrast adjustment
