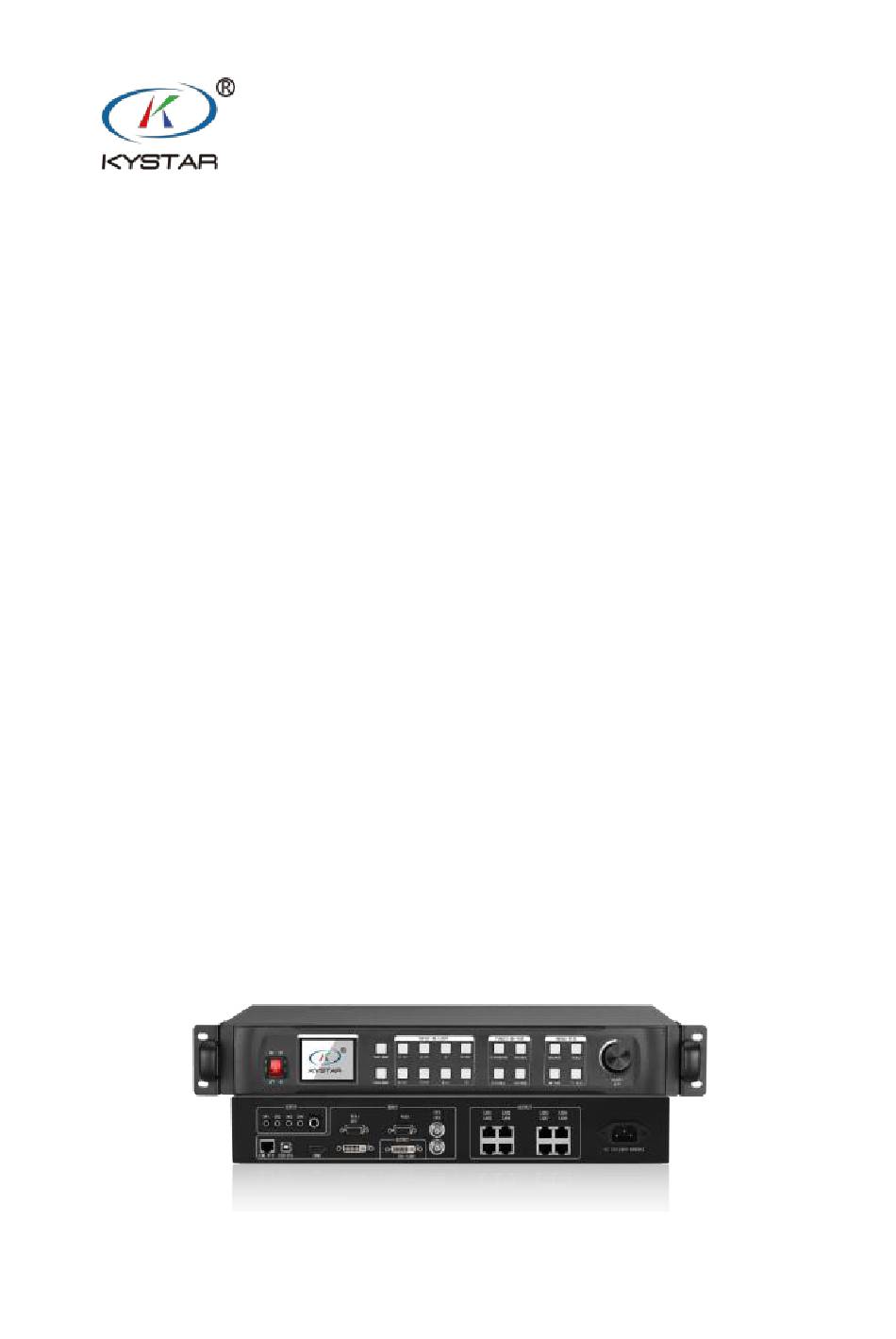

  • Page 1 Two in One Controller With Eight Network Port Manual...
  • Page 2 Beijing KYSTAR Technology Co., Ltd. Safety precautions Danger ● There is high voltage in the equipment. Non-professional maintenance personnel should not open the back cover to avoid danger. Warning ● This equipment is not waterproof equipment, please do waterproof treatment in wet environment;...

  • Page 3: Table Of Contents

    catalog II、PRODUCT CHARACTERISTICS ..................2 V. PANEL STRUCTURE ....................... 6 ..........................6 FRONT PANEL ..........................7 BACK PANEL 6. WIRING AND INSTALLATION ..................8 ........................8 WIRING DIAGRAM VII、EQUIPMENT DEBUGGING ..................9 ..........................9 WIZARD MODE VIII、CONTROL MENU ....................16 IX、FREQUENTLY ASKED QUESTIONS ................
  • Page 4 I. Product Discussions With the rapid development and application demand of LED display industry, various control requirements for large screen control system emerge as the times require. However, due to the limitations of the large screen control system in image processing, picture control and signal format conversion, there are some weak links in the large screen control system of LED, which can not meet the needs of users.

  • Page 5: Product Characteristics

    II、Product characteristics 1.Support the independent operation of the control panel, the design of knobs and digital keys makes the equipment easier to use. 2.Supporting the software control of the host computer to realize visual and fast operation. 3.Support fade-in and fade-out perfect switching; 4.Supporting brightness and contrast, enhancing image display effect;...
  • Page 6 III. Technical Indicators Video processor adopts the latest patented video processing technology and has the ability of video conversion with arbitrary format input and corresponding format output. Video signals including CVBS (composite video), HDMI, VGA (RGB) and DVI-D can be processed and enhanced to meet customer application needs.
  • Page 7 DVI input （Number of Inputs） （Connector） Standard DVI-D socket SMPTE: 625/25 PAL, 525/29.97 NTSC, 625/50p PAL, 525/59.94p NTSC, 1080P60,1080i50, 1080i59.94/60, 720p50 和 Supporting resolution 720p59.94/60 VESA: 800× 600@60Hz，1024× 768@60Hz， 1280× 768@60Hz，1280× 1024@60Hz， 1600× 1200@60Hz signal level TMDS level, single-pixel input, 165 MHz bandwidth standard DVI 1.1 1Vpp±...
  • Page 8 4. Working sketch LED screen Desktop computer laptop camera...

  • Page 9: Panel Structure

    V. Panel Structure Front panel ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1、 POWER-------------------------Equipment switch, OFF - power off, ON - power on 2、 LCD--------Text display screen, display menus, parameters and other information 3、...

  • Page 10: Back Panel

    20、Navigation keys-----------------User navigation mode, used as step size switch key when adjusting data size 21、arrowhead tag----------------------------------------------------------------back key back panel ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1、 UART-------------------------------------Connecting PC Software through 9-pin Serial Port to RJ45 Network Port 2、...

  • Page 11: Wiring And Installation

    6. Wiring and Installation Wiring diagram Power cable LED screen Ethernet net USB control cable Signal source Installation steps 1、As shown in the wiring, the DVI interface of the graphics card is connected with the DVI-IN input port of the video processor. 2、Then connect the DVI interface of the graphics card with the DVI-IN input port of the video processor and the DVI-OUT output port of the processor with the sending card as shown in the figure.

  • Page 12: Equipment Debugging

    、Equipment debugging Wizard mode This navigation is suitable for most cases. It is simple to set up. With the prompt, you can gradually debug it to achieve the desired display effect. The processor automatically enters the navigation mode when it is powered up.(or Click Enter Navigation Mode）：...
  • Page 13 Select whether to import the box file: Note: The box files need to be imported into the equipment through the upper computer software. The box files here refer to the parameters of the receiving card. Set the number of rows/columns in the box: Note: Number of rows/columns in the box refers to the number of horizontal/vertical receiving cards used in the large screen.
  • Page 14 Set the layout of keys according to the wire: Note: Wire arrangement refers to the splicing mode between the wires. Set up cabinet routing mode: Note: Cabinet routing mode: Series mode between receiving cards should ensure that the direction of the two lines is the same. Display whether normal: Note: Normal click is displayed on the large screen;...
  • Page 15 Set the number of large screen points: Note: Set the number of large screen points, the number of large screen points is the size of the whole screen. Save settings: Note: Some parameters of the control system are saved here.
  • Page 16 Image navigation Set the number of windows Select the input source: Note: Select the input signal source...
  • Page 17 Whether local display is needed: Note: This interface is to select whether it is necessary to intercept part of the image of the input signal source and display it on the LED screen. Ps-The most common way to do "partial display" is to display the full screen of the playback window and switch to the panoramic display of the computer desktop at any time.
  • Page 18 Save settings: End of navigation: The last step is to save the settings, in which mode one is automatically invoked after booting. At this point, the setup of the processor is completed. In the process of using it, the signal can be switched directly with the front panel.

  • Page 19: Control Menu

    VIII、Control menu Main menu selection custom （I）screen Navigation mode Horizontal position Vertical position （II）scaler parameters Horizontal size 1920 Vertical size 1080 Horizontal position Vertical position （III）part Horizontal size Vertical size Mode 1 Mode 2 （IV）Save Mode 3 Mode 4 Mode 5 Mode 1 Mode 2 （V）Mode...
  • Page 20 English （I）Language Settings Chinese Chinese confirm （II）factory cancel （III）support Please contact the sales staff. （IV）Planning tasks （VI）more （V）switch Effect Time Horizontal position Custom Vertical position Custom （VI）VGA set Horizontal size Custom Vertical size Custom brightness Contrast （VII）Picture Quality Settings saturation sharpening...
  • Page 21 Still （VIII）still Active Mute （IX）sound Voice Source change Enable （I）Load hotkey Disable Enable （II）Key locked Disable （III）Resend （IV）Read config 60Hz （X）master （V）Frame Frequency 50Hz Settings 30Hz （VI）Color Temperature Settings （VII）Multi-machine synchronization （VIII） upgrade online （IX）HDCP delayed （X）ADC Correcting （XI）Initialization...

  • Page 22: Frequently Asked Questions

    IX、frequently asked questions Q1：DVI、HDMI、VGA、CV、USB Port definition. A： DVI： Digital (HD) video signal is an interface standard introduced by DDWG (Digital Display Working Group) in 1999 by Silicon Image, Intel and other companies. It has been well optimized in speed, clarity and HDCP protocol. Signal sources are typically desktop computers, notebooks, etc.
  • Page 23 controls part of the screen and cascades the whole screen. Q3：How to set the keyboard lock of the video processor? How to unlock? A: Menu - Advanced Menu - Expert Settings - Keyboard Lock. Keyboard can be locked after opening. Keyboard can be unlocked even by pressing MENU key 10. Q4：What is the password to enter the screen navigation? “168”“666”“888”“999”Any one is OK.
  • Page 24 replicate mode. ② Connection problems. When the signal line interface contacts badly or there is a problem inside the wire, the large screen will appear abnormal phenomena such as color stripes, flower screens and so on. Check carefully whether the pin in the signal line is broken or inclined and change the signal line.

  • Page 25: Method Of Importing Box Files

    X、Method of Importing Box Files 1. Save cabinet files Expert screen adjustment interface has the option of saving box files: 2、new cabinet file Select the video processing option of the main menu of the software, and select the list of new box files from the tool menu inside:...
  • Page 26 Select Add in the pop-up window, add the required box file to the list, and then save it as a blst file:...
  • Page 27 3、import cabinet file list Select Add in the pop-up window, add the required box file to the list, and then save it as a blst file:...
  • Page 28 After the software prompt is written successfully, it can be debugged by the video processor. When the processor chooses the box file, the imported box file will be displayed on the LCD screen.
