ECD-200BT
ELECTRONIC CABLE DRIVE
The Dakota Digital ECD-200BT is designed operate a cable-driven speedometer from a
transmission or ECM electric speed signal or from an OBDII port connection. The supplied cable
threads on to one end of the ECD-200 and the wiring harness exits on the other end. Do not use the
vehicle's original speedometer cable. The module is fully sealed and can be mounted under the dash
or in the engine compartment. The module should not be mounted under the vehicle due to the
danger of road debris causing damage. The unit is fully adjustable from the comfort of your driver's
seat. Setup can also be completed by using the Dakota Digital Accessory app available for IOS or
Android devices.

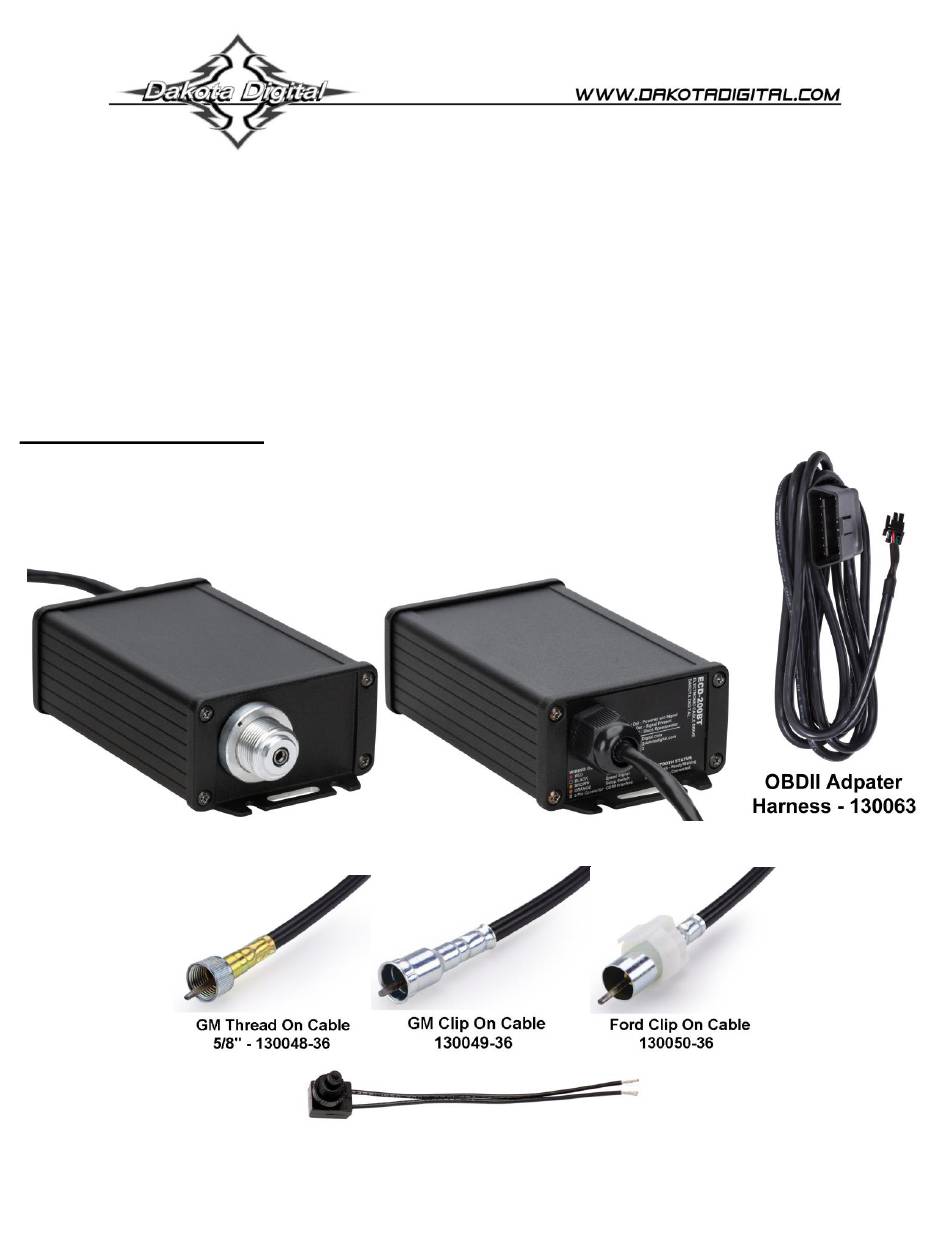

Included components
Cable drive unit
Switch Assembly
1
MAN# 650704B
Advertisement
Table of Contents
Related Manuals for Dakota Digital ECD-200BT
Summary of Contents for Dakota Digital ECD-200BT
- Page 1 The module should not be mounted under the vehicle due to the danger of road debris causing damage. The unit is fully adjustable from the comfort of your driver’s seat. Setup can also be completed by using the Dakota Digital Accessory app available for IOS or Android devices.
- Page 2 ECD Display Panel The digital readout on the end of the ECD-200BT offers more setup options and helps to indicate what setup function is being accessed in addition to the speedometer needle feedback for certain calibration functions. While you don’t need to see the ECD unit during day-to-day operation, LED readout is useful during initial setup and for diagnostics.
- Page 3 Please see page eight for the setup steps required. Setup menu overview *To simplify the setup procedure, please download out IOS or Android app ‘Dakota Digital Accessory’* Setup is entered by holding the supplied function switch while turning the key on. Tap the switch to change selections, hold to enter a sub-menu or save an option.
- Page 4 Speedometer calibration with a speed signal wire: *To simplify the setup procedure, please download the IOS or Android app ‘Dakota Digital Accessory’* To operate the setup procedure, the orange wire needs to touch ground. The orange wire can be wired to one side of the enclosed push button switch, and the other side of the switch goes to any ground.
- Page 5 Adjust (20 MPH): - LED: “” • Needle should be pointing to 20 MPH (32 km/h). • Press and hold the switch until the needle drops to 0 MPH. Then release the switch. • The needle will move to 15 select to decrease your speed or 25 to increase your speed. •...
- Page 6 • A number will appear, = 8,000 PPM, = 8,200 PPM Input source menu The ECD-200BT can read a regular electronic vehicle speed signal (VSS) from a dedicated speed sensor or from a VSS output of an engine computer or transmission computer. It can also read OBDII speed in 1996 and newer GM and Ford vehicles, and 2003 and newer Chrysler/Jeep vehicles.
- Page 7 = Bluetooth is available all the time. App changes can be made in real time driving. o = Bluetooth setup option are only available to the app when the ECD-200BT has been placed in setup mode with the function switch.
- Page 8 OBDII speed in 1996 and newer GM and Ford vehicles, and 2003 and newer Chrysler/Jeep vehicles. The ECD-200BT will not be able to read CAN speed from aftermarket ECMs like Holley or FAST, or non US standard protocols. Input menu display: - LED: ...
- Page 9 when using the OBDII cable Grounding interference Make sure both the speed sensor and ECD-200BT are grounded at the same ground location Speedometer will not work; dots Speedometer is not connected Check speedometer cable connections...
- Page 10 Dakota Digital assumes no responsibility for loss of time, vehicle use, owner inconvenience nor related expenses. Dakota Digital will cover the return standard freight once the product has been evaluated for warranty consideration; however the incoming transportation is to be covered by the owner.
