3. Overview

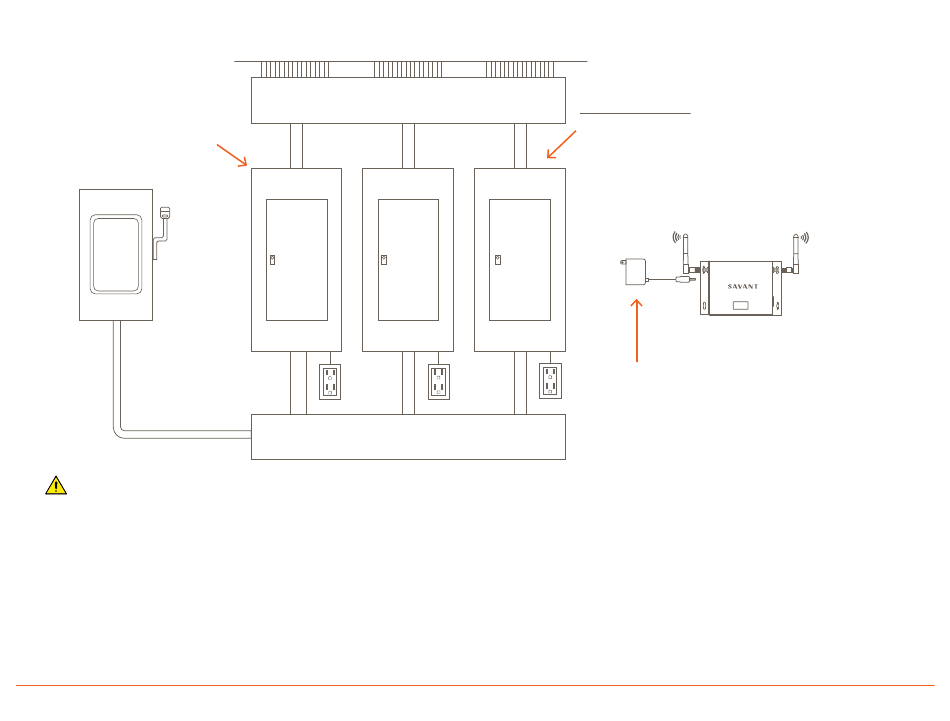

The diagram below displays one example of a complete Savant Panelized Lighting system. Refer to the bulleted items below for additional information.
The number of panels required
should be determined by
the electrical contractor.
See bulleted items.
Install in accordance with
NEC and local code
requirements.
IMPORTANT! A licensed electrician is recommended when determining the following:
–
The type of module or modules required for installation (e.g. dimming or relay module). For detailed information and product specifications, refer to the
installation manual for each type of module, available on the Savant Customer Community.
– The lighting panel model # and the number of panels needed. To do this,
• Sum up the total power of all the lighting loads. This will determine the power requirements of each panel.
• Sum up the number of spaces needed for the breaker(s), the dimming module(s), and/or the relay module(s). Each breaker requires one space and
each module requires two spaces.
– Determine the size of the breaker needed for each set of modules. To do this,
• Determine the wattage requirements of each load that is connected to a dimming or relay module.
• Sum up the wattage requirements and divide the wattage requirements by the input voltage. The result gives you the size of the breaker required.
Savant Panelized Lighting Deployment Guide
009-1823-01 | 191114
lighting trough
Lighting Panel Lighting Panel
L/P-1 L/P-2
sub panel feeders
5
Supported Panels:
- Homeline 1.0 inch load centers
- QO ¾ inch load centers/panel boards
Lighting Panel
Panel Bridge Controller communicates
L/P-3
with dimming and relay modules
via Bluetooth signaling.
120-240VAC
Savant recommends connecting
controller through a UPS Battery Backup.
(Uninterruptible Power Supply)
of 29
Primary Auxiliary
Antenna
Antenna
5V DC
Ethernet
Status
Reset
Panel Bridge
Controller
