Savant HST-SMRTD Quick Reference Manual

This Quick Reference Guide provides all the necessary information to install the Savant
Smart Host.
IMPORTANT! Before using the Savant Smart Host for the first time, update
to the latest version of Runtime OS.
Follow the steps outlined in the Software Installation and Upgrade
Deployment Guide for the release being installed.
NOTE: The Savant Smart Host is a custom Linux host designed specifically to support
running a Savant® Runtime OS. Use of other Linux devices is not supported by
Savant.
Box Contents
(1) HST-SMRTD or HST-SMRTDR (Redundant Host)
(1) Installation Kit:
(1) 19V DC 65W 50/60 Hz Power Supply
(1) 6 ft Power Cord
(1) Quick Reference Guide
Required System Components
The following components are required to use with Savant Smart Host Linux Host.
Description
Master Smart Host License
Ethernet Network
Optional Accessories
Description
1U Rack mount
Specifications
Environmental Environmental
Temperature 0°C to +40°C
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTUs 61.5 btu/hr
Dimensions and Weight Dimensions and Weight
Height 1.55in (39.0mm)
Width 4.59in (116.6mm)
Depth 4.41in (112.0mm)
Weight (Shipping) 6 lb
Rack Space 1U (2 chassis per 1 rack unit)
Power Power
Power Supply 19V DC 65W 50/60 Hz
Compliance Compliance
Safety and Emissions FCC Part 15 | C-Tick | CE Mark
RoHS Compliant
032814
009-1126-01 009-1126-01
HST-SMRTD / HST-SMRTDR HST-SMRTD / HST-SMRTDR HST-SMRTD / HST-SMRTDR HST-SMRTD / HST-SMRTDR HST-SMRTD / HST-SMRTDR HST-SMRTD / HST-SMRTDR
(HST-SMRTD/HST-SMRTDR)
Quick Reference Guide
Model Number
Refer to the Savant Runtime OS Licensing
- Application Note - 009-0852-02 for details
on Smart Host licenses.
Enterprise-grade network deployment.
See Network Connection Requirements
more information.
Model Number
RCK-4000-xx
Savant Confidential and Proprietary

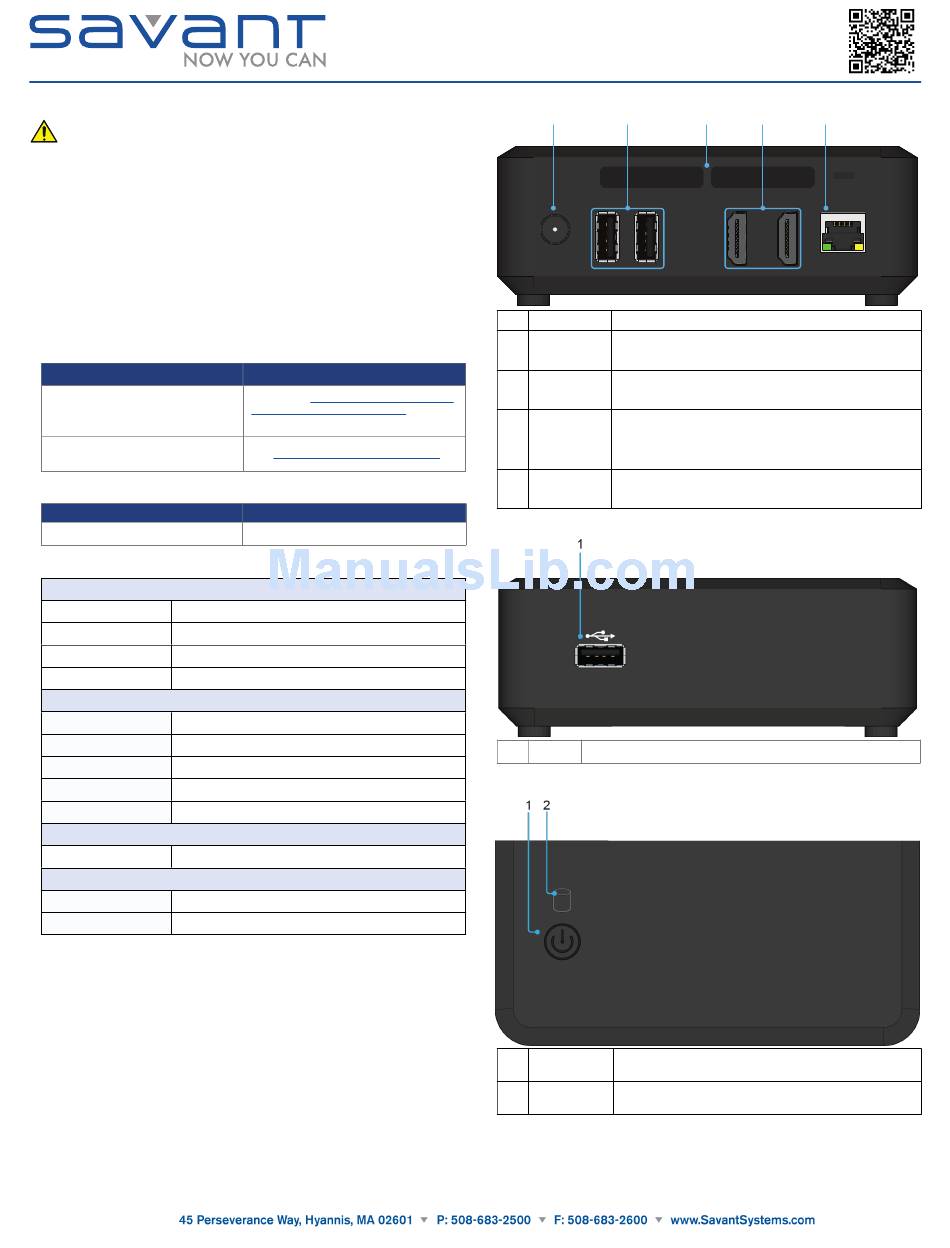

Savant Smart Host
Rear Panel
1
1 Power Supply
USB 2.0
2
Ports (x2)
3 Cooling Vents
HDMI Outputs
4
(x2)
for
5 Network LAN
Front Panel
USB Connection for USB devices such as wireless keyboards/mouse, or USB
1
memory stick.
2.0 Port
Top Panel
1 Power Button
2 HDD LED
Scan this QR code for
additional product
information.
2 3 4
Connection to 19V DC power supply (Included).
Connection for USB devices such as keyboards/mouse or
USB memory stick.
Provides cooling for the internal components.
WARNING! DO NOT block vents in order to maintain proper
cooling.
19-pin Type A HDMI female; digital video/audio outputs; signal
types HDMI, DVI—compatible with DVI/D (requires DVI to
HDMI adapter, not included), allowing DVI/D source signal to
be passed to displays. Limited to 185 MHz pixel clock.
RJ-45 Ethernet 10/100/1000 base-T, auto-negotiating port
with link/activity LEDs.
Use to power On or Off the HST. Icon glows Blue when
powered on.
Solid or Flashes indicating SSD activity. Will increase to solid
with more activity.
5
