Savant SHR-2000 Quick Reference Manual

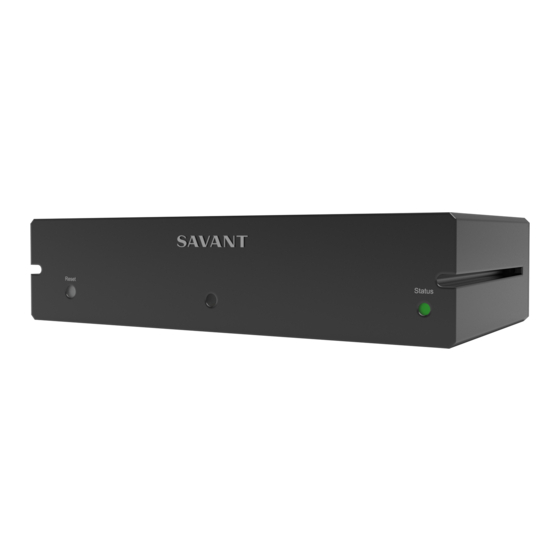

Savant® Smart Host Rack Mountable (SHR-2000)
Quick Reference Guide

Box Contents

(1) Savant® Smart Host Rack Mountable - (SHR-2000)
(1) Install Kit (075-0223-xx)
(1) Multi-Blade 5V DC 3A Power Supply (025-0223-xx)
(2) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(2) 3-pin Screw Down Plug-in Connector (028-9351-xx)
(1) Product and Regulatory Insert (009-1950-xx)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 34.1 BTU/hr
Dimensions and Weights
Height
1.6 in
Device
(4.15 cm)
2.2 in
Shipping
(5.59 cm)
Rack Space 1U
Power
Input Power 5V DC 3A
Maximum Power 15 watts
Power over
IEEE 802.3af
Ethernet (PoE)
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.2

Network Configuration

For information on network requirements, refer to the Savant Device
Networking Guidelines on the
SHR-2000 Quick Reference Guide | 009-1909-03
Copyright © 2021 Savant Systems, Inc. | 210611
Width Depth Weight
8.5 in 3.7 in 1.4 lbs
(21.50 cm) (9.33 cm) (0.64 kg)
12 in 7.3 in 2.3 lbs
(30.48 cm) (18.54 cm) (1.05 kg)
CE C-Tick
Savant Community.

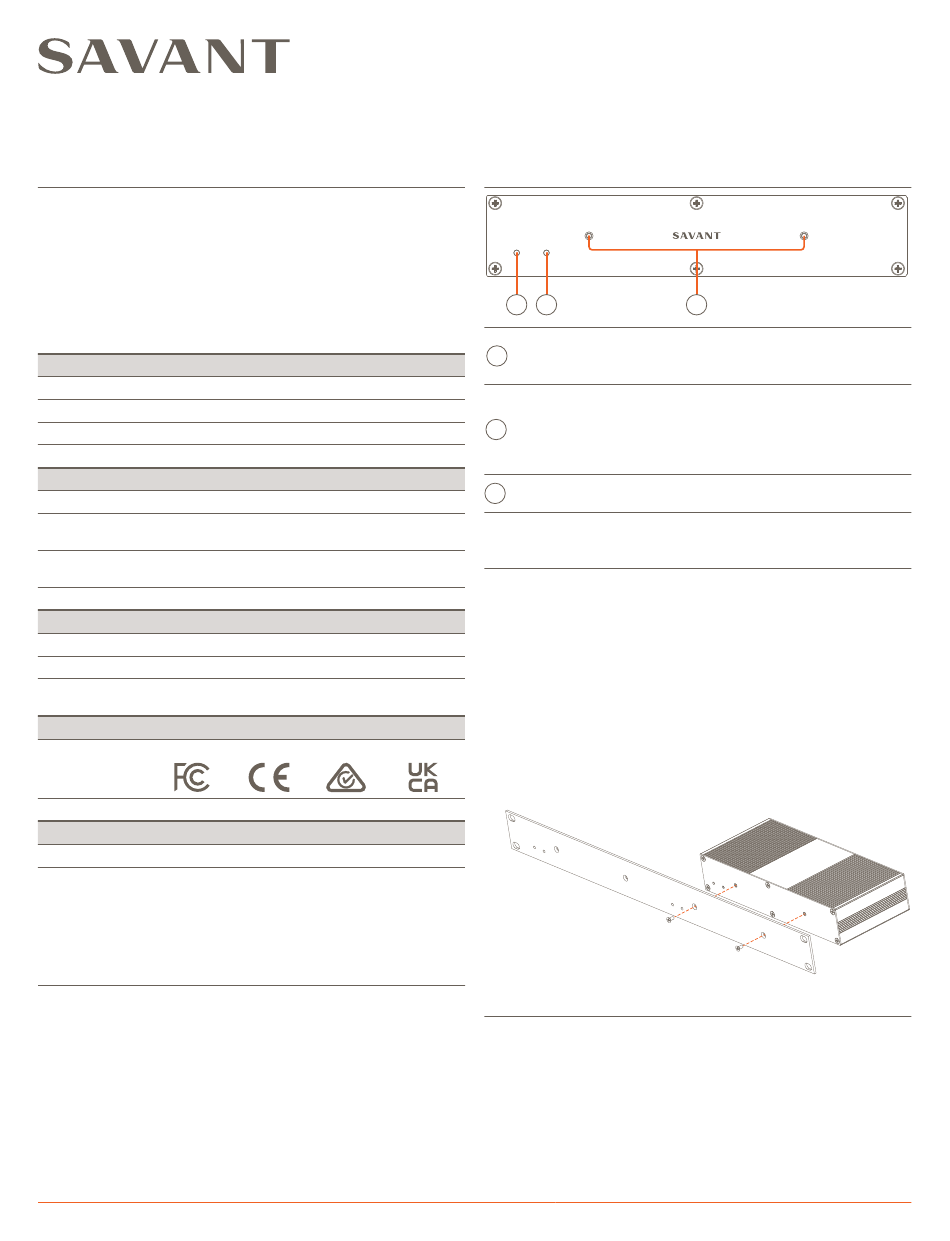

Front Panel

Power Status
A B
A
Power LED
B
Status LED
Mounting
C
Points

Chassis Installation

The Smart Host can be installed on a solid, flat, level surface such as a
table, cabinet, or shelf. The location should be dry, well ventilated, and
out of direct sunlight.
Rack
The optional RMB-PAVAM2F-xx or RMB-PAVAM2-xx allows two
devices to be mounted side by side. For example, a Smart Host can
be mounted next to a PAV-AIM7C. This rack is compatible with all
standard 19-inch National Electrical Manufacturers Association (NEMA)
rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way they just face different directions.
UKCA
1. Align the bracket with the Smart Host mounting points.
2. Attach using the screws provided with the bracket.

Refreshing the IP Connection

After connecting to a new network, changing routers, or if the IP
Address range in the router was changed, the IP connection should be
refreshed. To refresh the IP connection, do one of the following:
– Hot Plug the Ethernet (LAN) Connection
– Cycle power
1 of 2
C
Green: System has power and is operating
normally.
Off: System is not receiving power.
Off: Disconnected from power supply.
Amber: Host is booting/rebooting and is
disconnected from the network.
Green: Connected to the local network and is
assigned an IP Address.
Threaded insert for use with optional rack
mounts
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
