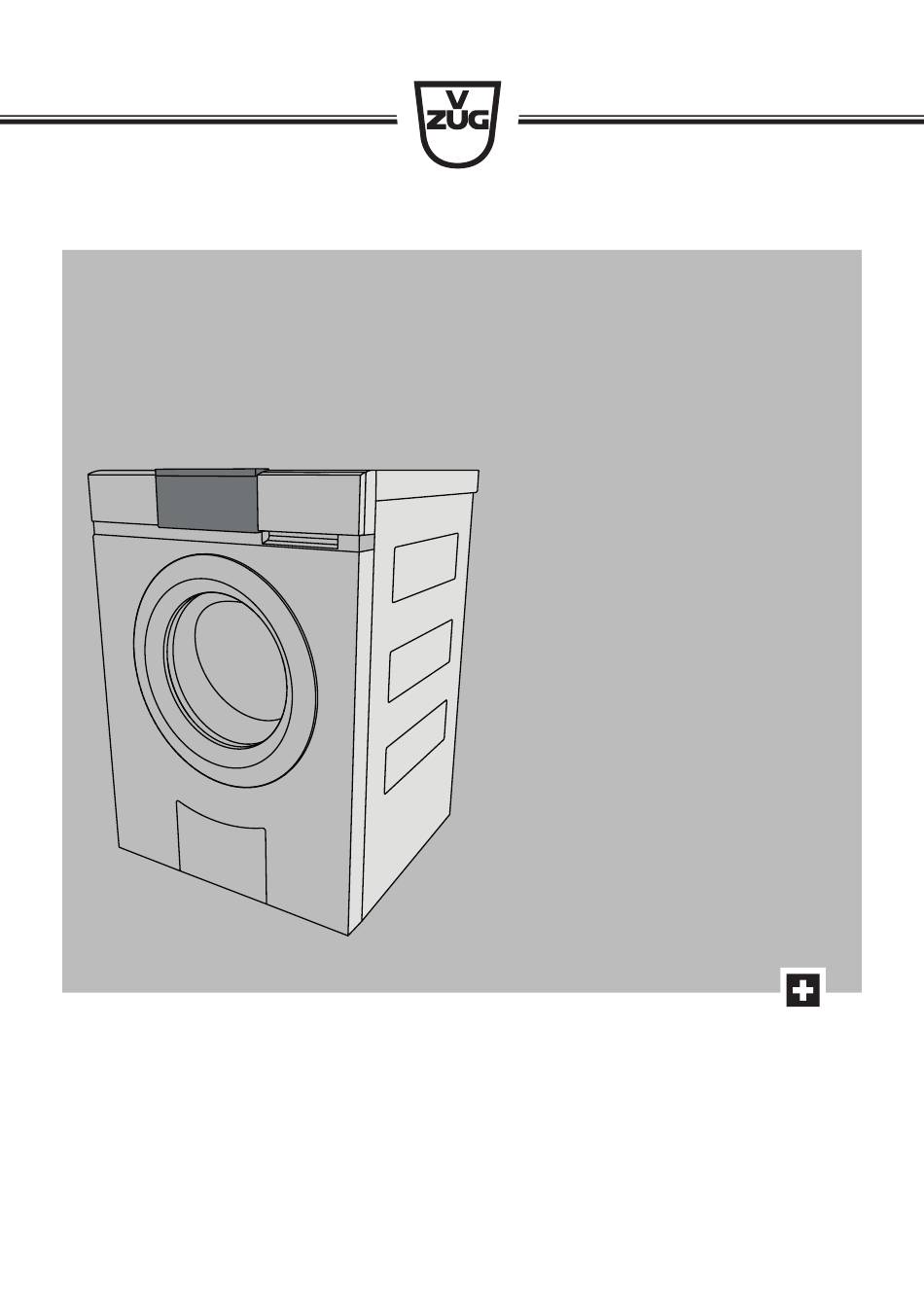

  • Page 1 Operating instructions AdoraWash V2000 Washing machine...
  • Page 2 Validity These operating instructions apply to: Model designation Type AdoraWash V2000 AW2T-11021 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2021...

  • Page 3: Table Of Contents

    Preparations............ 13 8.13 Childproof lock............  26 Loading the washing........... 14 8.14 Drum illumination..........  26 Adding washing detergent......... 14 8.15 V-ZUG-Home............  26 Detergent dosage.......... 15 8.16 Factory settings.............   26 Dyeing textiles ............ 16 Demo mode  26 Selecting programme ......... 16 Switching on ............  26 Selecting additional functions ...... 17...
  • Page 4 Trouble-shooting  31 11.1 Error messages............ 31 11.2 Other possible problems........ 33 11.3 Unsatisfactory wash results ....... 35 Spare parts  37 Technical data  38 13.1 Note for testing institutes ........ 38 13.2 Consumption values ........... 38 13.3 Product fiche ............ 39 13.4 VAS Vibration Absorbing System ..... 39 13.5 Water and energy economy ...... 39 Washing tips...

  • Page 5: Safety Warnings

    Safety warnings Symbols used Cleaning and user mainten- ance shall not be undertaken Denotes important safety precau- tions. by children without supervi- Failure to observe said precautions sion. can result in injury or in damage to ▪ If an appliance is not the appliance or fittings! equipped with a mains cable Information and precautions that...

  • Page 6: Instructions For Use

    1 Safety warnings ▪ Textiles that have been cleaned, treated Instructions for use or soaked with flammable chemicals, Before using for the first time detergents or solvents such as ben- ▪ The appliance must be installed and zene, alcohol, stain remover, oil, paint, connected to the electricity supply in wax, etc.
  • Page 7 1 Safety warnings ▪ During longer periods of absence, turn off the water tap before switching off the power by pulling out the mains plug. Never pull the mains plug out by the cable. Please note: The built-in over- flow protection is rendered inactive when the power is switched off.

  • Page 8: Using For The First Time

    Using for the first time The appliance must be installed and connected to the electricity supply in accord- ance with the separate installation instructions. Have a qualified fitter/electrician carry out the necessary work. Transport lock Remove the transport lock (hexagon head screws at the back of the appliance) in order to avoid damage to the appliance (see installation instructions).

  • Page 9: Operating And Display Elements

    3 Appliance description Operating and display elements Operating panel Operating panel Buttons V-ZUG-Home display Door opener TouchDisplay Without function Indicator lights Without function Extra programmes Start/Pause/Drum illumination End of programme / Fast forward Favourites TouchDisplay Buttons Coloureds Textile programmes Select temperature Whites 95 °C...

  • Page 10: Indicator Lights

    4 Programme overview Indicator lights Indicator light Activity State Indicator light is il- Function is active. luminated. Indicator light is Function is selectable. flashing. Indicator light is Function is not selectable. not illuminated. Button state Background colour Symbol colour State Blue White Function is active.

  • Page 11: Textile Programmes

    4 Programme overview eco 40-60 Efficient programme. Suitable for washing The consumption values are de- scribed in the section on «Technical cotton laundry with the fabric data» (see page 38). care symbol together. Coloureds 40 °C For coloured cottons and mixed washing ▪...

  • Page 12: Extra Programmes

    4 Programme overview Extra programmes eco 40-60 Efficient programme. Suitable for washing The consumption values are de- scribed in the section on «Technical cotton laundry with the fabric data» (see page 38). care symbol together. Additional functions Whenever a programme is selected, the selectable additional functions are displayed. Easy care For washing requiring very gentle treatment.

  • Page 13: Operating The Appliance

    5 Operating the appliance Sprint Quick programme for lightly soiled washing. 2 instead of 3 rinsing cycles. The maximum load is 2.5 kg. : 28 mins. : 32 mins. : 35 mins. : 45 mins. Add only a small amount of washing detergent when using the Sprint programme. A large washing load or too much washing detergent can significantly extend the programme time.

  • Page 14: Loading The Washing

    5 Operating the appliance Loading the washing ▸ Load up to a maximum of 8 kg dry washing. ▪ Full: Normally soiled whites and coloureds ▪ Max. ¾: Heavily soiled whites and coloureds ▪ Max. ½: Easy care cottons, white and coloured synthetics as well as mixed fabrics ▪...

  • Page 15: Detergent Dosage

    5 Operating the appliance Powder detergent ▸ Pull the detergent dispenser drawer out as far as it will go. ▸ Pull flap 1 upwards and out and insert into posi- tion a. Compartments Conventional washing Pre-wash detergent Compartment I Main wash detergent Compartment II Fabric conditioner Compartment...

  • Page 16: Dyeing Textiles

    5 Operating the appliance After adding the washing detergent ▸ Push the detergent dispenser drawer back in. ▸ Select a programme (see page 16). Dyeing textiles Textiles can be dyed in the appliance using suitable dyeing agents. Follow the manufac- turer’s safety instructions and warnings.

  • Page 17: Selecting Additional Functions

    5 Operating the appliance ▸ Touch the button for the desired temperature, e.g. – The programme selected and all selectable ad- ditional functions appear in the TouchDisplay. ▸ Touch the button. – The programme selected starts. Extra programmes ▸ Close the appliance door. Extra –...

  • Page 18: Separate Rinsing/Spinning

    5 Operating the appliance ▸ Touch the button. 1 h 00 60°Coloureds – The delayed start time starts. End 16 : 13 – The desired programme starts so that it fin- ishes at the set programme end time. Washing can be added at any time during the delayed start time (see page 20). Selecting programme start time The option «Programme start»...

  • Page 19: Aborting A Programme

    5 Operating the appliance 5.11 Aborting a programme Once a programme has started, only the spin speed can be changed. For any other changes, the programme must be aborted. ▸ Touch the button repeatedly until «Draining» is displayed. – This part of the programme cannot be skipped and will be carried out in full.

  • Page 20: Opening The Appliance Door During Washing

    5 Operating the appliance 5.14 Opening the appliance door during washing The appliance door can be opened when the indicator light for the button is illumin- ated. ▸ Touch the button. – The appliance door opens. – Laundry can be added or removed. ▸...
  • Page 21 5 Operating the appliance ▸ Touch the button 2×. – The washing is not spun. – The water is pumped off. Hygiene recommendation Washing almost exclusively with low temperatures will result in the formation of foul smelling coatings in the appliance. To prevent this, a «Hygiene recommendation»...

  • Page 22: Favourites

    6 Favourites Favourites The appliance door has to be open to define, change or delete a favourite. Defining and saving favourites ▸ Touch the button. Define favourite – The appliance door opens. ▸ Touch the button. empty – The Favourite programmes menu appears in empty the TouchDisplay.

  • Page 23: Starting Favourites

    – A 6-digit PIN appears in the display of the appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 24: User Settings

    8 User settings User settings Providing no programme is running and no error messages are displayed, the user settings can be changed. Changing the user settings ▸ Close the appliance door. Extra ▸ Touch the button. – The selection of extra programmes appears in eco 40-60 the TouchDisplay.

  • Page 25: Date And Time

    8 User settings Date and time Time and date must be reset after the power supply ▪ Automatic summer/winter has been interrupted for about 5 weeks. The appli- time on ance must not be disconnected from the mains sup- ▪ Automatic summer/winter ply for at least 30 minutes after making the settings.

  • Page 26: Hygiene Info

    8.15 V-ZUG-Home With V-ZUG-Home (see page 23), you can access ▪ Operate and display your appliances over the V-ZUG App to, for instance ▪ Display ▪ Off (factory setting) ▪ switch off a running appliance ▪ call up the status of your household appliances.

  • Page 27: Switching Off

    10 Care and maintenance ▸ Touch the button. – The demo mode is selected. ▸ Touch the button. – The demo mode is switched on. – The TouchDisplay goes dark. Switching off ▸ Touch the button. – The appliance door opens. –...

  • Page 28: Cleaning The Water Inlet Filter

    10 Care and maintenance Cleaning the siphon and suction tube ▸ Pull siphon 1 in fabric conditioner compartment upwards and out. ▸ Clean the siphon 1 and suction tube 2. – Insert the siphon 1 again correctly. 10.3 Cleaning the water inlet filter Test the water inlet for leaks following maintenance work.

  • Page 29: Cleaning The Foreign Body Trap

    10 Care and maintenance ▸ Empty the drain tray and then put it back, pushing it in straight as far as it will go. The drain tray can be removed and a larger receptacle used in its place to drain- ing off the water.

  • Page 30: Cleaning The Drum Illumination

    10 Care and maintenance ▸ Put the drain tray back and close it to. 10.6 Cleaning the drum illumination ▸ If necessary, wipe carefully with a soft cloth. 10.7 Opening the appliance door in the event of a power failure Wait until the washing drum is completely stationary.
  • Page 31 11 Trouble-shooting If the emergency door release tool is missing, a screw driver can be used instead. Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself. If not, note down the error message in full (message, F and E numbers) and call Customer Services. 11.1 Error messages Display...
  • Page 32 11 Trouble-shooting Display Possible cause Solution F6/E77 ▪ Anti-leak protection was ▸ Turn off water tap. triggered. ▸ Note down error message in full and see instructions appliance's SN. SN XXXXX XXXXXX ▸ Touch the button. ▸ Call Customer Services. ▪...
  • Page 33 11 Trouble-shooting Display Possible cause Solution Hygiene recom- ▪ No wash cycle has ▸ With one of the next wash cycles mendation been carried out at a carry out a wash with at least 60° C. temperature of at least 60 °C for a longer period of time.
  • Page 34 11 Trouble-shooting Problem Possible cause Solution Water sounds ▪ The vanes are filled with ▸ The water is automatically pumped after programme water to compensate off. No action is necessary. has finished when the unbalanced load. washing drum is turned by hand. Traces of condi- ▪...
  • Page 35 11 Trouble-shooting Problem Possible cause Solution The appliance ▪ The appliance door ▸ No solution possible. door opens when opens automatically no programme is within 5 minutes to al- running or when a low the washing drum programme has and door seal to dry finished, even between wash days.
  • Page 36 11 Trouble-shooting Result Possible cause Solution Grey residue on ▪ Grease and dirt ▸ Increase detergent dosage. washing particles left behind. ▸ Use heavy-duty washing detergent. ▪ Residue from detergent, ▸ Adjust amount of detergent to water limescale and dirt hardness and degree of soiling of washing.
  • Page 37 V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of...
  • Page 38 13 Technical data Technical data General notes Height 85 cm Width 59.5 cm Depth 62.5 cm Weight 64  kg Pumping height of pump 1.2 m Load capacity 8  kg dry washing Connection to water supply Cold water G¾" Permitted pressure of water sup- 0.1–0.6 MPa (1–6 bar) Max.
  • Page 39 14 Washing tips A) Rated capacity [kg] B) Programme duration [hours and minutes] C) Energy consumption [kWh/cycle] D) Water consumption [litres/cycle] E) Maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle [degrees Celsius] F) Remaining moisture content after the washing cycle [percent] G) Spinning speed at which remaining moisture content F) was achieved [rpm] 13.3...
  • Page 40 14 Washing tips Spin speed The energy consumption, noise and remaining moisture content of subsequent tumble drying depend on the spin speed set. The higher the spin speed in the spinning phase, the higher the noise and the lower the remaining moisture content of the washing at the end of the programme.
  • Page 41 15 Disposal Disposal 15.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 15.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 42 Index Energy efficiency eco 40-60........ 11, 12, 39 Aborting Energy-efficient washing Programme entry .........  18 Delayed start .......... 12 Running programme ........ 19 Extra programmes ..........9 Appliance disposal .......... 41 Starting............  17, 24 Appliance hygiene Starting............ 21 AquaPlus ............12 Factory settings ..........
  • Page 43 Starting............ 16 Type............... 2 Using for the first time........8 Validity..............2 VAS Vibration Absorbing System ....39 V-ZUG App ............23 V-ZUG-Home............9 Switching on mode........ 26 Warranty extensions ........47 Water hardness ..........15 Whites programme ........9, 10 Starting............
  • Page 44 Notes...
  • Page 47 V‑ZUG service centre. Technical questions, accessories, warranty extensions V-ZUG is happy to help you with any general administrative or technical queries, to take your orders for accessories and spare parts and to inform you about our progressive service agreements.
  • Page 48 ▸ Press the button. Programme starts. When programme has finished ▸ Press the button and unload the laundry. ▸ Clean detergent dispenser drawer. ▸ Push appliance door to, but do not close. 1098083-03 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug info@vzug.com, www.vzug.com...
