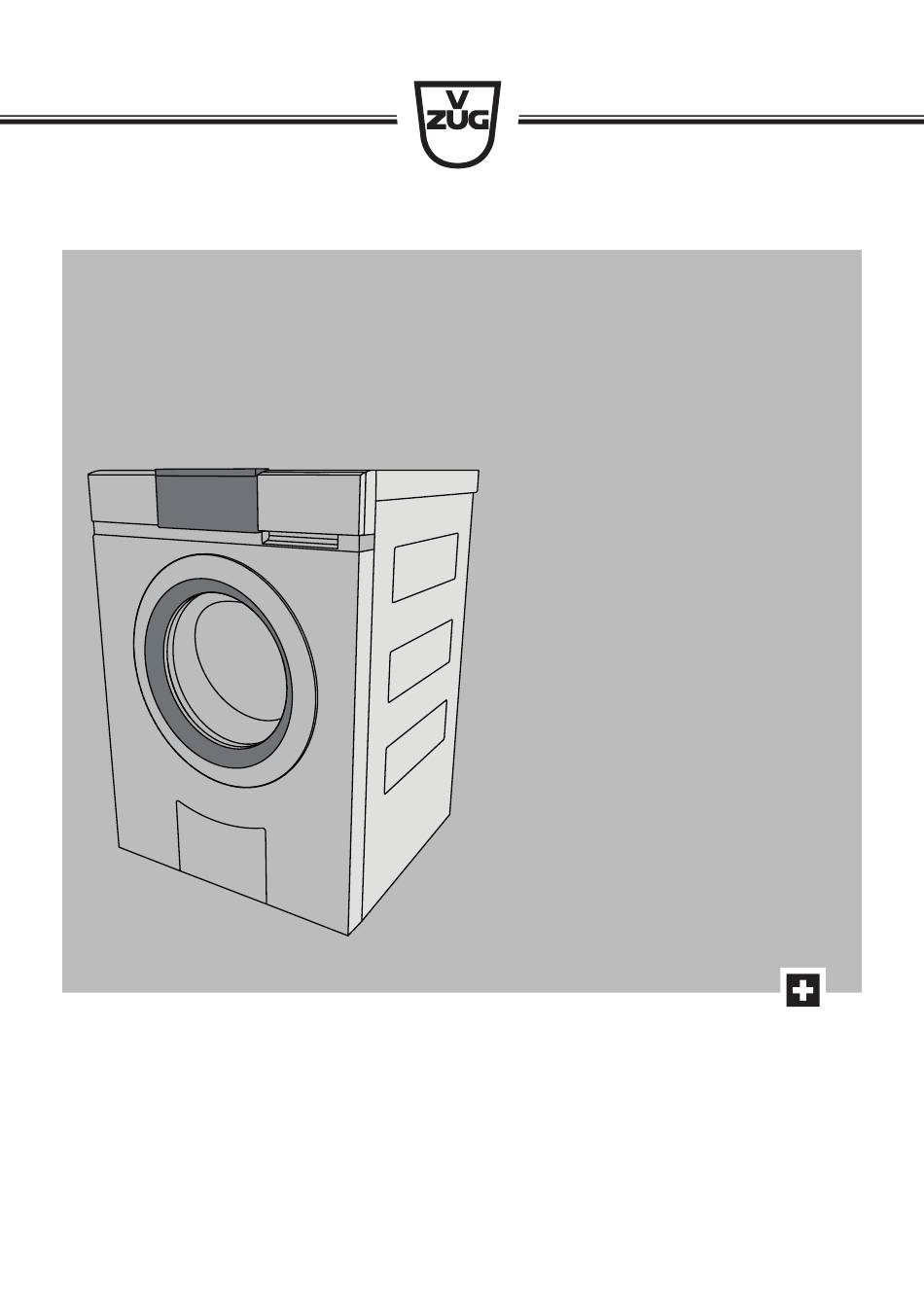

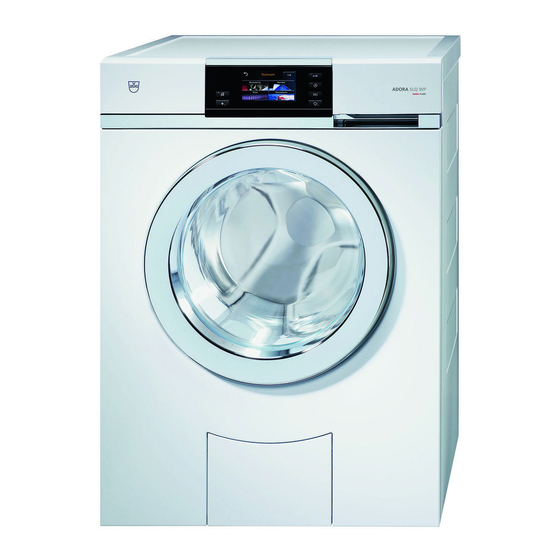

  • Page 1 Operating instructions Adora SLQ WP Washing machine...
  • Page 2 © V-ZUG Ltd, CH-6302 Zug, 2016...

  • Page 3: Table Of Contents

    Contents Changing favourites .......... 26 Appliance description  7 Deleting favourites.......... 27 Appliance construction ........ 7 Starting favourites.......... 27 Indicator lights and button state ......  7 User settings  28 Operating and display elements......  8 Programme overview  9 Care and maintenance  32 Whites and coloureds programmes.... 9 Cleaning the detergent dispenser drawer (as required) .............. 32 Standard and extra programmes.....
  • Page 4 Safety precautions ently installed electrical install- Read the operating instructions before using the appliance for the first time. ation in accordance with the installation regulations. General safety precautions ▪ If the mains cable of this ap- ▪ This appliance can be used pliance is damaged, it must by children aged 8 and above be replaced by the manufac-...
  • Page 5 Safety precautions functioning of the appliance. If the appli- Correct use ance is not working properly or in case a The appliance is only suitable for washing repair is needed, follow the instructions home textiles with water and regular washing given in the «Service and repairs»...
  • Page 6 These operating instructions washing apply to: ▸ Add a little washing detergent to compart- ment II. Model Adora SLQ WP ▸ Run an empty coloureds 60 °C cycle to WAASLQWPZ Type remove any residues from the manufactur- ing process.

  • Page 7: Appliance Description

    Appliance description Appliance construction Detergent dispenser drawer (2) Drain tray (5) Pivoting operating panel Fabric conditioner, compartment Detergent dispenser drawer Liquid detergent flap / drain tray opener Appliance door 10 Siphon for fabric conditioner Circulation nozzle 11 Emergency door release tool Drain tray 12 Foreign body trap Pre-wash detergent, compartment I...

  • Page 8: Operating And Display Elements

    1 Appliance description Operating and display elements Coloureds Select temperature cold Door opener Whites and co- 60°C Coloureds 60°C Coloureds 1 h 00 1 h 00 End 16 : 13 End 16 : 13 TouchDisplay loureds programmes Fabric types Standard and Start/Pause extra programmes Fast forward/...

  • Page 9: Programme Overview

    2 Programme overview Programme overview To select the right programme, please follow the fabric care symbols on the laundry labels, e.g. . woollens and textiles with the fabric care label may only be washed using the additional function «Hand wash». Whites and coloureds programmes Buttons Programmes Fabric care...

  • Page 10: Fabric Types

    2 Programme overview Fabric types Buttons Programmes Load capacity Coloureds: Standard programme 1–8 kg Shirts: Optimized for minimizing creasing, contains steam max. 7 items anti-crease. Woollens: Gentle treatment for woollens and other delic- 1–2.5 kg ate textiles. Only for woollens with a felt-free finish and la- belled as «machine washable».

  • Page 11: Additional Functions

    2 Programme overview Additional functions Buttons Additional functions Load capacity EcoHybrid: The appliance is equipped with two heating systems: ▪ Heat pump heater (approximately 1 kW heat output) with very low energy con- sumption. Suitable for heating up to 50 °C. ▪ Conventional auxiliary heater (approximately 2.8 kW heat output) with normal en- ergy consumption.
  • Page 12 2 Programme overview Spin speed: The spin speed can be changed. Delicates can be spun at a lower spin speed. However, this increases the drying time (greater energy consumption for tumble drying). Buttons Additional functions Degree of soiling: Adjustment to the degree of soiling of the washing. Light soiling: For lightly soiled washing.

  • Page 13: Ecomanagement

    2 Programme overview EcoManagement Only active if «EcoManagement» is turned on in the user settings. EcoManagement provides information on the energy and water consumption of the appliance and supports the sustainable use of energy. The following con- sumption information can only be retrieved when no programme is running: ▪...

  • Page 14: Operating The Appliance

    3 Operating the appliance Operating the appliance Preparations ▸ Check the foreign body trap is inserted correctly. ▸ Insert the mains plug into a suitable mains socket. ▸ Turn on water tap. ▸ Press the button to open the appliance door. Loading the washing ▸...

  • Page 15: Adding Washing Detergent

    3 Operating the appliance Adding washing detergent Liquid detergent Powder detergent ▸ Pull the detergent dis- ▸ Pull the detergent dis- penser drawer out as far penser drawer out as far as it will go. as it will go. ▸ Pull flap a upwards and out ▸...

  • Page 16: Detergent Dosage

    3 Operating the appliance Detergent dosage Adding too much washing detergent can cause excess foaming, The con- sequences: poor wash results, damage to the appliance in the worst case. The correct dosage depends on the degree of soiling, the wash load, the water hardness and the product used.
  • Page 17 3 Operating the appliance ▸ Touch the button for the de- 60°C Coloureds 1 h 00 sired programme. End 16 : 13 The programme selected, the expected duration, the expec- ted programme end time and the selectable additional func- tions are displayed. The indic- 1200 ator light for the selectable button flashes.

  • Page 18: Selecting Additional Functions

    3 Operating the appliance Selecting additional functions ▸ Touch the button for the de- 60°C Coloureds 1 h 00 sired programme. End 16 : 13 The programme selected ap- pears. All selectable additional functions are displayed. The in- dicator light for the selectable button flashes.

  • Page 19: Delayed Start

    3 Operating the appliance Delayed start Selecting programme end time The option «Programme end, OptiTime off» must be enabled in the user settings under «Pro- gramming delayed start / OptiTime» (see page 30). ▸ Touch the button for the de- sired programme.

  • Page 20: Optitime

    3 Operating the appliance 3.10 OptiTime The option «Programme end, OptiTime on» must be enabled in the user settings under «Pro- gramming delayed start / OptiTime» (see page 30). ▸ Touch the button for the de- sired programme. ▸ Touch the button. Progr.

  • Page 21: Bio Wash / Soap Wash

    3 Operating the appliance 3.12 Bio wash / Soap wash To start Bio or Soap wash, «Multi-component detergent» must be enabled in the user settings (see page 30). Ensure the alkaline detergent or soap detergent are added to the correct compartment (see page 15).

  • Page 22: With Childproof Lock Activated

    3 Operating the appliance 3.15 With childproof lock activated Selecting programme How to turn the childproof lock on/off is described in «User settings». ▸ Close the appliance door. Childproof lock The adjacent TouchDisplay ap- Code pears. ▸ Touch the digits 7, 3, 1 in se- quence.

  • Page 23: Opening The Appliance Door During Washing

    3 Operating the appliance 3.16 Opening the appliance door during washing The appliance door can only be opened if the indicator light for the button is illuminated. ▸ Touch the button. The appliance door opens. Laundry can be added or removed. ▸...
  • Page 24 3 Operating the appliance «Automatic door opener OFF» and «EcoManagement ON» When the programme has finished, the adjacent 60°C Coloureds display appears for about 20 minutes. 0 h 00 ▸ Touch the button to open the appliance door and unload the End of programme washing at any time.

  • Page 25: Ecomanagement Statistics

    3 Operating the appliance 3.18 EcoManagement statistics Energy and water consumption can be displayed before a programme starts or after a programme ends. Displaying the last programme ▸ Touch the button. Last programme The energy and water con- sumption of the last pro- gramme run is displayed.

  • Page 26: Favourites

    4 Favourites Favourites Simple start to frequently used programmes. Note: The appliance door has to be open to define, change or delete a fa- vourite. Defining favourites ▸ Touch the button. ▸ Touch one of the favourite buttons. empty ▸ Select programme and ad- ditional functions.

  • Page 27: Deleting Favourites

    4 Favourites Deleting favourites ▸ Touch the button. ▸ Select the favourite programme to be deleted. 60°C ▸ Touch the button. Clear The favourite programme is deleted. Starting favourites ▸ Close the appliance door. ▸ Touch the button. ▸ Select the desired favourite programme. 60°C ▸...

  • Page 28: User Settings

    5 User settings User settings Preparations ▸ Touch the button. Extra The adjacent TouchDisplay ap- pears. Steam anti-crease ▸ Touch the button. ▸ Select and change desired set- 60° Standard Proofing tings and submenus. Spin Appliance hygiene ▸ Touch the button to save the Settings selected setting.
  • Page 29 5 User settings AquaPlus ▪ Standard: Normal water level. Standard ▪ more water: Increased water level. ▪ + 1 rinse: 1 additional rinsing cycle. ▪ more water + 1 rinse: Increased water Skin protection level, 1 additional rinsing cycle. ▪ Skin protection: Increased water level, 2 additional rinsing cycles.
  • Page 30 5 User settings 5.10 Childproof lock The childproof lock prevents a pro- gramme from being started accidentally. The appliance can only be operated after Off first entering the code 731. 5.11 Automatic door opener When the function is turned on, the appli- Automatic ance door opens automatically when the door opener...
  • Page 31 5 User settings 5.16 Loosening up the washing Touch the button at any time to secs. open the appliance door. The washing can be unloaded. mins. Loosening mins. 6 hrs. 5.17 Brightness The display can be adjusted to the pre- Dark vailing lighting conditions.

  • Page 32: Care And Maintenance

    6 Care and maintenance Care and maintenance Using the correct dosage of detergent will automatically clean the inside of the appliance. Im- mediately wipe away all traces of detergent with a soft cloth to avoid staining. Cleaning the detergent dispenser drawer (as required) Cleaning the detergent compartments ▸...

  • Page 33: Emergency Draining

    6 Care and maintenance Emergency draining The water in the appliance may be hot. Scalding hazard! Allow to cool down be- fore emergency draining. In the event of a blocked water outlet or drain pump, a malfunction or a power failure, if there is water still in the appliance it must be drained off as follows: ▸...

  • Page 34: Cleaning The Foreign Body Trap

    6 Care and maintenance Cleaning the foreign body trap Note: Clean the foreign body trap at regular intervals as well as after washing, for instance, pet blankets or other wash items that cause a thick build-up of fluff. ▸ Open the appliance door. ▸...

  • Page 35: Opening The Appliance Door In The Event Of A Power Failure

    6 Care and maintenance Opening the appliance door in the event of a power failure Wait until the washing drum is completely stationary. A washing drum that is still rotating poses a risk of serious injury. ▸ Close the water tap and disconnect the appliance from the mains. ▸...

  • Page 36: Trouble-Shooting

    7 Trouble-shooting Trouble-shooting You may be able to trouble-shoot the following malfunctions yourself. If not, note down the er- ror message in full (message, F and E numbers) and call Customer Services. Error messages Display Possible cause Solution ▪ The foreign body trap is ▸...
  • Page 37 7 Trouble-shooting Display Possible cause Solution F6/E77 ▪ Anti-leak protection was ▸ Turn off water tap. triggered. ▸ Note down error message in full and see instructions appliance's SN. SN XXXXX XXXXXX ▸ Touch the button. ▸ Call Customer Services. FXX/EXX ▪...
  • Page 38 7 Trouble-shooting Display Possible cause Solution Foam in main ▪ If there is very heavy ▸ Reduce the amount of washing deter- wash: foaming, the programme gent used next time. ▸ Adjust detergent dosage to water hard- Rinsing extended is automatically extended ness (see page 16).

  • Page 39: Other Possible Problems

    7 Trouble-shooting Other possible problems Problem Possible cause Solution ▸ Increase the spin speed for the next The washing has ▪ The spin speed set is too wash cycle (see page 28). not been spun or low. has been spun in- ▸...

  • Page 40: Unsatisfactory Wash Results

    7 Trouble-shooting Problem Possible cause Solution ▸ Store washing detergent in a dry Traces of powder ▪ Damp or lumpy washing place. detergent in deter- detergent. gent compartment. ▸ Wipe detergent compartment dry be- ▪ Washing detergent com- fore adding the detergent. partment was damp and a delayed start was se- lected.
  • Page 41 7 Trouble-shooting Result Possible cause Solution Grey residue on ▪ Grease and dirt particles ▸ Increase detergent dosage. washing left behind. ▸ Use heavy-duty washing detergent. ▸ Adjust amount of detergent to water ▪ Residue from detergent, hardness and degree of soiling of limescale and dirt washing (see page 16).

  • Page 42: Spare Parts

    8 Spare parts Result Possible cause Solution Holes, rips or tears ▪ Items in the wash with ▸ Fasten zip fasteners and hooks before zips or hooks open. washing. ▸ Wash delicates in a laundry bag or pil- low case. ▸...

  • Page 43: Technical Data

    9 Technical data Technical data Dimensions Spin speed Height 85 cm 400, 600, 800, 1000, 1200, 1400, 1600 rpm Width 59.5 cm Depth 62.5 cm Weight 84  kg Electrical connection Pumping height of pump 1.2 m See identification plate: ▸ Open the drain tray. Dry load capacity 8  kg The identification plate is...

  • Page 44: Consumption Values

    9 Technical data Consumption values The consumption data and programme times given serve only as a guide. They refer to the maximum load capacity and can vary with, for instance, towelling material, a very cold water feed, the degree of soiling selected or a smaller wash load. The time remaining shown and the programme end time are adjusted accordingly.

  • Page 45: Vas Vibration Absorbing System

    10 Washing tips Underwear 30 °C 1h25 Baby garments 1200 2h25 60 °C Denim 40 °C 1200 1h47 WetClean 20 °C 1h00 Net curtains 30 °C Stop after 1h15 rinsing Black garments 1200 1h50 40 °C Black hand wash 1h05 20 °C Factory setting VAS Vibration Absorbing System As the washing drum starts to spin, if the control unit detects that the load is out of balance it will interrupt the spinning action once or more.

  • Page 46: Avoiding Damage

    10 Washing tips Spin speed How much energy is consumed by subsequent tumble drying depends on the spin speed set. The higher the spin speed set, the lower the remaining moisture content of the washing at the end of the programme. 1600 1400 1200...

  • Page 47: Disposal

    11 Disposal Disposal 11.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 11.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...

  • Page 48: Quick Instructions

    You will find them on the identifica- V-ZUG will be happy to help you with any tion plate of your appliance. general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progressive service agreements.
