QUICK START GUIDE
v.1.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINK-MICRO-S-LTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spypoint LINK-MICRO-S-LTE

Summary of Contents for Spypoint LINK-MICRO-S-LTE

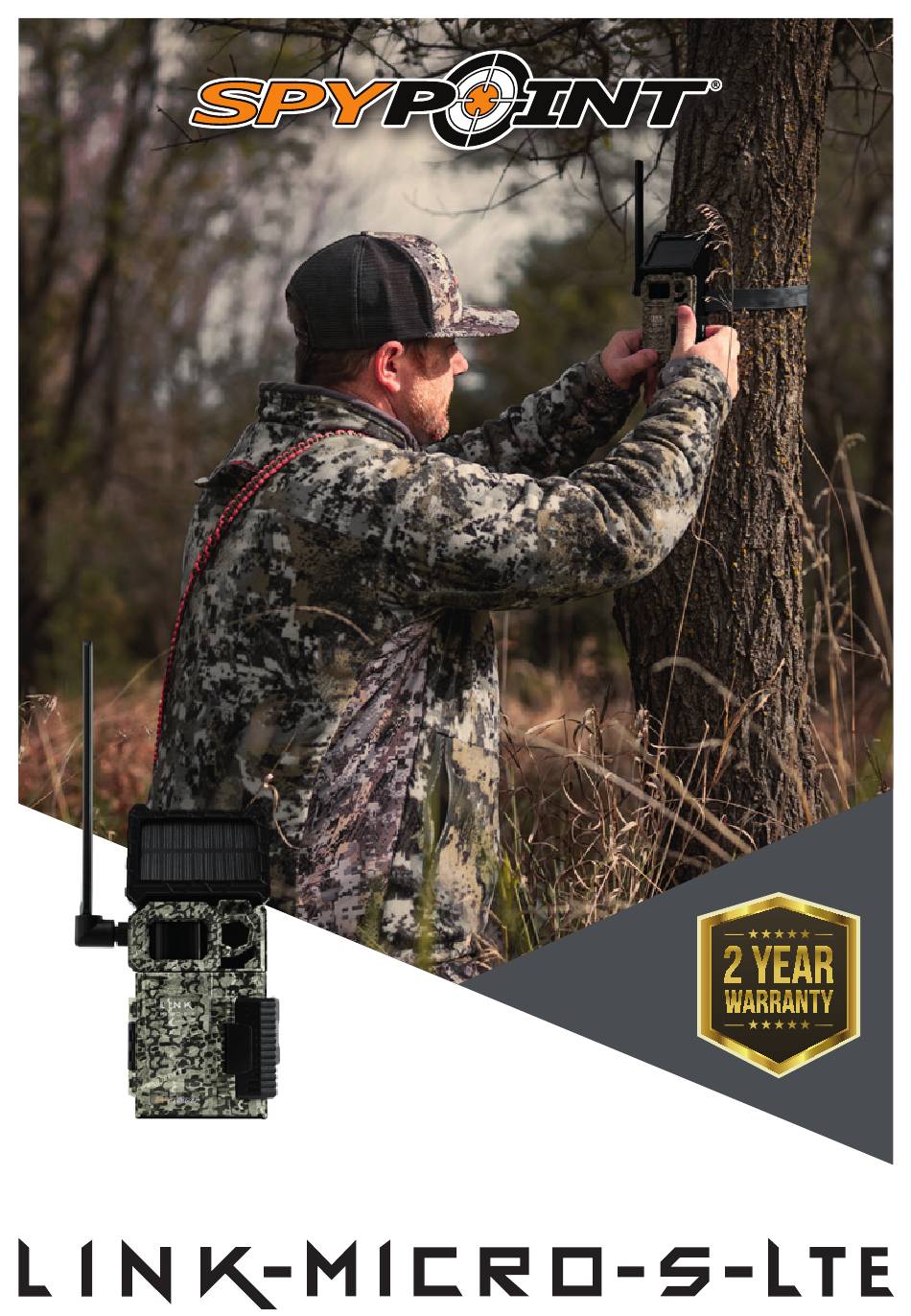

  • Page 1 QUICK START GUIDE v.1.6...
  • Page 2 IN THE BOX 1x LINK-MICRO-S-LTE camera 1x LIT-10 lithium battery pack 1x Micro-USB cable 1x SIM card (preactivated and inserted in the camera) 1x Antenna holder 1x Installation strap 1x Quick Start Guide NOTE Memory card is sold separately. User Manual, latest firmware, and FAQ available at: www.spypoint.com/en/support...

  • Page 4: Getting Started

    GETTING STARTED CHARGING THE LITHIUM BATTERY • Remove the lithium battery pack from the packaging. It is shipped with the camera. • Using the included micro-USB cable and a 5 V wall outlet charger (not included), recharge the battery pack for about 12 hours.
  • Page 5 • Simply plug the 12 V cable into the 12 V jack of the camera and connect the other cable end to the 12 V battery. You can check the battery level using your SPYPOINT app. However, for an accurate reading, it is important to select...
  • Page 6 • The camera solar panel will not recharge an external 12 V battery. LITHIUM BATTERY PACK SPECIFICATIONS This lithium battery is compatible with all SPYPOINT LINK-MICRO cameras and the CELL-LINK. Charging time ≈ 12 hours (with USB cable)
  • Page 7 • If the battery is leaking or emitting an odor, it must be immediately removed from any flame. The leaking electrolyte can ignite and cause a fire or explosion. • Do not charge the battery if it looks abnormal in any way (discolored or deformed).

  • Page 8: Installing A Microsd Card

    10 microSD card between 2 GB and 32 GB of memory. Before inserting the microSD card in your camera, it must be formatted to ensure proper operations. Visit www.spypoint. com/en/support if you need help formatting your microSD card.
  • Page 9 ACTIVATE YOUR CAMERA Before you can use your camera, you must activate it.  To do so, you will need the activation code. FINDING THE ACTIVATION CODE The activation code is located inside the LINK-MICRO-S-LTE's battery compartment. Activation code...
  • Page 10 To activate your camera, you have two choices: you can either do it via the SPYPOINT app or via our website www.spypoint.com. SPYPOINT APP If you choose to use the SPYPOINT app to activate your device, follow these steps: 1. On Google Play or the App Store search for “SPYPOINT app”.

  • Page 11: Configuring Your Camera

    3. When complete, a confirmation email with instructions on how to finalize the creation of your account will be sent to you. 4. On the SPYPOINT website, log in to your account using your email address and password. CHOOSING A PHOTO TRANSMISSION PLAN FOR YOUR CAMERA Go to www.spypoint.com/en/spypoint-experience/plans...
  • Page 12 CONFIGURATION: MAIN SETTINGS Delay: Allows you to set the time interval between each detection before the camera records the next photo or video. Multi-shot: Allows you to set the number of photos per detection (up to 2) with a 5-second delay between each photo. Sensitivity: Allows you to set the detection sensitivity of the camera.

  • Page 13: Starting Your Camera

    STARTING YOUR CAMERA 1. Turn ON the camera. 2. The green STATUS light will flash while searching for a signal (can take a few minutes). 3. The STATUS light will light up in one of the following 3 colors: Red: Insufficient signal Orange: Acceptable signal Green: Optimal signal 4.
  • Page 14 DISPOSAL ONLY USE ORIGINAL SPARE PARTS AND ACCESSORIES. If, one day, your camera has been used so intensively that it has to be replaced, or if you no longer have any use for it, you are obliged to dispose of it at a recycling center. Information on return points for your electrical appliance can be obtained from your local waste disposal company or from your local administrative offices.
  • Page 15 FREQUENCY FREQUENCY RANGE: 800/850/900/1900/2100 MHz MAXIMUM TRANSMISSION POWER: FREQUENCY MAX. GSM850 33DBM±2DB EGSM900 33DBM±2DB DCS1800 30DBM±2DB PCS1900 30DBM±2DB GSM850 (8-PSK) 27DBM±3DB EGSM900 (8-PSK) 27DBM±3DB DCS1800 (8-PSK) 26DBM±3DB PCS1900 (8-PSK) 26DBM±3DB UMTS 2100 24DBM+1.7/-3.7DB UMTS 1900 24DBM+1.7/-3.7DB UMTS 900 24DBM+1.7/-3.7DB UMTS 850 24DBM+1.7/-3.7DB UMTS 800 24DBM+1.7/-3.7DB...

  • Page 16: Warranty

    2-year warranty. We strive to provide our customers with a positive experience and an outstanding service. For a complete list of specifications, features, and settings, visit our LINK-MICRO-S-LTE page at www.spypoint.com FAQ, User Manual & latest firmware available at www.spypoint.com/support Live chat support at www.spypoint.com...
