Page 1: User Manual

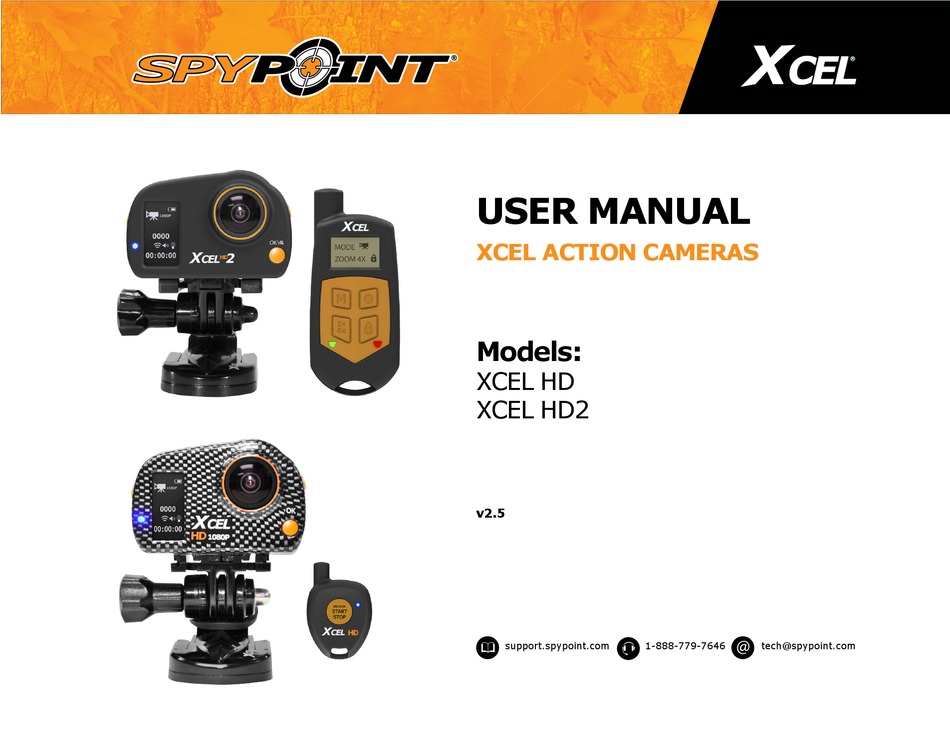

USER MANUAL XCEL ACTION CAMERAS Models: XCEL HD XCEL HD2 v2.5 support.spypoint.com 1-888-779-7646 tech@spypoint.com ... - Page 2 Our priority is to provide outstanding customer service. If you need product promotion. Our priority is to provide outstanding multilin- support for your product, please contact the SPYPOINT-XCEL tech- gual customer service. nical service or visit our website.
-
Page 3: Table Of Contents
Configuration modes ............11 Operation of the LED lights and screen depending on selected options ................12 Remote control XCEL HD ................14 XCEL HD2 ................. 15 Charging the battery ............17 Memory card ..............18 Transferring files to a computer ........18 Maintenance of the camera .......... -
Page 4: Package Contents
Quick release stands Lithium-ion Camera with Camera with remote control remote control with safety ring (2) Polymer battery slide adaptor slide adaptor (XCEL HD) (XCEL HD) (XCEL HD2) (XCEL HD2) HDMI and Lens Carrying Lens cleaning XCEL Wrist strap USB cables... -
Page 5: Components
Components FRONT VIEW BOTTOM VIEW ON/OFF & START/STOP MICROSD BUTTON WIDE ANGLE LENS SLOT MODE BUTTON BACK HEAT BUTTON MICRO SINK USB PORT MOUNT MICRO SYSTEM MIC IN HDMI PORT BUTTON MICROSD SLIDE ADAPTOR SLOT ANCHORAGE... -
Page 6: Getting Started
Getting started INSERTING THE MICROSD CARD BUTTON FUNCTION Insert a microSD memory card in the card slot, gold : ON-OFF/ START-STOP contacts facing up. The card is inserted correctly when 2. M: Changes mode/ Next a click is heard. 3. OK: Confirm entries/ Zoom (+)* 4. -
Page 7: Included Accessories Installation
Included accessories installation WATERPROOF HOUSING QUICK RELEASE STAND WITH SAFETY RING SPORT EDITION HUNTING EDITION 360° ROLL BAR MOUNT BOW MOUNT 90° & STRAIGHT EXTENDERS SCOPE MOUNT CURVED & FLAT ADHESIVE MOUNTS HEAD STRAP MOUNT... -
Page 8: Operation Modes
It is possible to record a video with a maximum duration of approximately Allows the user to set the advanced set- SETTINGS 45 minutes (3.66 GB) for the XCEL HD and approximately 30 minutes (3.66 tings of the camera. GB) for the XCEL HD2. When this maximum is reached, the camera stops recording and automatically starts a new video. - Page 9 Operation modes PHOTO MODE TIME LAPSE MODE • Allows the user to see the current configuration of the PHOTO mode. The TIME LAPSE mode allows to take photos at predefined regular intervals. • Allows you to see the current configuration of the TIME LAPSE mode. 1) Battery level 2) Photo mode 3) Photo resolution...
- Page 10 Operation modes VIEW MODE Here is the information displayed on the television screen depending on the mode selected (VIDEO, PHOTO or TIME LAPSE). • Allows the user to see the number of recorded files and view videos/ photos when the camera is connected to a television. MODE INFORMATIONS VIDEO...
-
Page 11: Configuration Modes
Photo mode (including the Multi-shot mode) 1. Allows the user to take photos in the following resolutions: Sound signal XCEL HD: 1mp, 3mp or 5 mp XCEL HD2: 5mp, 8mp or 12mp Enable or disable the sound of the camera when using the buttons. -
Page 12: Operation Of The Led Lights And Screen Depending On Selected Options
Configuration modes OPERATION OF THE LED LIGHTS AND SCREEN DEPENDING ON SELECTED OPTIONS REMOTE OPERATION OF THE LED LIGHTS AND SCREEN OPERATION OF THE LED LIGHTS AND SCREEN CONTROL LIGHTS BEFORE RECORDING VIDEOS/PHOTOS WHEN RECORDING VIDEOS/PHOTOS OPTION OPTION • The 4 LED lights flash every 2 seconds to indicate •... - Page 13 Configuration modes Note: When the remote control option is enabled (wireless mode [ ON), the camera goes into sleep after 2 minutes of inactivity to maximize battery life. To wake the camera from sleep, do one of the following actions: 1.
-
Page 14: Remote Control Xcel Hd
Remote control • XCEL HD When the camera is on and the REMOTE CONTROL option is enabled, the remote control allows you to take videos and photos in the mode shown on the screen by pressing the START/STOP button. Wireless range up to 40 ft. -
Page 15: Xcel Hd2
Remote control • XCEL HD2 When the camera is on and the REMOTE CONTROL option is REMOTE CONTROL UTILIZATION enabled, the remote control allows the user to take videos and photos in the mode shown on the screen. It is also possible to Allows the user to change the recording mode (Video, Button enlarge the image up to 4x (720p and 480p only). - Page 16 Remote control • XCEL HD2 REPLACING THE BATTERY The light turns on to indicate that the batteries are drained The remote control is powered by a lithium button battery CR2450. To replace the battery : 1. Use small pliers to remove the foam protecting the screws at the back of the remote.
-
Page 17: Charging The Battery
2 hours to 2.5 hours, depending of the different videos resolutions. Video resolution Video recording hours TO CHARGE THE BATTERY: 720p @ 30 fps (XCEL HD) 2h30 1. Using the USB cable included, connect the camera to a USB power 720p @ 60 fps (XCEL HD2) -
Page 18: Memory Card
VLC, Windows Media Player or QuickTime. 8 MP 4950 9900 12 MP 3900 7800 Video 480p @ 60 fps 5h45 11h15 720p @ 30 fps (XCEL HD) 4h45 9h45 720p @ 60 fps (XCEL HD2) 1h55 3h50 1080p @ 30 fps 7h30 3h45... -
Page 19: Maintenance Of The Camera
Maintenance of the camera STORAGE WARNINGS If the camera will not be used for an extended period, the camera should be • Never place the camera or the battery inside or above a heating device stored properly. Remove the lithium-ion polymer battery from the camera such as a microwave oven, a stove or a radiator. -
Page 20: Troubleshooting
SD error • Remove the memory card and insert it again. cate with the XCEL HD • Change the battery in the remote control. • Verify if the gold contacts are not dirty. -
Page 21: Available Accessories
Available accessories obtain more information available accessories, MOUNTING ACCESSORIES xcelcam.com. Here accessories available XCEL cameras. KITS XHD-SPORTACC XHD-HUNTACC Hunting accessories Sport accessories XHD-AM XHD-BM XHD-CHM Adhesive mount Bow mount Chest mount XHD-BJM Ball joint mount and XHD-HK low quick release XHD-CM XHD-DM XHD-DOG... - Page 22 Available accessories PROTECTION AND OTHERS ACCESSORIES XHD-SM XHD-SSM XHD-TPM Suction mount Sling stud Tripod mount mount XHD-FOG XHD-LP XHD-MIC Anti-fog inserts Lens protector External microphone XHD-360RBM MA-360 Roll bar mount Camera mount XHD-TL Tether leash MEMORY HIGH SPEED HAUTE VITESSE Adapter Adaptateur MICROSD...
-
Page 23: Specifications Xcel Hd
Specifications • XCEL HD Video recording Power source Video resolution 1080p/30ips Lithium-ion polymer battery Rechargeable lithium-ion polymer 720p/30ips battery 480p/60ips Dimensions File format .MP4, codec H.264 2.4" W x 1.7" H x 1.6" D Photo Recording Weight Photo resolution 1, 3, 5 MP 2.9 oz (camera with battery) -
Page 24: Xcel Hd2
Specifications • XCEL HD2 Video recording Power source Lithium-ion polymer battery Rechargeable lithium-ion polymer Video resolution 1080p/30ips battery 720p/60ips 480p/60ips Dimensions File format .MP4, codec H.264 2.4" W x 1.7" H x 1.6" D Photo Recording Weight Photo resolution 5, 8, 12 MP 2.9 oz (camera with battery) 5.7 oz (camera with battery and housing) File format... -
Page 25: Regulation
Regulation FCC AND IC REGULATIONS FCC Part l5 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 26: Limited Warranty
Limited warranty and repair INSTRUCTIONS FOR REPAIR SERVICE This XCEL product designed by GG Telecom, is covered by a one (1) year GG Telecom will repair the product without charge or replace it at its discre- warranty on material and workmanship starting from the original date of tion with an equivalent product, if it has a manufacturing defect covered by purchase.
