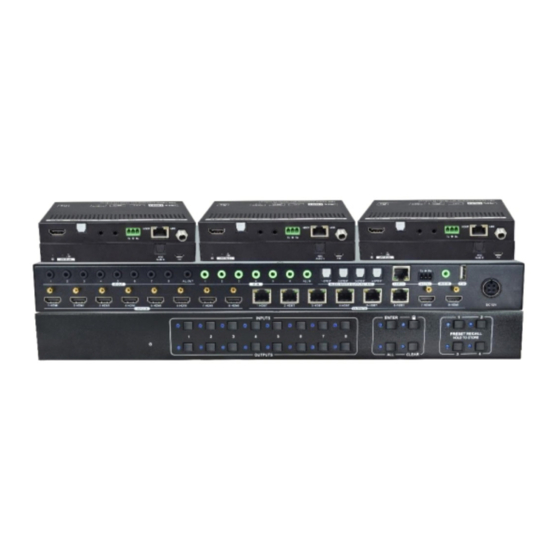

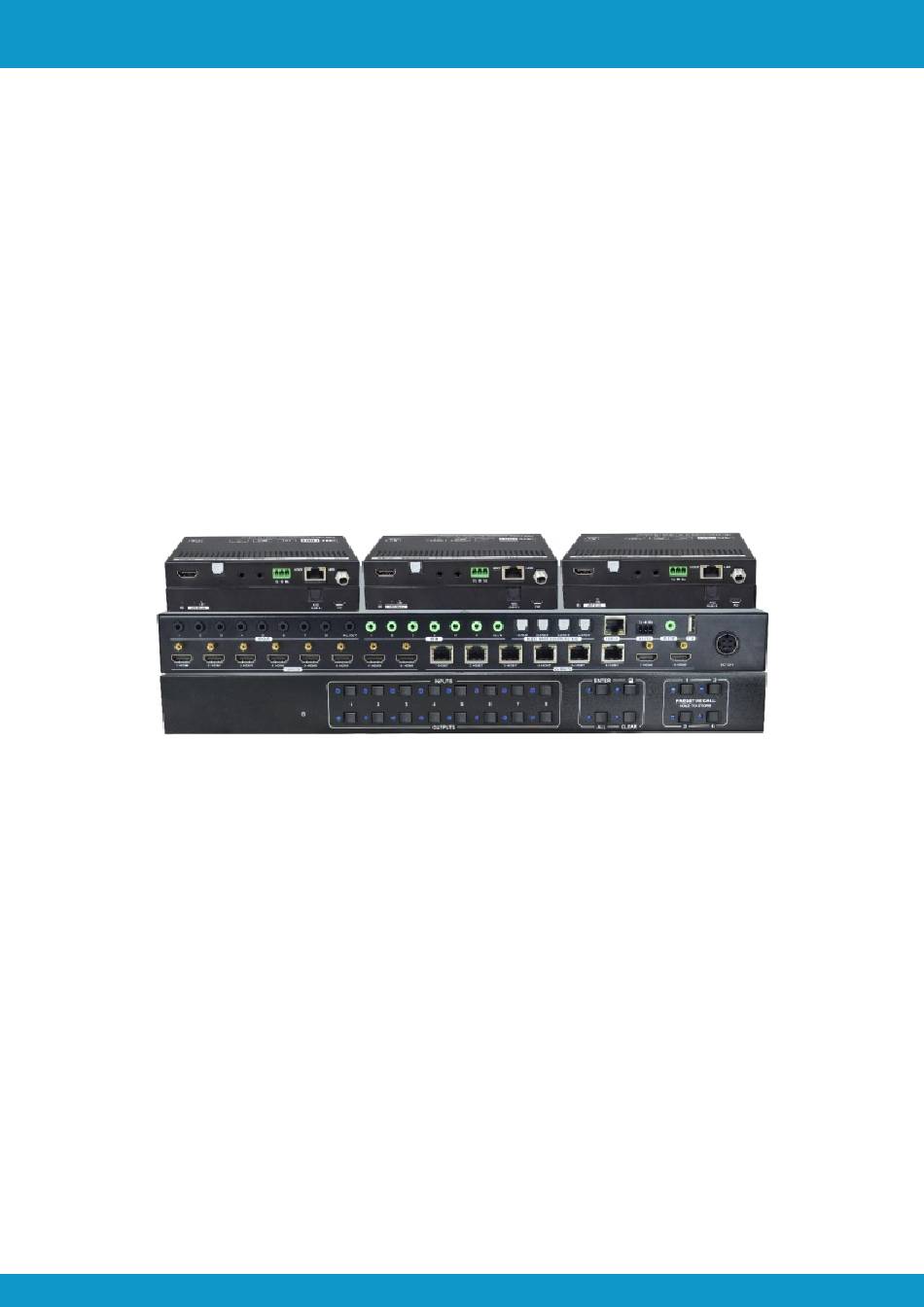

- Page 1 Scion Tech SC36.MX88 User Manual 8 x 6+2 HDMI (HDBaseT) Matrix 18G, 4K/60Hz 4:4:4, HDR SC36.MX88 User Manual Version 1.2 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
- Page 2 These limits are designed to provide reasonable protection against harmful interference in a commercial installation. Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
- Page 3 ● Remove the power if the product is going to be left for long periods without use. ● Information on disposal for scrapped devices: do not burn or mix with general household waste and please treat the product as normal electrical waste. www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
-
Page 4: Table Of Contents
Control a Local Device from a Remote HDBT Receiver--------------------------------------------- Control a Local Device using the IR ALL OUT port------------------------------------------------- Control a Remote Device from the Matrix------------------------------------------------------------- Control a Remote Device using the IR ALL IN port-------------------------------------------------- 10.0 Maintenance and Warranty------------------------------------------------------------------------------------------ www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 5: Introduction, Features And Package Contents
5. 1 x IR Remote Control 5. 1 x 3-Pin Phoenix Terminal 6. 1 x RS232 Cable (3-Pin Phoenix to DB9) 7. 1 x Power Supply (12V 10A) 8. User Manual Page 5 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 6: Specifications
Dimensions: (W) 436 x (D) 44 x ( H) 385 Weight: 4.87kg Colour: Black ESD: Human Body - +/-8kV, (air gap discharge) & +/-4kV (contact discharge) Safety and Emissions: CE, FCC, RoHS Page 6 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 7: Receiver Specifications
Dimensions: (W) 40 x (D) 84 x ( H) 20 Weight: 290g Colour: Black ESD: Human Body - +/-8kV, (air gap discharge) & +/-4kV (contact discharge) Safety and Emissions: CE, FCC, RoHS Page 7 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 8: Matrix Front Panel Description
4 x Optical audio sockets for Toslink connection (output is software selectable) Control RJ45 for TCP/IP, 3-Pin Phoenix for RS232, 3.5mm Jack for IR, Mini-USB Power 1 x 4-Pin DC socket for power adaptor Page 8 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 9: Receiver Front And Rear Panel Description
RJ45 Data socket. The Link LED illuminates Orange to confirm connection HDBaseT In with the Matrix. The HDCP LED illuminates Green when the signal contains HDCP content. DC 24V Power input (not required when used with Scion SC36.MX44 matrix) Page 9 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 10: Application Drawing
IR EYE Toslink Outputs / ARC IR OUT IR IN 12V DC OUTPUTS INPUTS CAT5e/6 Local Display 8 x HDMI Signal Inputs Receiver IR Out Local Display RS232 IR Source Control Display Page 10 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 11: Matrix Front Panel Button Control
Press and hold preset 1~4 for three seconds to save the current switching status to the chosen preset button. Press preset 1~4 to recall the saved preset. Press CLEAR to cancel an operation before pressing ENTER. Page 11 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 12: Web Browser Interface
● To save a layout, first click on of the numbered buttons, then click “Save”. ● To load a previously saved layout, first click one of the numbered buttons, then click the “Recall” button. Page 12 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 13: Audio Settings
Audio on Output 6 ARC on Output 5 SPDIF 7 Audio on Input 7 Audio on Output 7 ARC on Output 6 SPDIF 8 Audio on Input 8 Audio on Output 8 Page 13 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 14: Poc Settings (Power Over Cable)
HDBT Out 3 HDMI Out 7 HDBT Out 4 HDMI Out 8 Confirm Cancel Copy the EDID of the selected output device to one or more of the input source devices. Page 14 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 15: Edid Settings
1. Prepare your EDID file (.bin) on the control PC 2. Select “User Defined” 3. Choose the prepared .bin file. 4. Click “Apply” to upload the file then click “Confirm” to save the setting Page 15 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 16: Cec (Consumer Electronic Control)
2. Output Device Control NOTE: Only one device can be controlled at any time. Switching Audio Config RS232 Interface Network Access Input Output Function Input Input Source Vol - Mute Vol + Page 16 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 17: Rs232
HDBT: RS232 port of the far-end receiver b. Select a port and the characteristics of the device attached to the receiver. c. Type and send your command to the far-end device. Page 17 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 18: Interface Settings
Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 Version GUI : V1.0.0 Firmware : V1.0.0 Confirm ● Static IP or Dynamic Host Configuration Protocol (DHCP). ● Modify the static IP Address, Subnet Mask and Gateway. Page 18 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 19: Access Control
ALL button, then press the OUTPUT button associated with the display you want to read EDID from, finally press the ENTER button to confirm. ● CLEAR:- Press the CLEAR button to clear incorrect entries. Page 19 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 20: Ir Pass-Through Control
RS232 IR EYE Toslink Outputs / ARC IR OUT IR IN 12V DC OUTPUTS INPUTS CAT5e/6 IR Emitter Satellite Receiver Connected to HDMI Input 3 Receiver Satellite Receiver Remote Control Display Page 20 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 21: Control A Local Device Using The Ir All Out Port
IR EYE Toslink Outputs / ARC IR OUT IR IN 12V DC OUTPUTS INPUTS CAT5e/6 TV on HDBT 2 Receiver Remote Control IR Emitter Satellite Receiver Connected to HDMI Input 1 Display Page 21 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 22: Control A Remote Device Using The Ir All In Port
Toslink Outputs / ARC IR OUT IR IN 12V DC OUTPUTS INPUTS ALL HDBT Outputs CAT5e/6 Remote Control CAT5e/6 CAT5e/6 Satellite Receiver Receiver Receiver Receiver IR Emitter IR Emitter IR Emitter Display Display Display Page 22 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... -
Page 23: Maintenance And Warranty
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number and/or email address where you can be reached. Page 23 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... - Page 24 RESPONSIBILITY. This returns policy does not affect your legal rights. Details of your legal rights are available from Trading Standards or Citizens Advice Consumer Service. Scion Tech Limited Thatcham, Berkshire, United Kingdom Page 24 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
