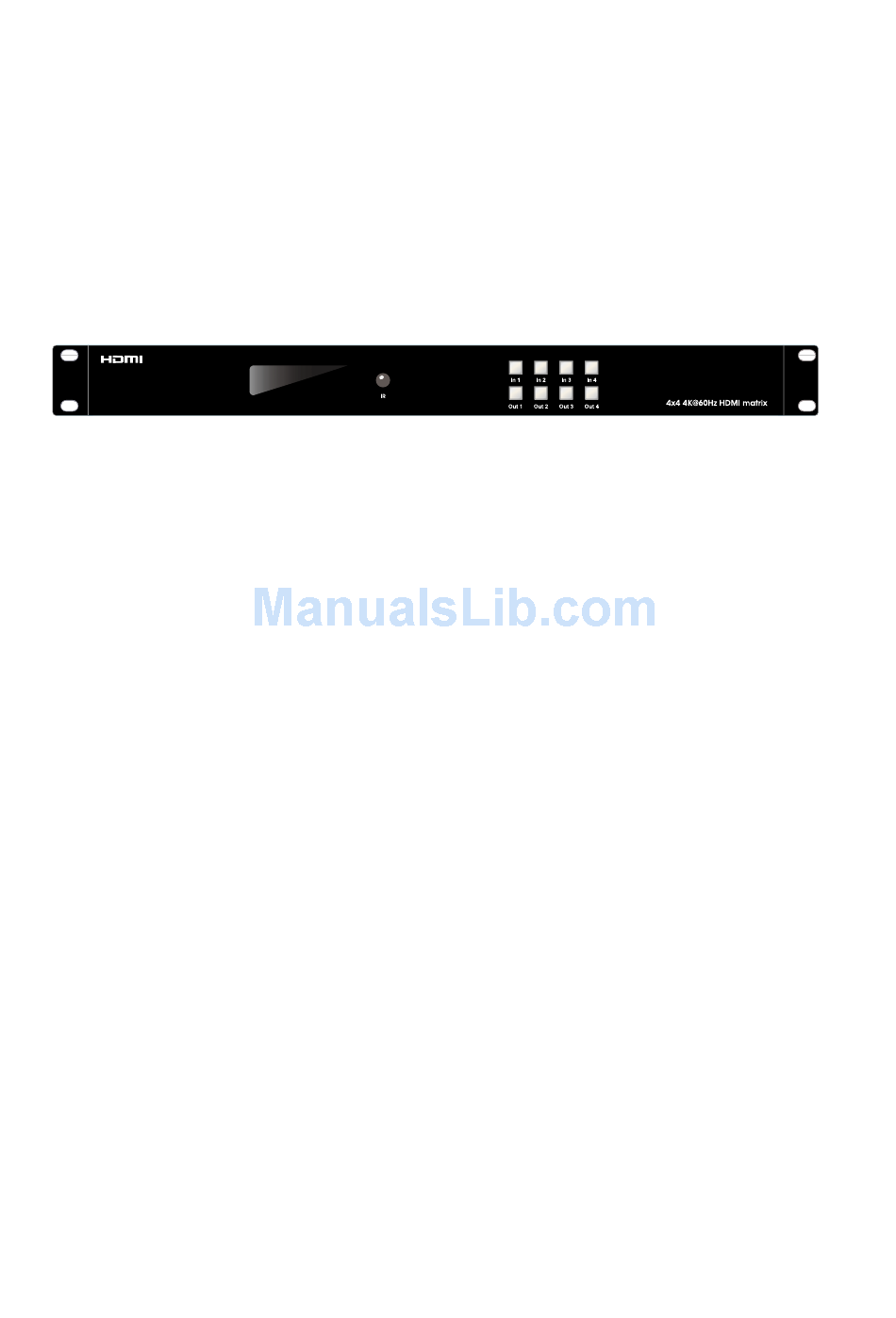

4K HDMI Matrix 4x4, HDCP 2.2
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
Features
HDMI 2.0 version (Support HDMI2.0 4K50/60Hz YUV420).
·
Resolutions 4K@60Hz, 4K@30Hz, 1080P, 1080i, 720P.
·
Supports 3D.
·
HDCP 2.2/1.4 compliant.
·
4xHDMI Input, 4xHDMI output with SPDIF Audio.
·
Allows up to four 4 source devices to be independently switched to 4
·
HDMI monitors, HDTVs, or projectors.
Support Panel Button, Local IR, RS232 Control, IP Control Via Telnet.
·
1U rack design, easy installment.
·
Notice
Our company reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
Scion Tech Ltd
1
SC04.1404
Advertisement
Related Manuals for Scion-Tech SC04.1404
Summary of Contents for Scion-Tech SC04.1404
- Page 1 Scion Tech Ltd SC04.1404 4K HDMI Matrix 4x4, HDCP 2.2 Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
- Page 2 Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 3: Package Contents
TABLE OF CONTENTS Package Contents Panel Descriptions Connecting and Operating Maintenance Product service Warranty Package Contents ① Main unit. (HDMI Matrix) ② 12V3A DC Power Supply. ③ 1x Remote controller. ④ 1x IR_RX (IR receiver) extension cable. ⑤ Operating Instructions. ⑥... - Page 4 Panel Descriptions Front Panel Rear Panel ① HDMI input port. ② HDMI output port. ③ SPDIF Audio output. ④ IP control. ⑤ RS232 for control. ⑥ For IR external receiver cable. ⑦ DC power input. Connecting Connect the HDMI input sources (such as HD-DVD, PS3, STB etc) into HDMI Matrix.
-
Page 5: Typical Application
Typical Application Operation: 1. Front panel control. In 1 In 2 In 3 In 4 Out 1 Out 2 Out 3 Out 4 Change source to output port: First, press an output number button to choose which output port to change the source (the input digit above the output port number on LCD starts to be flash). - Page 6 2. Local IR remote control. You can control the HDMI route of the matrix by using the IR remote. There are four group key pads for two output ports. For each output port source selection, there are 4 number keys and two arrow keys. Press number keys to select specific input port.
- Page 7 4. EDID setting. Pressing and holding input number button for 3 seconds to recall the display on front LCD panel for EDID setting of this input port. For example, pressing and holding input number button 3 for 3 seconds will recall the LCD to display the current EDID setting on input port 3: Clicking the button In3 will display the next EDID: When pressing and holding button In3 for 3 seconds will select the EDID...
- Page 8 11：4K60Hz(Y420)_3D_ audio5.1 12：4K60Hz(Y420)_3D_ audio71 USER EDID 1 USER EDID 2 USER EDID 3 EDID from output1 EDID from output2 EDID from output3 EDID from output4 5. IP control module information shown on LCD panel. Pressing In3 and In4 simultaneously for 3 seconds, IP setting information will be shown on front LCD panel.
- Page 9 8. Software Control 1). Connecting a computer to the Matrix using a USB to RS232 cable, open the software and click Search Machine. 2). You can control HDMI Matrix as shown beow. 3). Set the EDID of 4 HDMI inputs:...
- Page 10 9. IP Control 1). Click “DHCP”, then the switch will assign IP address automatically. You can also set the IP address manually. 2). If you set a static IP, you need set the IP of the computer to:-...
- Page 11 3). Open web browser, and enter the IP address you set. 4). Turn on/off the audio:...
- Page 12 5). Set the EDID of 4 HDMI inputs: 6). Network config:...
- Page 13 10. Telnet/RS232 Command Control 1). Open CommUart Assistant. 2). Comport setting: Baud Rate: 57600 bps Parity: None Data Bits: 8 bit Stop Bits: 1 bit 3). Enter Port Command in Send options. 4). If you need to check the command, enter “>@ RH” and “enter” key, then click “Send”.
-
Page 14: Product Service
MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 15 mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service. MAIL-IN SERVICE When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton.
- Page 16 Scion Tech Ltd Thatcham, Berkshire, RG18 3DL, United Kingdom support@scion-tech.co.uk Tel: +44 (0) 1635 862484...
