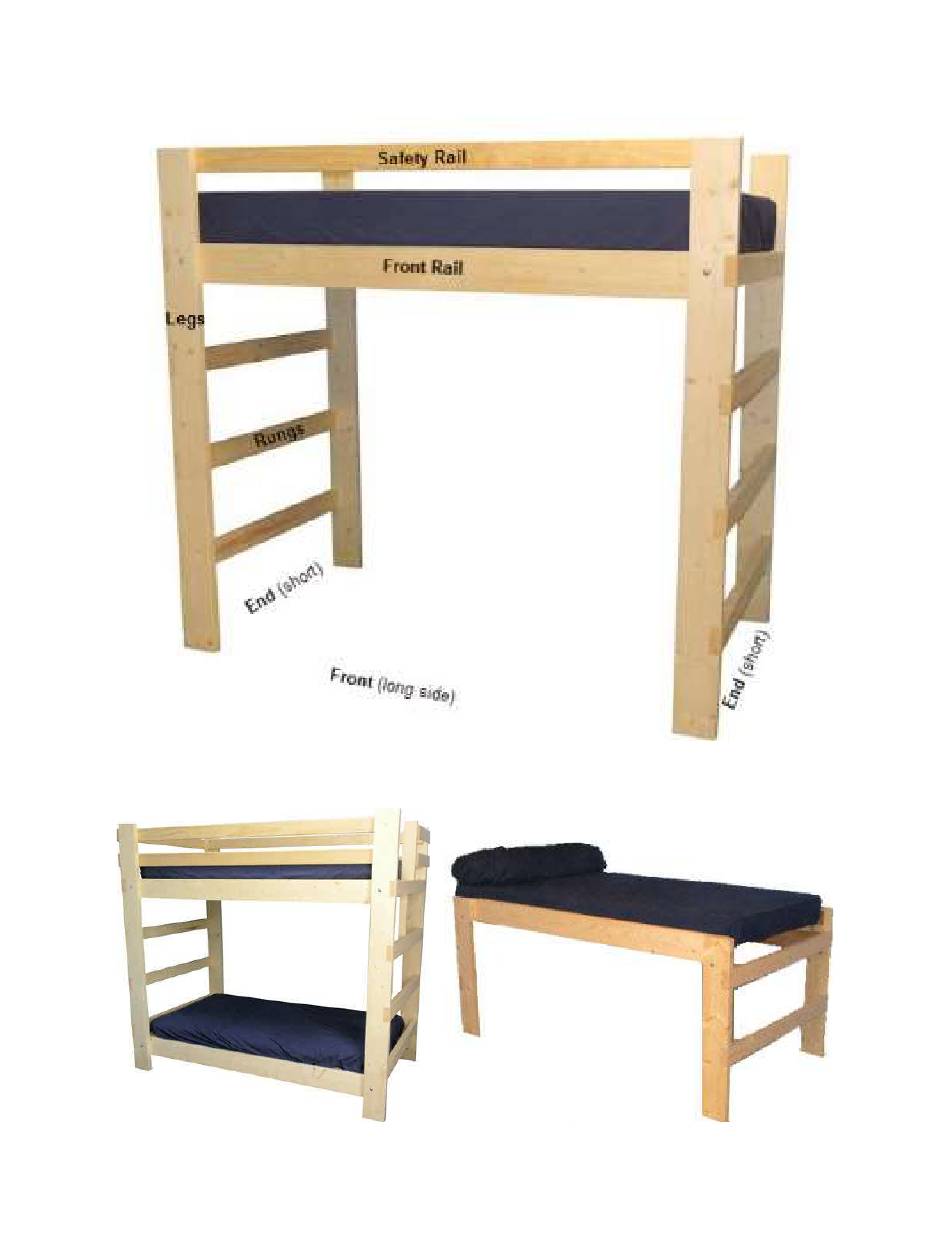

- Page 1 Basic Loft - Bunk - High-Rise Bed Assembly Instructions This set of instructions are for the basic beds with no accessories or customizations. Bunk Bed High Rise Platform Bed Page 1 of 8...
- Page 2 Set up takes roughly 2 hours for the basic loft bed, and 15 - 30 minutes for each optional accessory and about 1 hour for the long or L-Shaped or U-Shaped desks. It is easiest if you have two people doing it. If you are not sure how to install a piece always refer back to the diagram on page 1 to see how everything fits together.
- Page 3 Step 1 - Building the Ladder Ends Note: The bottom of each leg will have a Red Mark, make sure you place all the legs facing the same direction. If you ordered the Double Bookshelf Headboard, (2) legs will be taller to hold the shelves. Make sure you assemble the same height legs at each end.
- Page 4 Step 3 - Attach Bed Slats Bed Slats: Twin 38”, Full 53”, Queen 59”. Bed slats have 1 pilot hole at each end. Please Note: If you also ordered the Solid Platform Mattress Foundation (1/8” MDF sheets) you need to first space the sheets out on the top of the bed slats to make sure a bed slat underneath is in-between where two sheets are joined together.
- Page 5 Step 4 - Complete Rail Installation Please Note the (4) 2-1/2” Screws surrounding the carriage bolt are very important. The carriage bolts provides the weight capacity and the (4) 2-1/2” screws surrounding the carriage bolt provides the sturdiness and corner stability. Make sure the screws are installed at each end of all rails.
- Page 6 After completing installation, let the bed sit as the wood glue will take about 2 hours to dry. Do not use or put any pressure on the ladder rungs or bed while the glue is drying. After the wood glue has dried, the bed should be tight and not rock in any direction more than ½”. If it does rock, try the following.
- Page 7 Warranty: College Bed Lofts warrantees its beds for as long as the original purchaser owns it. We will repair or replace individual components that we consider defective due to materials or workmanship. This warranty does not cover damage of components due to user misuse, abuse, accident, modification, improper installation or normal wear and tear.
- Page 8 Safety Rail Sets (Optional) If you ordered the Adult Use Bed you will receive (1) safety rail for the front (long) side. Optionally you may add a safety rail on the back (long) side also. Fasten the safety rail to the inside of the legs at the top of the legs with (4) 1-5/8”...
