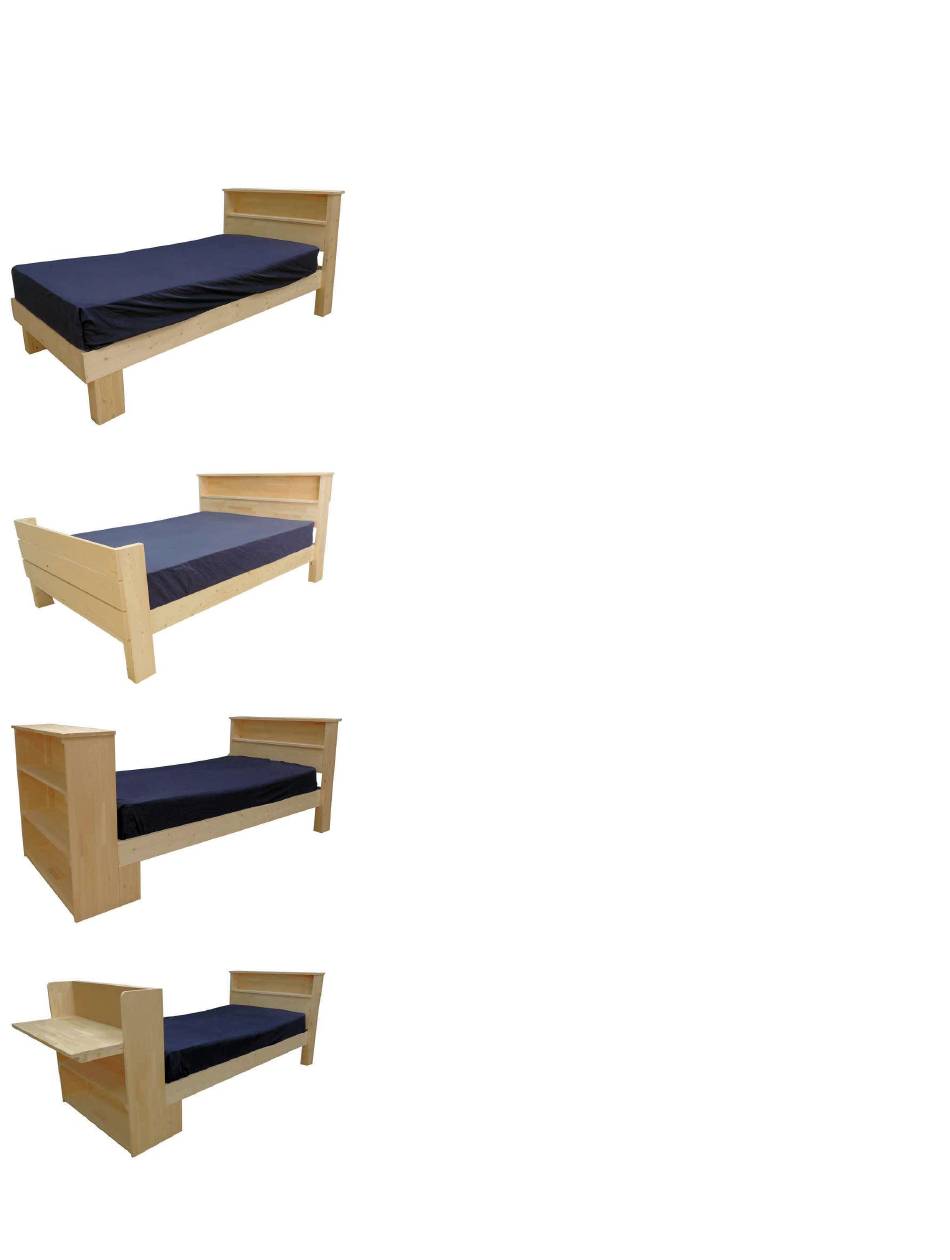

This set of instructions includes the assembly for the Classic Bookshelf Headboard Bed and also includes the optional
Slatted Footboard, Bookcase Footboard and Desk Footboard accessories. Mattress is not included.
Page 1

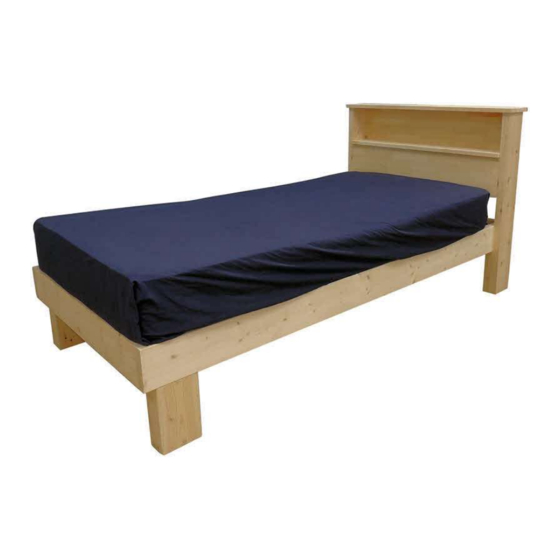

Classic Bookshelf Headboard Bed
Assembly Instructions
Basic Bedframe Parts List:
(2) Rails
(12) 2x3 Bed Slats
Please note if you ordered the optional Slatted Footboard you will not get
the (2) Short Footboard Legs.
Bookshelf Headboard Parts List:
(2) Headboard Legs
(1) Front Panel
Please note that any piece labeled Left or Right is based on looking at the
footboard end toward the headboard.
Optional Slatted Footboard Parts List:
(2) Footboard Legs
Please note that if you have a mattress thicker than 12" then you will get
(4) Footboard Slats.
Optional Bookshelf Footboard Parts List:
(2) Bookshelf Sides
(2) Bookshelf Footboard Back Panels (upper and lower)
(2) Notched Short Footboard Legs (installed at the end of the bed frame)
Desk Footboard Parts List:
(2) Bookshelf Sides
(2) Bookshelf Footboard Back Panels (upper and lower)
(2) Notched Short Footboard Legs (installed at the end of the bed frame)
(2) Headers
(2) Short Footboard Legs
(2) 2x6 Bed Slats
(1) Top Shelf
(1) Back Panel
(3) 1x6 Footboard Slats
(1) Top Shelf
(1) Desk
(2) Interior shelves
(1) Parts Bag
(1) Middle Shelf
(1) ½" Spacer
(3) Interior shelves
2/2/20
Advertisement
Table of Contents
Related Manuals for College Bed Lofts Classic Bookshelf Headboard Bed
Summary of Contents for College Bed Lofts Classic Bookshelf Headboard Bed
- Page 1 Classic Bookshelf Headboard Bed Assembly Instructions 2/2/20 This set of instructions includes the assembly for the Classic Bookshelf Headboard Bed and also includes the optional Slatted Footboard, Bookcase Footboard and Desk Footboard accessories. Mattress is not included. Basic Bedframe Parts List:...
- Page 2 General Notes & Tips We customize each bed to your exact specifications, the Assembly Instructions pictures may not show your exact bed. Please Read through the entire set of instructions first to familiarize yourself with the entire process before beginning assembly.
- Page 3 Attach the Short Footboard Legs If you ordered the standard bed without the Storage Drawers then the Short Footboard Legs are pre-attached to the Rails. If you ordered the Storage Drawers without the Slatted Footboard, then the Short Footboard Legs need to be attached to the rails.
- Page 4 Assemble the Frame Attach the Headers to the Rails with 2-1/2" screws into the pilot holes through the Rails into the Headers. The Headers fit inside the Rails. Make sure the bed is square. The easiest way to do this is to measure the diagonal from the top of one end to the bottom of the other end.
- Page 5 Attach the Headboard Shelves - Attach the Headboard Middle Shelf to the Pre-attached Supports attached to the legs with 1-5/8” screws. - Attach the Headboard Front Panel to the Pre-attached Supports with 1-5/8” screws. - Attach the Headboard Back Panel to the legs with 1-5/8” screws. - Attach the Headboard Top Shelf to the top of the legs with 1-5/8”...
- Page 6 Attach the Optional Bookshelf Footboard - Attach the Shelves to the Sides with 1-5/8” screws starting from the bottom going up to the Top Shelf. - Attach the Upper & Lower Back Panel with 1-5/8” screws to the back of the Bookshelf. - Attach the Bookshelf to the bed with 1-5/8”...
- Page 7 Attach the Optional Slatted Footboard Place the Footboard Leg on the outside of the Rail resting the Rail on the ledge. Attach the Rail to the Footboard Leg with 2-1/2" screws through the rail into the Footboard Leg. In the parts bag you will have a ½” spacer. Use this as a guide for the spacing between the slats. Attach the Footboard Slat to the end of the Footboard Legs with 1-5/8”...
- Page 8 Attach the Bed Slats Attach the (2) 2x6 bed slats at each end to the header and front and back rail with 2-1/2” screws into the pilot holes. Attach all the bed slats to the front and back rails using 2½” screws (at a slight angle towards the rail) spacing the slats 3” apart.
