College Bed Lofts Bench Loft Bed Assembly Manual

Bench Loft Bed Assembly Instructions

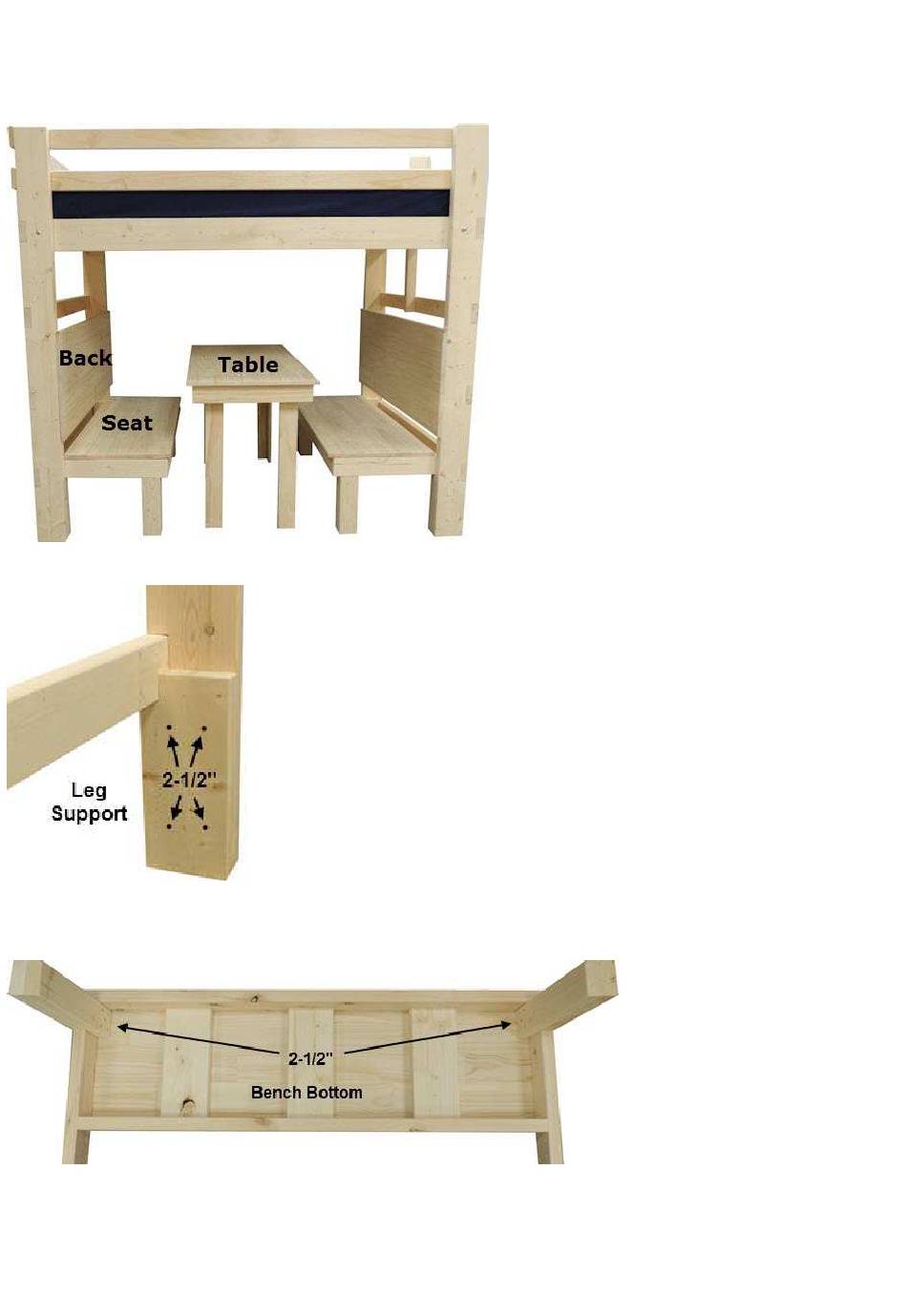

Attach the Leg Supports to the inside bottom of the legs with 2-1/2" screws into the

pilot holes. The bench will rest on top of these supports.

The Bench Loft Bed options include (1) or (2) Benches

and a Table. The photo (left) shows the completed bed

with (2) Benches and the Table.

(40) 1-1/4" Screws

(50) 2-1/2" Screws

(10) 1-5/8" Screws

The Bench Seat comes with the

frame and top attached. Place the

bench face down on the floor and

attach the legs to the frame with 2-

1/2" screws into the pilot holes.

Table of Contents

Do you have a question about the Bench Loft Bed and is the answer not in the manual?

Page 1 Bench Loft Bed Assembly Instructions The Bench Loft Bed options include (1) or (2) Benches and a Table. The photo (left) shows the completed bed with (2) Benches and the Table. Parts Bag: (40) 1-1/4” Screws (50) 2-1/2” Screws (10) 1-5/8” Screws Attach the Leg Supports to the inside bottom of the legs with 2-1/2”...
Page 2 The Bench Seat rests on the leg supports. Attach the bench to the legs wit 2-1/2” screws into the pilot holes. Attach the Seat Back to the legs from behind into the legs with 1-5/8” screws. You can place it 2” - 3” above the bench.
