Wall-Of-Shelves Loft Bed Assembly Instructions

The Wall-Of-Shelves Loft Bed comes with the Bookcase End and the opposite end pre-assembled. This set of
instructions describes the unique installation steps for the pre-assembled components only. Use the standard instructions
for all other items such as the mattress foundation, U-Shaped Desk, Angled Ladder, safety rails and any accessories you
purchased. All pieces that have specific positions on the bed will be marked with left, right, front, back and so on.

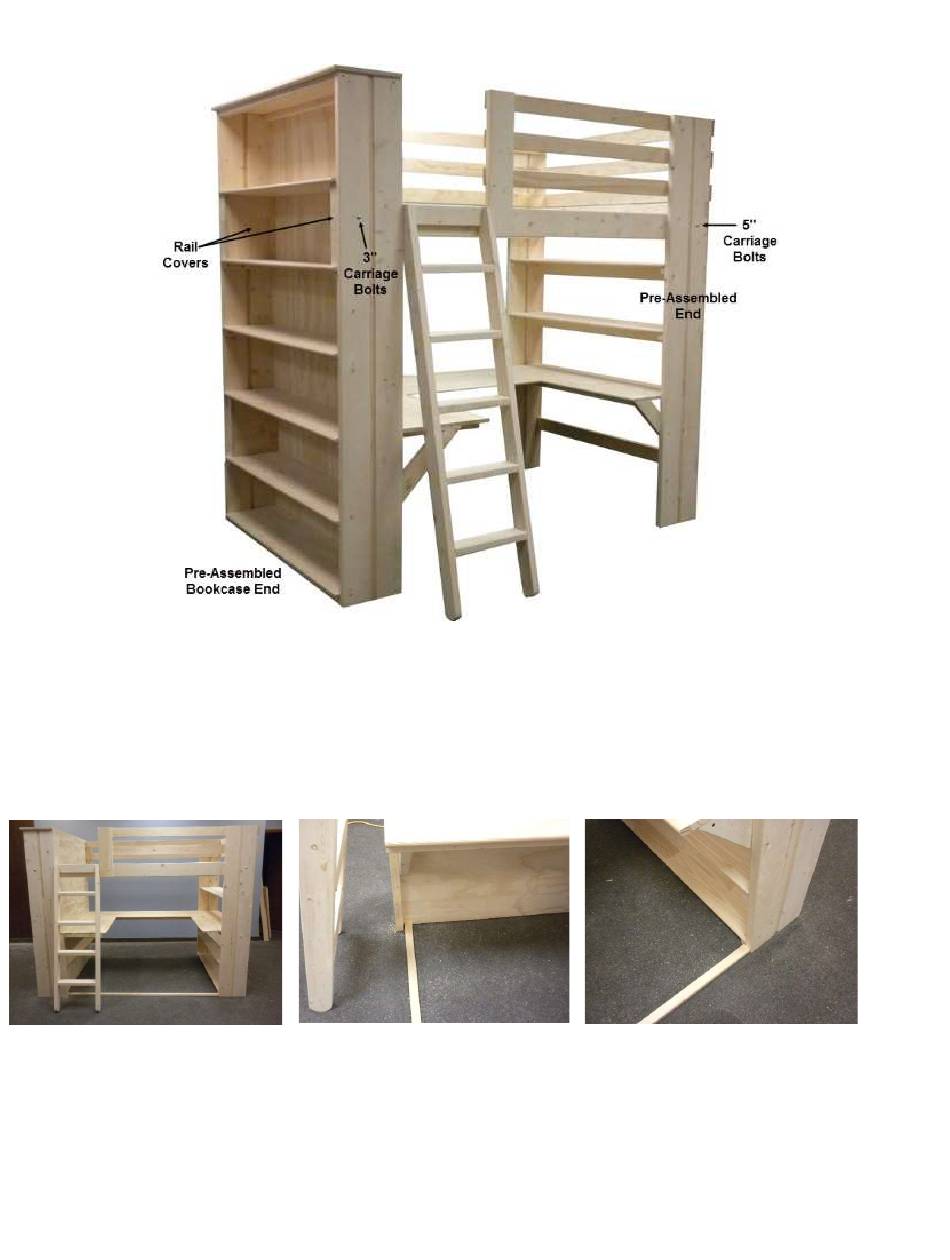

The top photo shows the Bookcase end on the left and the Angled Front Ladder on the left also. We customized your bed
to your specifications so it may be slightly different but the assembly is basically the same. The components are large
and heavy and at least two or three people are required for assembly.
Position the two ends on the floor. We have provided a scrap piece of wood to serve as a Length Guide for laying out
the bottom length of the bed. On the left side push it up against the plywood back (not on the 2x2 that extends out from it)
and on the right push it up against the leg. This will give you the proper distance between the ends. Make sure the
distance from the left to right for both the front and back of the bed are identical.
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wall-Of-Shelves Loft Bed and is the answer not in the manual?

Questions and answers

Related Manuals for College Bed Lofts Wall-Of-Shelves Loft Bed

Summary of Contents for College Bed Lofts Wall-Of-Shelves Loft Bed

  • Page 1 Wall-Of-Shelves Loft Bed Assembly Instructions The Wall-Of-Shelves Loft Bed comes with the Bookcase End and the opposite end pre-assembled. This set of instructions describes the unique installation steps for the pre-assembled components only. Use the standard instructions for all other items such as the mattress foundation, U-Shaped Desk, Angled Ladder, safety rails and any accessories you purchased.
  • Page 2 When inserting the carriage bolt, initially insert it part-way into the leg before lining up the hole in the rails. The Bookcase end has cut-outs where the rails will slide into the Bookcase. Insert (2) 3” carriage bolts into the Bookcase Holes and (2) 5” carriage bolts into the other end but don’t push them all the way through the legs yet.
  • Page 3 The back safety rail has an additional brace that attached to the outside of the back rail to support the safety rails at the Bookcase end. See above diagram. Install this and the front safety rail brace that goes next to the angled ladder. Now install the Bed Slats following the standard instructions page 5.
