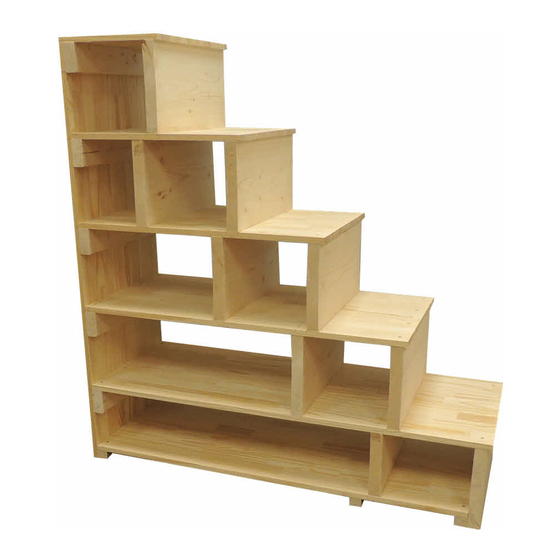

The Stairs have either 4 or 5 steps and are 12", 20" or 24" wide. The instructions and photo below
shows the 5-Step 53" long unit. Follow the parts list shown below for your specific unit. Before
assembly lay all pieces on the floor without screws to see how they all fit together. All Steps will have
pencil marks to indicate where to place the risers.
Please note that the some Risers due to being very wide boards may have a slight bow to them.
Place the bowed boards on the inside with the bow towards the front of the unit.
Parts included for each size
4-Step 43" Long Unit: 4-Step Back, Bottom-Riser, Short Riser, (5) Risers, Parts Bag,
40" Shelf, Steps: 12-3/4; 22"; 32"; 42".
4-Step 53" Long Unit: 4-Step Back, Bottom-Riser, Short Riser, (5) Risers, Parts Bag,
50" Shelf, Steps: 22-3/4; 32"; 42"; 52".
5-Step 53" Long Unit: 5-Step Back, Bottom-Riser, Short Riser, (7) Risers, Parts Bag,
50" Shelf, Steps: 12-3/4; 22"; 32"; 42"; 52".
5-Step 63" Long Unit: 5-Step Back, Bottom-Riser, Short Riser, (7) Risers, Parts Bag,
60" Shelf, Steps: 22-3/4; 32"; 42"; 52"; 62".
Page 1 of 5
Stairs with Open Shelves Assembly Instructions
5 Step 53" Long Unit Instructions

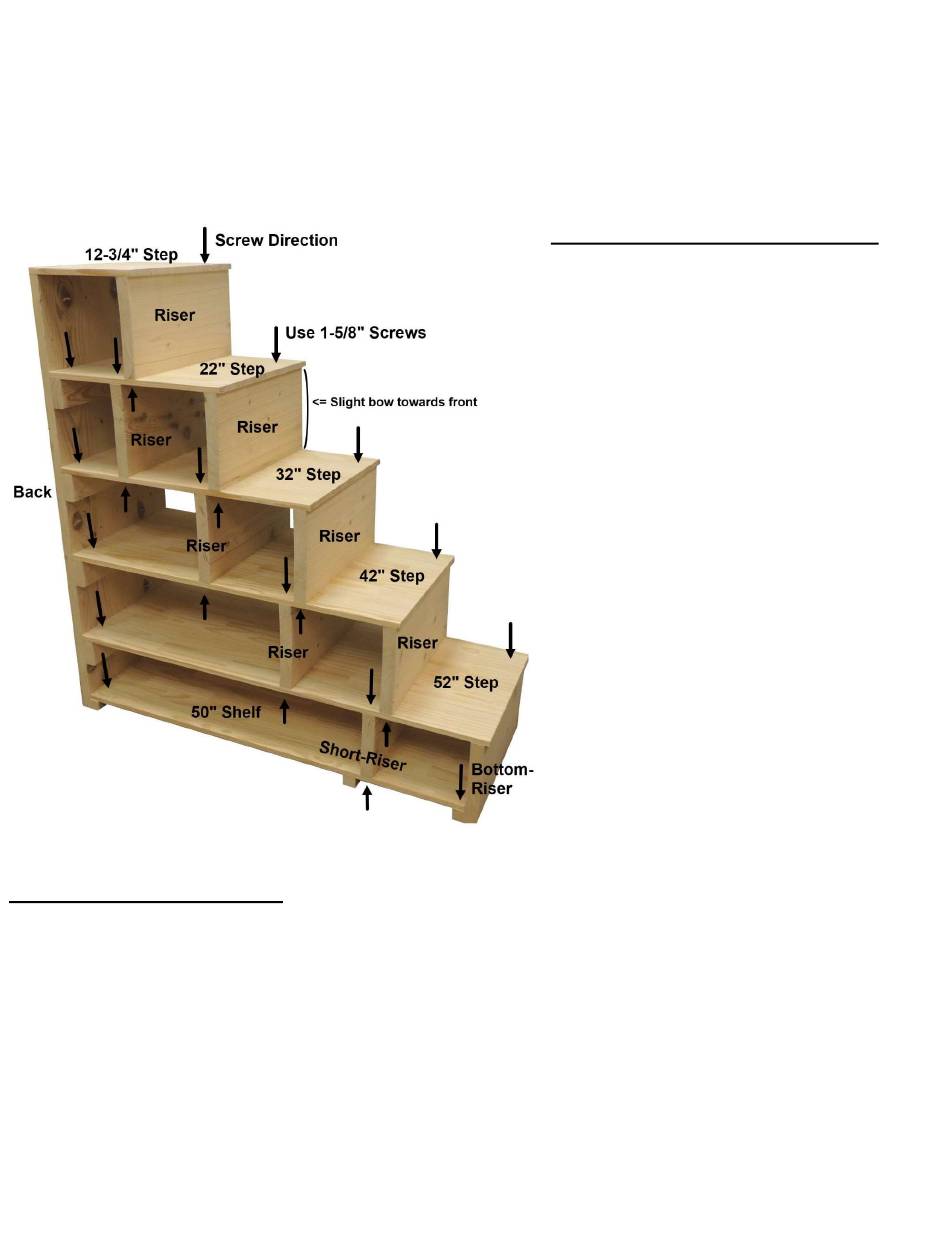

Attach with 1-5/8" Screws
Attach the Short-Riser to 50" Shelf from
below the shelf. Then attach the Shelf to
the Back & Bottom-Riser from above the
shelf.
Attach (2) Risers to the 52" Step from
below the step. Then attach the Step to
the Back & Bottom-Riser from above the
step.
Attach (2) Risers to the 42" Step from
below the step. Then attach the Step to
the Back & Riser from above the step.
Attach (2) Risers to the 32" Step from
below the step. Then attach the Step to
the Back & Riser from above the step.
Attach (1) Riser to the 22" Step from
below the step. Then attach the Step to
the Back & Riser from above the step.
Attach the 12-3/4" Step to the Back &
Riser from above the step.
