Summary of Contents for ParaZero SafeAir M-600 Pro

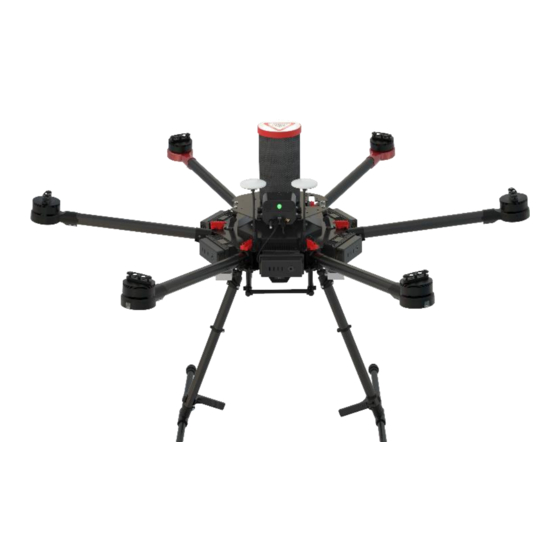

- Page 1 SafeAir M-600 Pro INSTALLATION GUIDE...
-
Page 2: Table Of Contents
OPERATING GUIDELINES ....................19 8.1 Preflight.............................. 19 8.2 Takeoff ............................... 19 8.3 Before Landing ..........................19 8.4 After Landing ............................ 19 DEPLOYMENT ........................20 9.1 General ............................. 20 9.2 Repacking the parachute ....................... 20 SafeAir™ M-600 Pro Installation Guide www.parazero.com... - Page 3 Important Notice ParaZero’s drone safety system is a risk-mitigation system that aims to lower the impact energy in proper use. ParaZero’s drone safety system is not intended to eliminate all damages to people or property and Parazero cannot guarantee this. ParaZero’s drone safety system is a ballistic system that uses a pyrotechnic component. Please note, you must read, comply with and apply all written information in this manual.
-
Page 4: General Information
Not to connect the TerminateAir to the SmartAir. The ParaZero SafeAir M-600 Pro is smart-parachute system that deploys autonomously after detecting a critical failure in your drone. The parachute slows the descent rate of your drone and reduces the kinetic energy upon impact. The system incorporates the following main... -
Page 5: Technical Specifications
Altitude loss until full deployment (hover) 7-10m Vertical speed of descent (hover):* maximum 3.6-4.8m/s takeoff weight between 10.5-15.5Kg Temperature Range -25°C to + 55°C Maximum Wind Speed/Flight Speed 55knots Humidity *ISA, at zero wind and stabilized vertical speed. SafeAir™ M-600 Pro Installation Guide www.parazero.com... -
Page 6: Safety Instructions
Congratulations on your purchase of the SafeAir Mavic Safety System! This manual explains how the SafeAir M-600 Pro works and how to properly operate the system on the ground and in the air. Be sure to take the time to read this manual carefully in order to increase your safety and the safety of those around you. -
Page 7: Package Contents
It is imperative to perform system updates on a regular basis through the desktop application. The current version number is found on the product webpage: www.parazero.com/m600 under the software tab. A new device must be updated before first flight. Package Contents The SafeAir M-600 Pro package includes the following parts: The main bracket, including the canister, the SmartAir Pro with a safety pin. -
Page 8: Smartair Connectors Overview
SmartAir Connectors Overview A – 2 Stage Safety pin Stage 1 – Power on/off Stage 2 – Pyro safety B – External damper holders A – Safety pin B – FTS/UART connector (+optional Vin & PWM) C – USB-C connector D –... -
Page 9: Installation
Installation 5.1 Connecting the TerminateAir to the Drone Caution During all installation stages, be sure – Not to connect the batteries to the drone. Not to connect the TerminateAir to the SmartAir. Gently turn over the drone Disconnect the landing gear power cable Remove the bottom plastic cover. - Page 10 Insert the 12 power cable terminals onto the 12 screws on the TerminateAir board. Do not open the screws. Each terminal has its own screw. Make sure you connect it to the right screw, as shown in the figure below. Pay special attention to the marking on the board, indicating the GND and VOUT and connect accordingly: Red wire to the VOUT (+), and black wire to the GND (-).
-
Page 11: Connecting The Parachute System To The Drone
5.2 Connecting the Parachute System to the Drone Caution During all installation stages, be sure – Not to connect the batteries to the drone. That the safety pin remains in its proper place. Important Notice: When connecting to a Matrice 600 (Not Pro), it is required to move the GPS antenna and reconfigure its position in the DJI assistant. -
Page 12: Inserting The Pyro Actuator
5.3 Inserting the Pyro actuator Caution During all installation stages, be sure – Not to connect the batteries to the drone. That the safety pin remains in its proper place. Not to connect the parachute cable to the SmartAir. Unscrew the safety transportation capsule and take out the pyro-actuator - when taking out the pyro-actuator from the transport capsule you are obliged to use protective glasses. -
Page 13: Inserting The Parachute
5.4 Inserting the parachute Caution During all installation stages, be sure – Not to connect the batteries to the drone. That the safety pin remains in its proper place. Not to connect the parachute cable to the SmartAir. Hold the folded parachute, remove the rubber bands while applying pressure to the upper yellow cap and the bottom red base. -
Page 14: Connecting The Parachute Cable And The Terminateair Cable To The Smartair
5.5 Connecting the parachute cable and the TerminateAir cable to the SmartAir Caution During all installation stages, be sure – Not to connect the batteries to the drone. That the safety pin remains in its proper place. Connect the parachute cable to the parachute port on the SmartAir. Connect the TerminateAir cable to the FTS port on the SmartAir. -
Page 15: Remote Controller (Optional)
Remote Controller (optional) 6.1 RC System Port & switches Lanyard hole Trigger switch Power switch Charging port Belt clip... -
Page 16: Rc System Status And Troubleshooting
6.2 RC System Status and Troubleshooting LED & buzzer System status Corrective action/ explanation Green System ready Blue System charges Sequence of solid blue accompanied Charge complete by flashing blue 3x Red flashes + SafeAir might be turned off, or the No link beeps RC is too far from the receiver... -
Page 17: System Led Indications
System LED indications Stage Buzzer Indication Required action Init Alternating System didn’t sync Connect system to Parazero Purple/Teal with app for a long Desktop App to sync logs and time check for updates Solid Orange System battery is not Charging the system is... - Page 18 If system is armed it will continue pattern to operate but if power will drop it will stop to function (*) ParaZero Remote Controller (RC) is an optional add-on and provides manual triggering ability. The LED indication is applicable for RC equipped systems.
-
Page 19: Operating Guidelines
Operating Guidelines 8.1 Preflight Initial Conditions: The safety pin is in. Finalize all the preflight procedures to your drone and payload. The following tasks are in addition to the regular preflight tasks – Turn off the power to the drone ... -
Page 20: Deployment
Deployment 9.1 General The SafeAir M-600 Pro includes an Autonomous Triggering System (ATS) that identifies most of the known critical failures and triggers the system autonomously. Should an emergency situation occur, the system deploys the parachute, stops the rotors and reduces impact energy upon landing. - Page 21 Fold 2/3 of the left cells towards the center of the parachute (so that the cells reach to the middle of the right folds). Fold the 2/3 of the right cells under the folded parachute. Fold the left and right part of the folded parachute over each other. Fold one side to the middle and then fold the other side on top of it.
- Page 22 Make sure the cap is secured and that the parachute is not sticking out of the cap. Fly Safely! Should you have questions, contact our support team at – support@parazero.com Phone – +972-36885252...
- Page 23 Operate Drones Everywhere, Safely Tel – +972-36885252 30 Dov Hoz Kiryat Ono, Israel 5555626 www.parazero.com...
