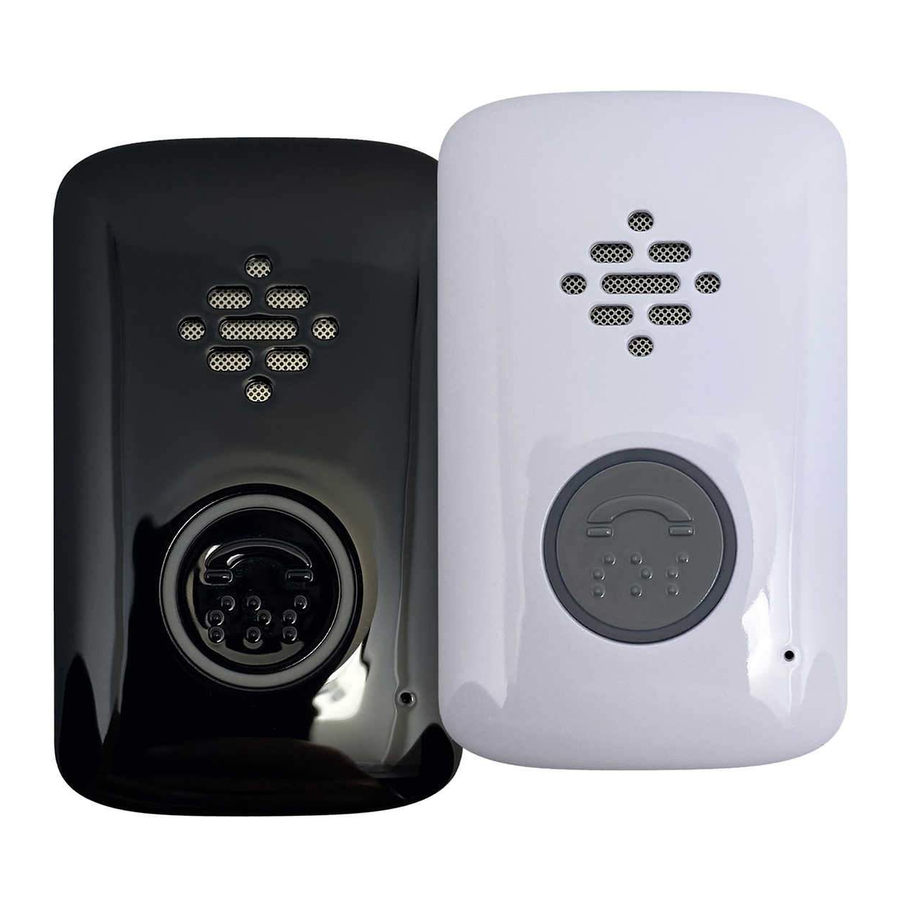

Active Guardian - 4G
Product Specifications:
Feature
Size/Dimensions
Weight
Connectivity
Certifications
GPS
WiFi Support
Fall Detection
Keyboard/Buttons
Display
Voice
Battery
Certifications
Charging Unit
Water Rating
Environmental
Specification
1.71 x 2.80 x 0.83" (43.5 x 71 x 21 mm)
2.6 oz (74 g)
LTE CAT1 FDD B4, B13 (4G LTE provided by Verizon)
Transmitter Power Class3 (0.2 W, 23 dBm)
LTE CAT 1 Data (Uplink up to 5 Mbps/Downlink up to 10 Mbps)
FCC: 2AP4W-4GPLS, Verizon, IC
A-GPS Acquisition Sensitivity
-150dB
Location Accuracy: 9m
Wifi Support for location accuracy
Yes
Yes with Cancel feature
One button front - SOS
One button side for power ON/OF and battery status(voice)
LED RING around main button
Prompts for Battery level
1000 mAh
Operating Voltage: 3.7V internal battery pack
Power Consumption: Typical 8mA@3.7V (Open TCP/IP connection)
Single charge 5+ days
Charging time: 2-3 hours
UL
UL Listed/
Rated IPX7 (enclosure)
Temperature: -20° to +55° C (operating); -30° to +80° C (storage)
Humidity: 95%RH @ 40° C non-condensing
Durable: 1000 drops @ 1.5 meters
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Medical Guardian Active Guardian-4G
Summary of Contents for Medical Guardian Active Guardian-4G
- Page 1 Active Guardian - 4G Product Specifications: Feature Specification Size/Dimensions 1.71 x 2.80 x 0.83” (43.5 x 71 x 21 mm) Weight 2.6 oz (74 g) Connectivity LTE CAT1 FDD B4, B13 (4G LTE provided by Verizon) Transmitter Power Class3 (0.2 W, 23 dBm) LTE CAT 1 Data (Uplink up to 5 Mbps/Downlink up to 10 Mbps) Certifications FCC: 2AP4W-4GPLS, Verizon, IC...
- Page 2 ESD +/-5kV Contact +/-10kV Air Tethering - Lanyard Tethering - Belt Clip Sell Points for sleeve: ● 4G LTE over Verizon network ● Fall detection with Cancel ● GPS with Wifi Support ● IPX7 ● Battery lasts more than 5 days ●...
- Page 3 *If your unit does not test properly, please contact Customer Care . To Call for Help: 1.Press and hold the call button until the light around the call button on the unit turns blue and the device vibrates. 2.After a short delay, you will hear a voice message and then tones or ringing. 3.The operator will answer the call.
- Page 4 Water-Resistant:Active 4G is IPX7 water-resistant.Active 4G should not be submerged.Active 4G+should be towel-dried after exposure to water. Device Placement:If you are subscribed to theActive 4G fall detection feature,Active 4G must be worn high on the chest with the included lanyard to accurately detect a fall. Pacemakers:Individuals with pacemakers should consult their physician and review their pacemaker materials regarding interaction with cell phones, and take the same precautions the materials recommended for this device...
