Place a Fan Blade onto the Fan Housing Assembly
aligning the Three Screw Holes of the Blade with the
Three Screw Holes of the Fan Housing Assembly
(Figure 1) .
Position a Fan Blade Support Plate Flush on the
Fan Blade . The Two Raised Dimples should face up,
as shown in Figure 1 .
NOTE: If the Fan Blade Support Plate is NOT flush
on the Fan Blade, the Fan Blade Support Plate is
positioned incorrectly.
Secure the Fan Blade Support Plate and Fan Blade
onto the Fan Housing Assembly using Three 1/4-20 x
17 mm Pan Head Screws with Lockwashers (supplied)
(Figure 1) .
Repeat for remaining Fan Blade Support Plates and
Fan Blades . Tighten all Screws Securely .
NOTE: Take care not to scratch the Fan Housing
Assembly when installing the Fan Blades.
WARNING
!
To reduce the risk of personal injury, do not bend the
blade when installing, balancing or cleaning the fan.
Do not insert foreign objects in between rotating fan
blades.
3.2
Remove One of the Three #6-32 x 3/8" Pan Head
Screws with Lockwasher from the Motor Assembly Hub
(Figure 2) .
Retain the #6-32 x 3/8" Pan Head Screw with
Lockwasher for future use .
Loosen the remaining Two #6-32 x 3/8" Pan Head
Screws with Lockwashers (Figure 2) .

3. Ceiling Fan Assembly

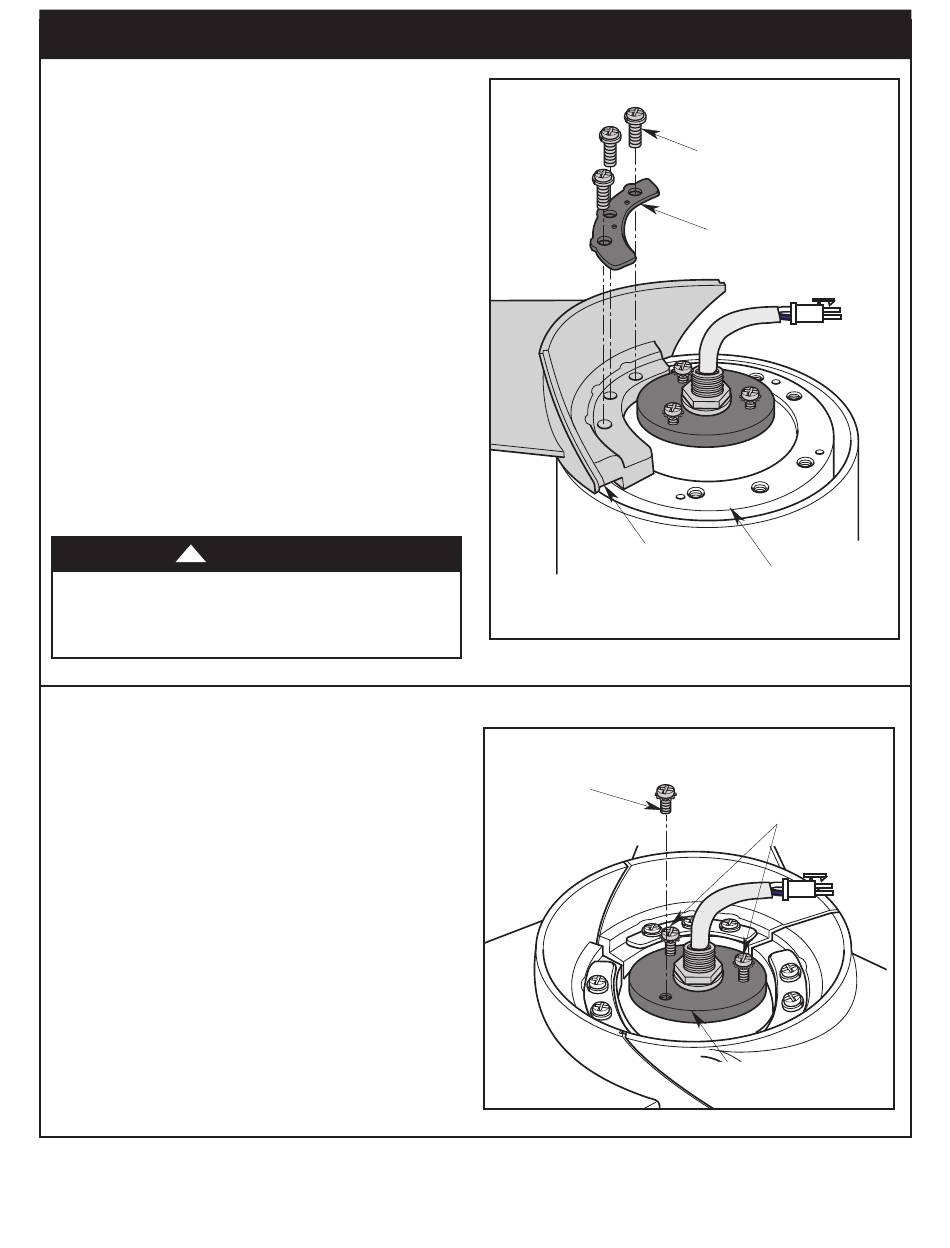

Figure 1
REMOVE ONE #6-32 x 3/8"
PAN HEAD SCREW WITH
LOCKWASHER
Figure 2
5
1/4-20 x 17 mm PAN HEAD
SCREWS WITH LOCKWASHERS
(3 per blade)
FAN BLADE
SUPPORT PLATE
FAN BLADE
MOTOR HOUSING
ASSEMBLY
LOOSEN TWO #6-32 x 3/8"
PAN HEAD SCREWS WITH
LOCKWASHERS
MOTOR HOUSING
ASSEMBLY HUB
