READ AND SAVE THESE INSTRUCTIONS

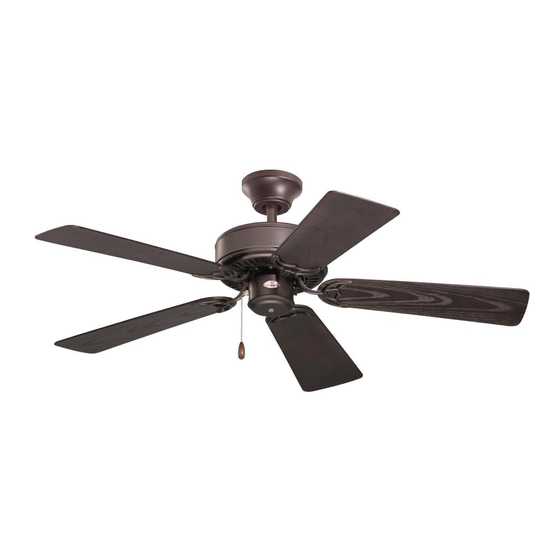

SUMMER NIGHT
Ceiling Fan Owner's Manual
CF742PFORB01
CF742PFWW01
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Part No. F40BP73130001
Revision: 051072021
42" Damp Location
Model Numbers
Net Weight:
1-800-777-4440
- Oil Rubbed Bronze
- Appliance White
11.7
Lbs.
R
Form No. BP7313-1
U.L. Model No.: CF742PF
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Luminance Brands Kathy Ireland Home Summer Night CF742PFORB01
Summary of Contents for Luminance Brands Kathy Ireland Home Summer Night CF742PFORB01
- Page 1 READ AND SAVE THESE INSTRUCTIONS SUMMER NIGHT 42” Damp Location Ceiling Fan Owner’s Manual Model Numbers CF742PFORB01 - Oil Rubbed Bronze CF742PFWW01 - Appliance White 11.7 Net Weight: Lbs. Questions, problems, missing parts: Before returning to the store, Call Customer Service 1-800-777-4440 Part No.
-
Page 2: Table Of Contents
Luminance Brands Substitution of parts or approved by a licensed electrician. accessories not designated for use with this product by Luminance Brands could result in personal injury or property damage. To reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges, balancing the blades or cleaning the fan. -
Page 3: Unpacking Instructions
Luminance Brands. Substitution of parts or Blade Sets accessories not designated for use with this product by Luminance Brands could result in personal injury or property damage. Check to see that you have received the following parts: NOTE: If you are uncertain of part description, refer to exploded view illustration below. -
Page 4: Electrical Requirements
1. Unpacking Instructions (Continued) THESE FAN MODELS ARE SUITABLE FOR DAMP LOCATIONS SUCH AS COVERED PORCHES, COVERED PATIOS, AND COVERED DECKS... ANYWHERE THERE IS A ROOF OVERHEAD. This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly WARNING... -
Page 5: Ceiling Fan Assembly
3. Ceiling Fan Assembly WARNING Disconnect Electrical Power to the Branch Circuit at the Circuit Turning off wall switch is not sufficient. To avoid Breaker Panel or Main Fuse Box before attempting to install the possible electrical shock, be sure electricity is turned Ceiling Fan to the Outlet Box. - Page 6 3. Ceiling Fan Assembly (Continued) Loosen the Two Set Screws in the Motor Coupler. DOWNROD HAIRPIN CLIP Place the Hanger Ball/3.5” Downrod Assembly into the Motor CLEVIS Coupler, aligning the Clevis Pin Holes in the Downrod with the Holes in the Motor Coupler (Figure 3). CLEVIS HAIRPIN The Clevis Pin MUST go through the Holes in the Motor...
- Page 7 3. Ceiling Fan Assembly (Continued) BLACK WIRE The Fan comes with Blue, Black and White Wires that are 80” long. BLUE WIRE Measure up approximately 6 to 9-inches above top of Hanger Ball/3.5” Downrod Assembly (Figure 5). 6 TO 9 WHITE WIRE INCHES Cut off excess Wires and strip back insulation 1/2-inch from...
- Page 8 3. Ceiling Fan Assembly (Continued) M5 x 10mm WASHER HEAD IMPORTANT: THE SIDE OF THE FAN BLADE BLADE SCREW (3) HAVING THE RIB LINE MUST BE FACING UPWARDS AS SHOWN IN FIGURE 8. Mount the Blade Flange to the Fan Blade using Three BLADE M5 x 10mm Washer Head Blade Screws (supplied) (Figure 8).
-
Page 9: How To Hang Your Ceiling Fan
4. How to Hang Your Ceiling Fan CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 10). WARNING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box or circuit breaker panel before AT LEAST... - Page 10 4. How to Hang Your Ceiling Fan (Continued) NOTE: SUPPLY WIRES AND FAN WIRES OMITTED FOR CLARITY. NOTE: CEILING COVER, SUPPL Y WIRES AND FAN WIRES OMITTED FOR CLARITY. Carefully lift the Fan and seat the Hanger Ball/ Downrod Assembly on the Hanger Bracket that was just attached to the Outlet Box (Figure 12).
-
Page 11: How To Wire Your Ceiling Fan
Hanger Bracket Green Ground Wire to the Supply Ground accessories not designated for use with this product Conductor (this may be a bare wire or wire with green colored by Luminance Brands could result in personal injury or property damage. insulation). Securely connect Wires with Wire Connectors (supplied) (Figure 13). - Page 12 5. How to Wire Your Ceiling Fan (Continued) NOTE: CEILING COVER OMITTED FOR CLARITY. Securely connect the Fan Motor Black Wire and Blue Wire to the Supply Black (hot) Wire using Wire Connector (supplied) (Figure 15). FAN MOTOR BLACK WIRE SUPPLY BLACK (HOT) WIRE...
-
Page 13: Final Assembly
6. Final Assembly NOTE: CEILING COVER OMITTED FOR CLARITY. Screw the Two Threaded Studs (supplied) into the Tapped Holes in the Hanger Bracket (Figure 17). THREADED STUDS (2) Figure 17 Lift the Ceiling Cover up to the Threaded Studs and turn until Studs protrude through the Holes in the Ceiling Cover (Figure 18). -
Page 14: Using Your Ceiling Fan
7. Using Your Ceiling Fan Restore Electrical Power to the Outlet Box by turning the Electricity on at the Main Fuse Box or Circuit Breaker Panel. Check the operation of the Fan by gently pulling on the Pull Chain Switch. During Summer Months: Run the Fan Counter-Clockwise, as you look up at it, to direct airflow downward. -
Page 15: Maintenance
Luminance Brands. Substitution of parts or accessories not designated for use with this product • Downrod Extension Kits by Luminance Brands could result in personal injury or property damage. WARNING The use of any other control not specifically approved for this fan could result in fire, shock and personal injury. -
Page 16: Repair Parts
11. Repair Parts PARTS BAG U.L. Model No.: CF742PF... - Page 17 11. Repair Parts Listing Part Numbers Model No. Model No. Description CF742PFORB01 CF742PFWW01 Hanger Ball Assembly, Consisting of: 760750-36 760750-3 Hanger Bracket (1) — — Hanger Ball (1) — — 3.5” Downrod (1) — — Ceiling Cover (1) 760169-24 760169 Blade Sets (5) 762022-1 762022...
-
Page 18: Troubleshooting
12. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1. Reverse switch in neutral position. 1. Make sure reverse switch position is all the way to one side. -
Page 19: Ceiling Fan Limited Warranty
What We Will Do To Correct Problems: If the defect is covered by this limited warranty, Luminance Brands will repair or replace the applicable Luminance Brands Ceiling Fan Product at no charge to You. If repair of the Luminance Brands Ceiling Fan Product is not practical or possible within a reasonable time and no replacement Luminance Brands Ceiling Fan Product can be provided, Luminance Brands will refund You the actual purchase price of Your Luminance Brands Ceiling Fan Product. - Page 20 SERIAL NUMBER: DATE CODE: The serial number of this fan can be found on the nameplate on top of the fan housing. The date code can be found on the carton and on top of the fan housing, stamped in ink on a white label. You should record this data above and keep it in a safe place for future use.
