Luminance Brands kathy ireland HOME Batalie Breeze CF621VNB00 Owner's Manual

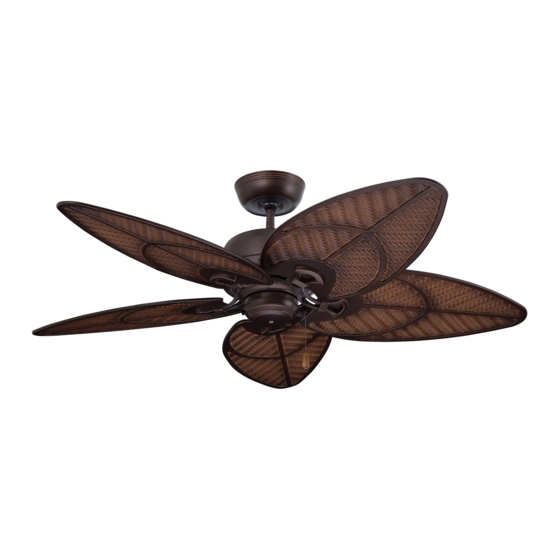

52” wet location ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ AND SAVE THESE INSTRUCTIONS
Ceiling Fan Owner's Manual
CF621VNB00 -
CF621SW00 -
Questions, problems, missing parts: Before returning to the store, Call Customer Service
Part No. F40BP74770002
Revision: 02152021
BATALIE BREEZE
52" Wet Location
Model Numbers
Net Weight:
1-800-777-4440
Venetian Bronze
Satin White
26.5
Lbs.
Form No. BP7477-2
U.L. Model No.: CF621

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the kathy ireland HOME Batalie Breeze CF621VNB00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luminance Brands kathy ireland HOME Batalie Breeze CF621VNB00

Summary of Contents for Luminance Brands kathy ireland HOME Batalie Breeze CF621VNB00

  • Page 1 READ AND SAVE THESE INSTRUCTIONS BATALIE BREEZE 52” Wet Location Ceiling Fan Owner’s Manual Model Numbers CF621VNB00 - Venetian Bronze CF621SW00 - Satin White 26.5 Net Weight: Lbs. Questions, problems, missing parts: Before returning to the store, Call Customer Service 1-800-777-4440 Part No.

  • Page 2: Table Of Contents

    Electrical installation should be made or accessories not designated for use with this product approved by a licensed electrician. by Luminance Brands could result in personal injury or property damage. 3. The outlet box and joist must be securely mounted To reduce the risk of personal injury, do not bend and capable of reliably supporting at least 50 pounds.

  • Page 3: Unpacking Instructions

    Luminance Brands. Substitution of parts or accessories not designated for use with this product Switch Housing Assembly by Luminance Brands could result in personal injury or property damage. Open carton containing fan . Remove top half of styrofoam unit . Remove parts and check to see that you...

  • Page 4: Electrical Requirements

    1. Unpacking Instructions (Continued) THIS FAN IS SUITABLE FOR WET LOCATIONS SUCH AS PORCHES, PATIOS, AND DECKS. This Manual Is Designed to Make it as Easy as Possible for You to Assemble, Install, Operate and Maintain Your Ceiling Fan Tools Needed for Assembly WARNING One Phillips Head Screwdriver One Stepladder...

  • Page 5: Ceiling Fan Assembly

    3. Ceiling Fan Assembly GREEN GROUND WIRE Remove the Hanger Ball by loosening the Phillips Head Set Screw in the Hanger Ball until the Ball falls freely down the Downrod (Figure 1) . Remove the Pin from the 4 .5” Downrod, then remove 4.5"...
  • Page 6 3. Ceiling Fan Assembly (Continued) Loosen the Two Phillips Head Set Screws in the 4.5" DOWNROD Motor Coupler for installation of the Downrod (Figure 3) . LOOSEN PHILLIPS HEAD Seat the Downrod in the Motor Coupler (Figure 3) . UPPER SET SCREWS (2) Rotate and align the Downrod Holes with the Two Holes in the Motor Coupler (Figure 3) .
  • Page 7 3. Ceiling Fan Assembly (Continued) Make sure the Grommet is properly installed in the GROMMET Coupler Cover, then slide the Coupler Cover on the Downrod until it rests on the Motor Housing (Figure 6) . COUPLER COVER DOWNROD MOTOR COUPLER SET SCREW (2) Figure 6 Place the Ceiling Cover over the Downrod (Figure 7) .
  • Page 8 3. Ceiling Fan Assembly (Continued) The Fan comes with Blue, Black and White Wires that are 80” long . Measure up approximately 6 to 9-inches above top of 6 to 9 INCH Hanger Ball / 4 .5” Downrod Assembly (Figure 9) . INCHES Cut off excess Wires and strip back Insulation 1/2-inch from end of Wires .
  • Page 9 3. Ceiling Fan Assembly (Continued) 3.12 Mount Blade Flanges to Fan Blades using Four #10 - 24 x 12mm #10 - 24 x 12mm Washer Head Screws and Four WASHER HEAD SCREW (4 per blade/flange) 16mm Flat Washers (supplied with fan) (Figure 12) . 16mm FLAT WASHER (4 per blade/flange) FAN BLADE...
  • Page 10 3. Ceiling Fan Assembly (Continued) 3.15 Position the Lower Housing onto the Fan Motor LOWER HOUSING LOOSEN TWO #8 - 32 x 8mm PAN HEAD SCREWS Assembly, aligning each of the the Three Holes . LOWER HOUSING REMOVE ONE #8 - 32 x ADAPTER PLATE Rotate the Lower Housing to engage the Two Loosened 8mm PAN HEAD SCREW...
  • Page 11 3. Ceiling Fan Assembly (Continued) 3.17 SWITCH HOUSING To Assemble the Switch Housing Assembly to the ASSEMBLY Lower Housing: REMOVE AND RETAIN #8-32 x 8mm FLAT Remove the Three #8 - 32 x 8mm Flat Head Screws HEAD SCREWS (3) from the Switch Housing Assembly (retain screws for later use) (Figure 17) .

  • Page 12: How To Hang Your Ceiling Fan

    CAUTION CEILING To reduce the risk of injury, install the fan so that the blades are at least 7 ft. (2.1m) above the floor (Figure 19). WARNING Turning off wall switch is not sufficient. To avoid AT LEAST possible electrical shock, be sure electricity is turned off at the main fuse box or circuit breaker panel before wiring.
  • Page 13 Securely attach the Hanger Bracket to the Outlet Box using the Two Screws supplied with the Outlet Box . (Figure 21) . OUTLET TWO SCREWS SUPPLIED WITH OUTLET BOX HANGER BRACKET ANTI-ROTATION TAB Figure 21 NOTE: SUPPLY WIRES AND FAN WIRES OMITTED Carefully lift the Fan and seat the Hanger Ball/ FOR CLARITY.

  • Page 14: How To Wire Your Ceiling Fan

    WARNING This product is designed to use only those parts NOTE: If you are using an Luminance Brands Light supplied with this product and/or any accessories Fixture with your fan, see Light Fixture Owner’s designated specifically for use with this product Manual for wiring.
  • Page 15 5. How to Wire Your Ceiling Fan (Continued) Securely connect the Fan Motor Black Wire and Blue Wires to the Supply Black (hot) Wire using Wire Connector (supplied) (Figure 25) . SUPPLY BLACK (HOT) FAN MOTOR BLACK WIRE LISTED WIRE CONNECTOR FAN MOTOR BLUE WIRE...

  • Page 16: Final Assembly

    6. Final Assembly Screw the Two Threaded Studs (supplied) into the Tapped Holes in the Hanger Bracket (Figure 27) . THREADED STUDS (2) Figure 27 Lift the Ceiling Cover up to the Threaded Studs and turn until Studs protrude through the Holes in the Ceiling Cover (Figure 28) .

  • Page 17: Using Your Ceiling Fan

    7. Using Your Ceiling Fan Restore Electrical Power to the Outlet Box by turning the Electricity on at the Main Fuse Box or Circuit Breaker Panel . Check the operation of the Fan by gently pulling on the Pull Chain Switch . During Summer Months, run the Fan Counter- Clockwise, as you look up at it, to direct airflow downward .

  • Page 18: Energy Efficient Use Of Ceiling Fan

    8 - 9 feet above the floor for optimal air near the ceiling down into the occupied space . airflow . Consult your Luminance Brands Retailer for Remember to adjust your thermostat when using your optional mounting accessories .

  • Page 19: Maintenance

    Luminance Brands. Substitution of parts or accessories not designated for use with this product • Downrod Extension Kits by Luminance Brands could result in personal injury or property damage. WARNING The use of any other control not specifically approved for this fan could result in fire, shock and personal injury.

  • Page 20: Repair Parts

    11. Repair Parts PARTS BAG U.L. Model No.: CF621...
  • Page 21 11. Repair Parts Listing Part Numbers Model No. Model No. Description CF621VNB00 CF621SW00 Hanger Ball Assembly Consisting of: 761655-89 761655-92 Hanger Bracket (1) — — Hanger Ball (1) — — Downrod (4.5”) (1) — — Parts Bag Containing: 764208 764208-1 Pin, Clevis (1) —...

  • Page 22: Troubleshooting

    12. Troubleshooting WARNING FOR YOUR OWN SAFETY TURN OFF POWER AT MAIN FUSE BOX OR CIRCUIT BREAKER PANEL BEFORE TROUBLESHOOTING YOUR FAN. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not start. 1 . Fuse or circuit breaker blown . 1 .

  • Page 23: Ceiling Fan Limited Warranty

    What We Will Do To Correct Problems: If the defect is covered by this limited warranty, Luminance Brands will repair or replace the applicable Luminance Brands Ceiling Fan Product at no charge to You. If repair of the Luminance Brands Ceiling Fan Product is not practical or possible within a reasonable time and no replacement Luminance Brands Ceiling Fan Product can be provided, Luminance Brands will refund You the actual purchase price of Your Luminance Brands Ceiling Fan Product.
  • Page 24 SERIAL NUMBER: DATE CODE: The serial number of this fan can be found on the nameplate on top of the fan housing . The date code can be found on the carton and on top of the fan housing, stamped in ink on a white label . You should record this data above and keep it in a safe place for future use .

This manual is also suitable for:

Kathy ireland home batalie breeze cf621sw00
