Summary of Contents for Hikmicro E1L

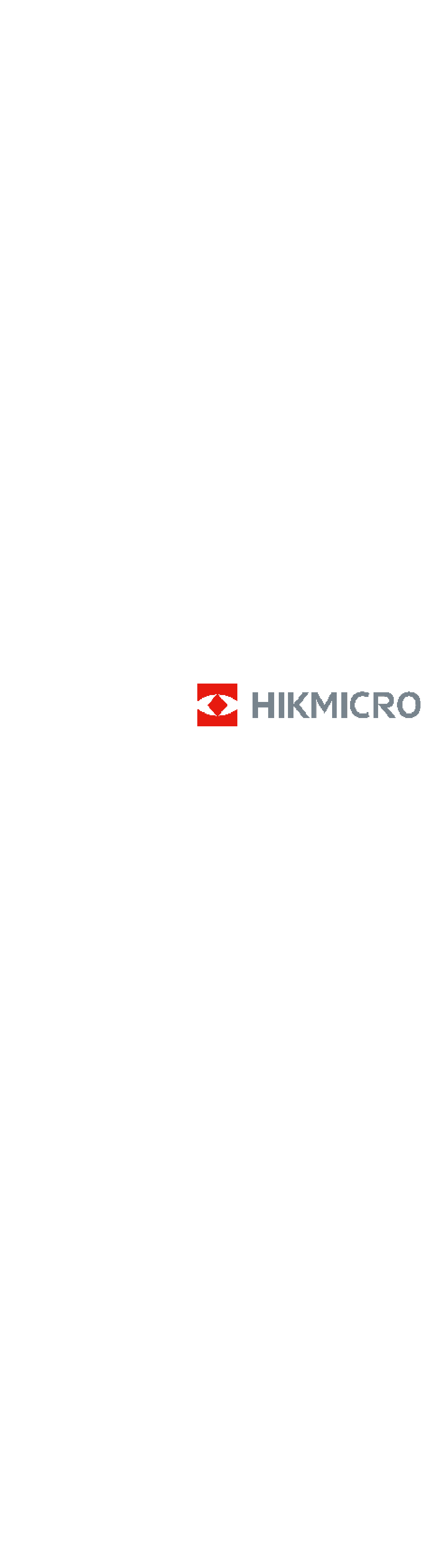

- Page 1 Handheld Thermography Camera User Manual...
- Page 2 The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website (www.hikmicrotech.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
- Page 3 Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 4 This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations.
- Page 5 ● The device is suitable for indoor and outdoor uses, but do not expose it in wet conditions. ● The level of protection is IP 54. ● The pollution degree is 2. Emergency If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center.
-
Page 6: Box Content
Note: The Handheld Thermography Camera includes one battery and one Micro SD card. 1.2 Product Introduction HM-TP31-3AUF-E1L handheld Thermography camera is a camera with thermal images. It can do thermometry, and snapshot capturing. The built-in high-sensitivity IR detector and high-performance sensor detects the temperature change and measure the real-time temperature. - Page 7 2 Appearance 2.1 Dimensions 59mm(2.32") 78mm(3.07") The dimension may vary according to different camera model. 2.2 Interfaces Screen Charging Indicator Back On/OK/Menu Navigation Hold: Power On/Off Press: Display menu or confirm operation Exit the menu or return to previous menu. Navigation Button Press the ▽, △button to select parameters.
-
Page 8: Basic Operations
Cover USB Interface Micro SD Slot Laser Tripod IR Lens Interface Trigger The warning sign is under and on the left of the laser. Charging When the device is charging, Indicator the LED indicator is red. When the device is fully charged, the LED indicator is green. -
Page 9: Interface Description
Note: For the first charge, charge the device for 48 to 72 hours when the device is turned on. 3.2 Interface Description Unit Status Icons Max. Temperature Display Real-time Center Temperature Color- Center Temperature Temperature Display Scale Real-time Temperature Min. Temperature Display Emissivity 3.3 Format Micro SD Card... -
Page 10: Export File
(Optional) Press button to delete picture in picture view interface. 3.6 Export File Purpose: Connect the handheld Thermography camera to your PC with USB cable, you can export the captured snapshots. Steps: Open the USB cover. Connect the camera to your PC with USB cable and open the detected disk. -
Page 11: Other Configurations
Press button to go to the setting interface. Emissivity: Set the emissivity of your target as the effectiveness in emitting energy as thermal radiation. Note: Refer to the 6.1 Common Material Emissivity Reference for emissivity values. Temperature: Set the average ... -
Page 12: Common Material Emissivity Reference
6 Appendix 6.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 0.91 Cement Concrete 0.95 Ceramics 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Asphalt 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cotton 0.98 Cardboard 0.90 White Paper 0.90 Water 0.96 6.2 Frequently Asked Questions (FAQ)
