TS1000 Pro Series Tripod Turnstile

Cabling

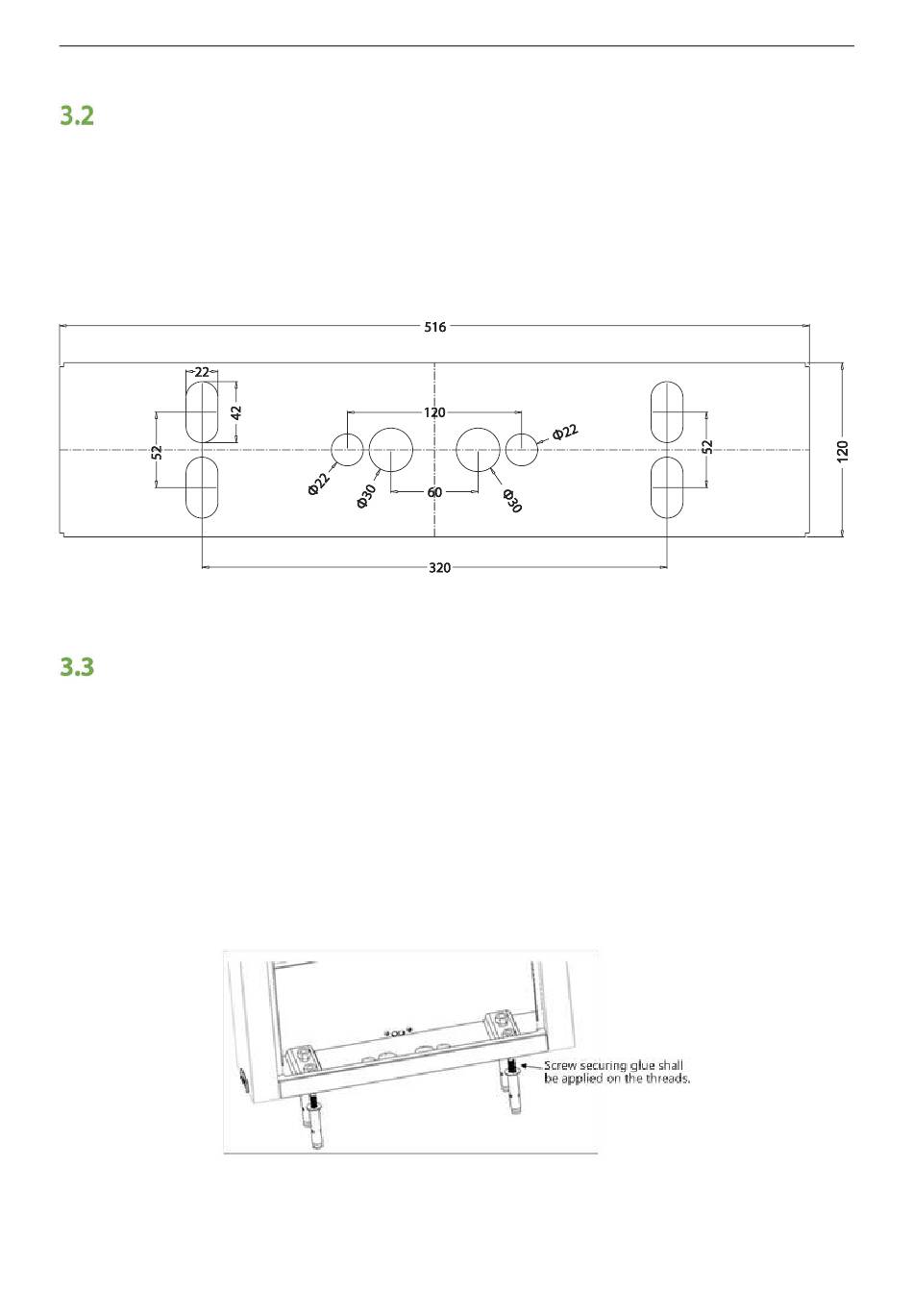

There are inlets in the bottom plate for cabling, as shown in Figure 3-3. Units of all data is millimeter.
Power supply and communication wire should go through the inlet. Cable protection covers are
suggested to use if it is surface mounted.
Warning: The tripod turnstile must be connected to the ground (earth); there is wiring interface near the
power switch.

Installation

1. Drill holes.
Drill holes according to the locations of holes as shown in Figure 3-3.
2. Fix the mounting plate to its original position.
Place the mounting plate properly, then apply screw securing glue on the surface and threads of the
expansion bolts, install four expansion bolts to secure the mounting plate, and use a horizontal ruler to
test the levelness of the mounting plate. If the mounting plate is not levelled, adjust it with the gaskets
provided. Note that all the four expansion bolts must be installed properly, as shown in Figure 3-4.
| 10
P a g e
Figure 3-3
Figure 3-4
