Video power supply
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

DIGITAL
CALL SYSTEM
VIDEO POWER SUPPLY
ref no. 1752/20D
27.08.2015r.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATIBUS 1752/20D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for urmet domus MATIBUS 1752/20D

Summary of Contents for urmet domus MATIBUS 1752/20D

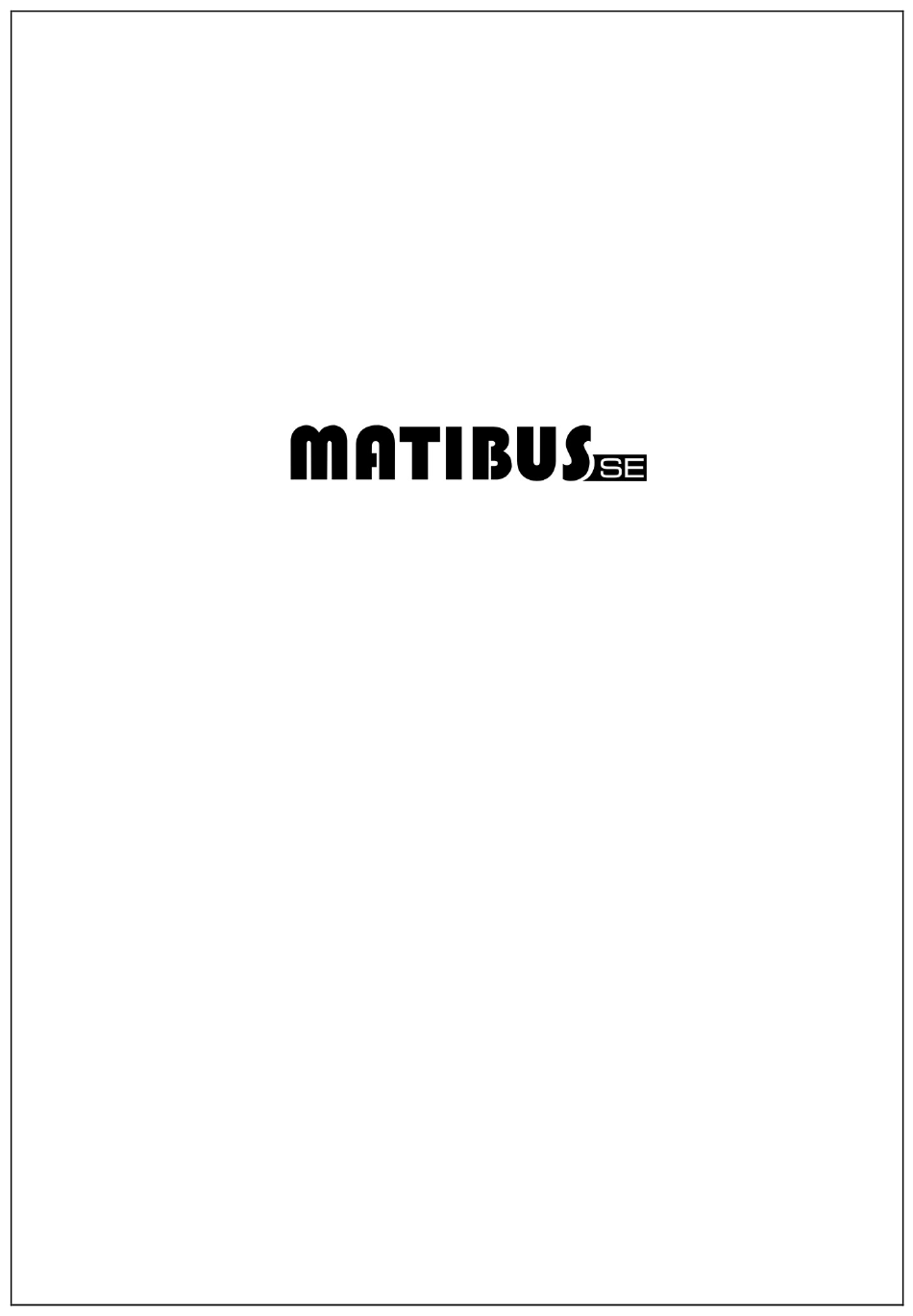

  • Page 1 DIGITAL CALL SYSTEM VIDEO POWER SUPPLY ref no. 1752/20D 27.08.2015r.

  • Page 2: General Informations

    POWER SUPPLY REF. NO. 1752/20D GENERAL INFORMATIONS / USER MANUAL VIDEO POWER SUPPLY REF. NO 1752/20D MAG GL RJ45 connector – output of main bus data RJ45 connector – input of secondary bus data from power supply ref. no. 1052/31R…33R RJ45 connector –...
  • Page 3 POWER SUPPLY REF. NO. 1752/20D ASSEMBLY AND CONNECTIONS INSTRUCTIONS FOR CONNECTIONS The list of connectors, wires colors and their RJ45 connectors on the both sides of wires should be corresponding pins shown in the table below: installed on T-568 standard. The list of wires colors and their corresponding pin standard T-568 shown in the figure below: Connectors LU1 i LU2 (RJ12).

  • Page 4: Montage

    POWER SUPPLY REF. NO. 1752/20D ASSEMBLY AND CONNECTIONS Connectors WE GL (RJ45). Connectors P1, P2 i P3 (RJ45). Color Designation Description Color Designation Description Video signal. Orange-white Not connected Orange-white Line B twisted Orange Not connected pair Ground line of Video signal.

  • Page 5: Electrical Connections

    POWER SUPPLY REF. NO. 1752/20D ASSEMBLY AND CONNECTIONS ELECTRICAL CONNECTIONS Electrical connections should be performed by a person with knowledge of the basic issues of electrical engineering. All connections should be made in accordance with the attached schedule, with disconnected power supply.
  • Page 6 POWER SUPPLY REF. NO. 1752/20D DOORPHONE SYSTEM IN MASTER / SLAVE CONNECTION WITH POWER SUPPLY 1752/20D do następnych Dysdeków OUT C OUT D UTP KAT 5E UTP KAT 5E RISER OUT PRZYCISK DZWONKA LOKALNEGO PRZYCISK DZWONKA LOKALNEGO PRZYCISK DZWONKA LOKALNEGO PRZYCISK DZWONKA LOKALNEGO NIEBIESKI BRĄZOWO-BIAŁY...
  • Page 7 ZASILACZ NR REF. 1752/20D WAY TRANSMISION OF SIGNAL VIDEO IN THE SYSTEM W yb ie rz n um e r lo ka lu Wybi e rz n um er l o kal u Wybie rz num e r lo ka lu Wybi e rz n um er l o kal u W yb ier z n um er loka lu Wybi e rz nu m er l o kal u...
  • Page 8 MIWI-URMET sp. z o. o. ul. Pojezierska 90A 91-341 Łódź tel: (0-42) 616-21-00 fax: (0-42) 616-21-13 e-mail: miwi@miwiurmet.com.pl http:/www.miwiurmet.pl...
