Remote I/O

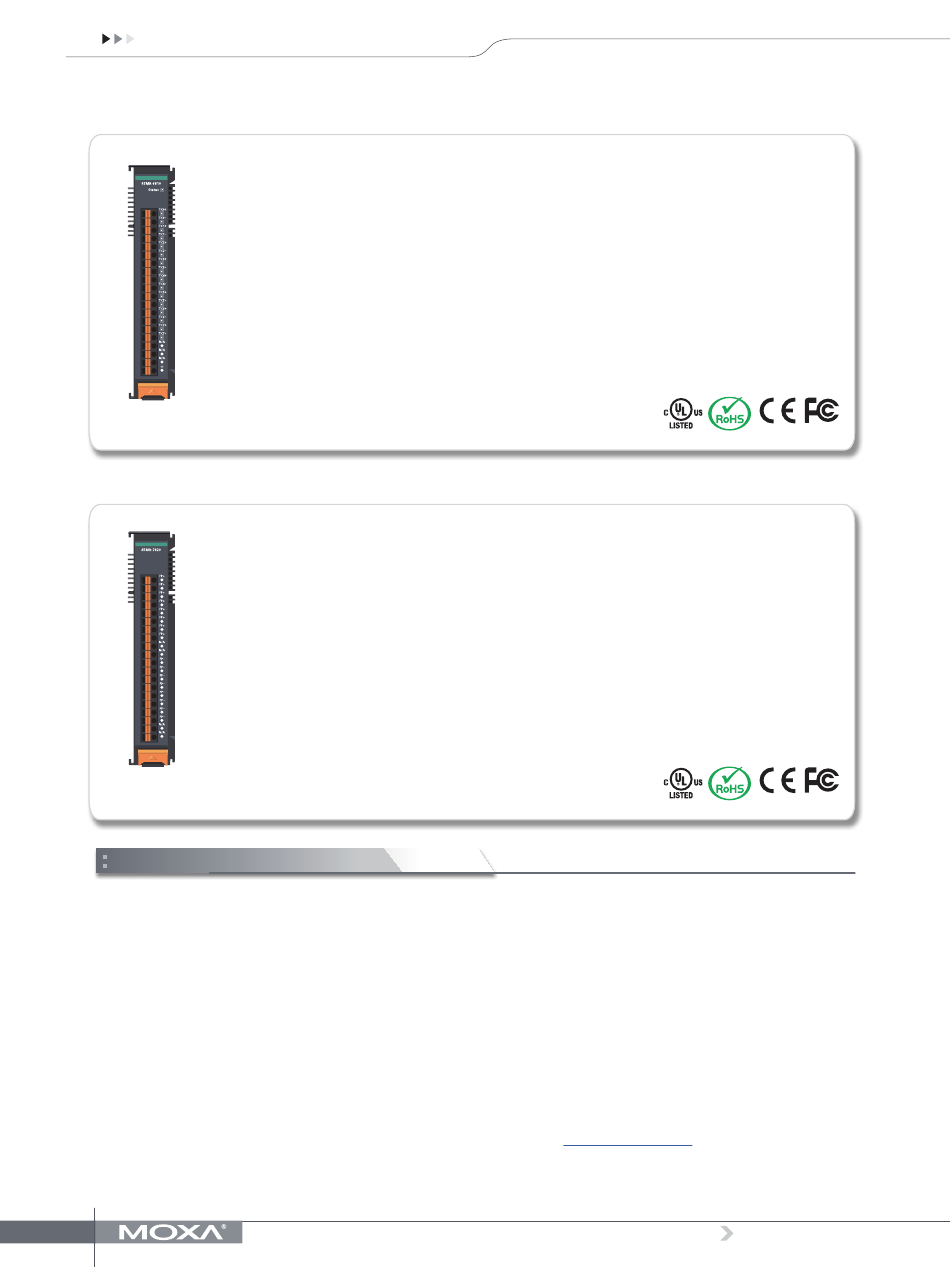

45MR-6810: Module for ioThinx 4500 Series, 8 TCs
Inputs and Outputs
Thermocouples: 8 channels
Isolation: 3k VDC or 2k Vrms
Thermocouple
Sensor Type: J (0 to 750°C), K (-200 to 1250°C),
T (-200 to 350°C), E (-200 to 900°C), R (-50 to
1600°C), S (-50 to 1760°C), B (600 to 1700°C),
N (-200 to 1300°C)
Millivolt Type:
Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV
Resolution: 16 bits
Accuracy:
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate:
• All channels: 12 samples/sec
• Per channel: 1.5 samples/sec
45MR-7820: Module for ioThinx 4500 Series, potential distributor module
Power Parameters
Mode: 0 VDC, 12/24 VDC
Channels: 8
Physical Characteristics
Weight: 73.6 g (0.163 lb)
MTBF (mean time between failures)
Time: 256,886,914 hrs
Standard: Telcordia SR332

Common Specifications

Environmental Limits
Operating Temperature:
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
Altitude: Up to 4000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.
Standards and Certifications
EMC: EN 55032, EN 55024, EN 61000-3-2/3-3
EMI: CISPR 32, FCC Part 15B Class A
9
Input Impedance: 1 mega-ohms (min.)
Physical Characteristics
Weight: 78.4 g (0.173 lb)
(Max.)
Power Consumption
System Power: 148.1 mA @ 3.3 VDC
MTBF (mean time between failures)
Time: 1,649,892 hrs
Standard: Telcordia SR332
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Green Product: RoHS, CRoHS, WEEE
Physical Characteristics
Wiring: 18 to 24 AWG
Strip Length: 9 to 10 mm
Dimensions: 19.5 x 99 x 60.5 mm (0.77 x 3.9 x 2.38 in)
Mounting: DIN-rail
Warranty
Warranty Period: 5 years (excluding the 45MR-2404)
Details: See www.moxa.com/warranty
Note: Because of the limited lifetime of power relays, products that use this
component are covered by a 2-year warranty.
