Remote I/O

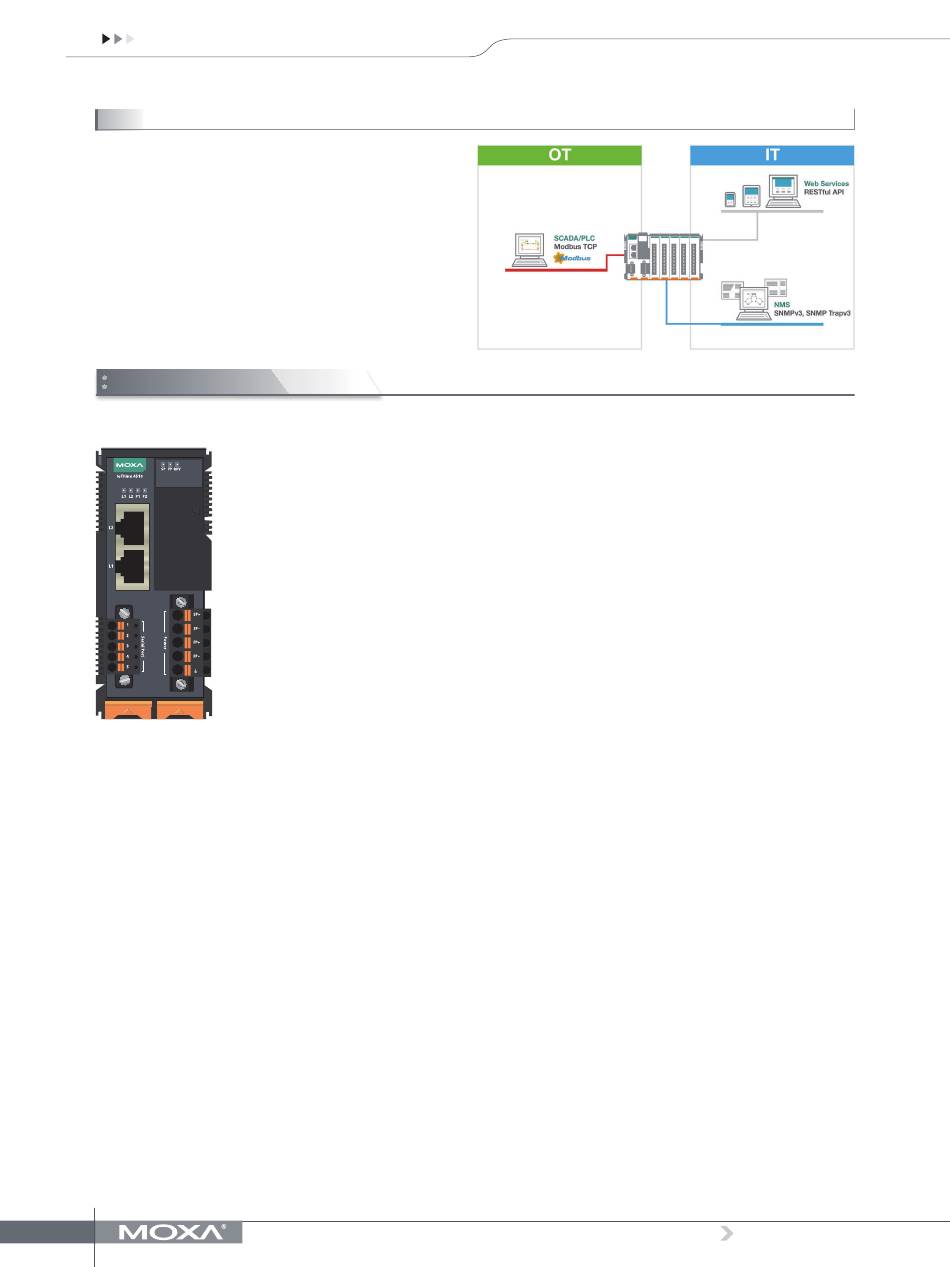

I/O to IT/OT Protocol Conversion
The ioThinx 4510 does just what you need by supporting the most
often-used protocols for retrieving I/O data. Most IT engineers use
SNMPv1/v2c/v3 or RESTful API protocols, but IA engineers are
more familiar with Operational Technologies (OT), such as Modbus.
The ioThinx 4510 makes it possible for both IT and OT engineers
to conveniently retrieve data from the same I/O device. The ioThinx
4510 speaks several different protocols, including Modbus TCP for
OT engineers, as well as SNMP and RESTful API for IT engineers. The
ioThinx 4510 retrieves I/O data and converts the data to any of these
protocols, allowing you to get your applications connected easily and
effortlessly.

Specifications

ioThinx 4510: Advanced I/O, Ethernet network adapter, 3-in-1 serial port(s)
Input/Output Interface
Buttons: Reset button
Expansion Slots: Up to 32
Note: Compatible with 45MR Series only
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2
Note: 1 MAC address
Protection: 1.5 kV magnetic isolation
Ethernet Software Features
Industrial Protocols: Modbus TCP Server (Slave), RESTful API,
SNMPv1/v2c/v3
Serial Interface
Serial Standards: 1 x RS-232/422 or 2 x RS-485 (2-wire)
Connector: Spring-type Euroblock terminal
Wiring: 16 to 28 AWG
Strip Length: 9 to 10 mm
Serial Communication Parameters
Parity: None, Even, Odd
Data Bits: 8
Stop Bits: 1, 2
Flow Control: RTS/CTS
Baudrate: 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600,
115200 bps
3
Serial Signals
RS-232: TxD, RxD, RTS, CTS, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Serial Software Features
Industrial Protocols: Modbus RTU Client (master)
System Power Parameters
Power Input: 12 to 48 VDC
Wiring: 12 to 26 AWG
Strip Length: 12 to 13 mm
Power Consumption (Max.): 800 mA @ 12 V
Output Current: Max. 1 A
Over-Voltage Protection: 55 VDC
Overload Protection: 1 A @ 25°C
Connection: Removable terminal block
Field Power Parameters
Power Input: 12/24 VDC
Wiring: 12 to 26 AWG
Strip Length: 12 to 13 mm
Output Current: Max. 2 A
Over-Voltage Protection: 33 VDC
Overload Protection: 2.5 A @ 25°C
Connection: Removable terminal block
Isolation
System Power to I/O Driver: 3k VDC or 2k Vrms
System Power to Field Power: 3k VDC or 2k Vrms
MTBF (mean time between failures)
Time: 1,451,040 hrs
Standards: Telcordia SR332
Physical Characteristics
Dimensions: 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in)
Weight: 173.5 g (0.382 lb)
Mounting: DIN-rail
Standards and Certifications
EMC: EN 55032, EN 55024, EN 61000-3-2/3-3
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Green Product: RoHS, CRoHS, WEEE
